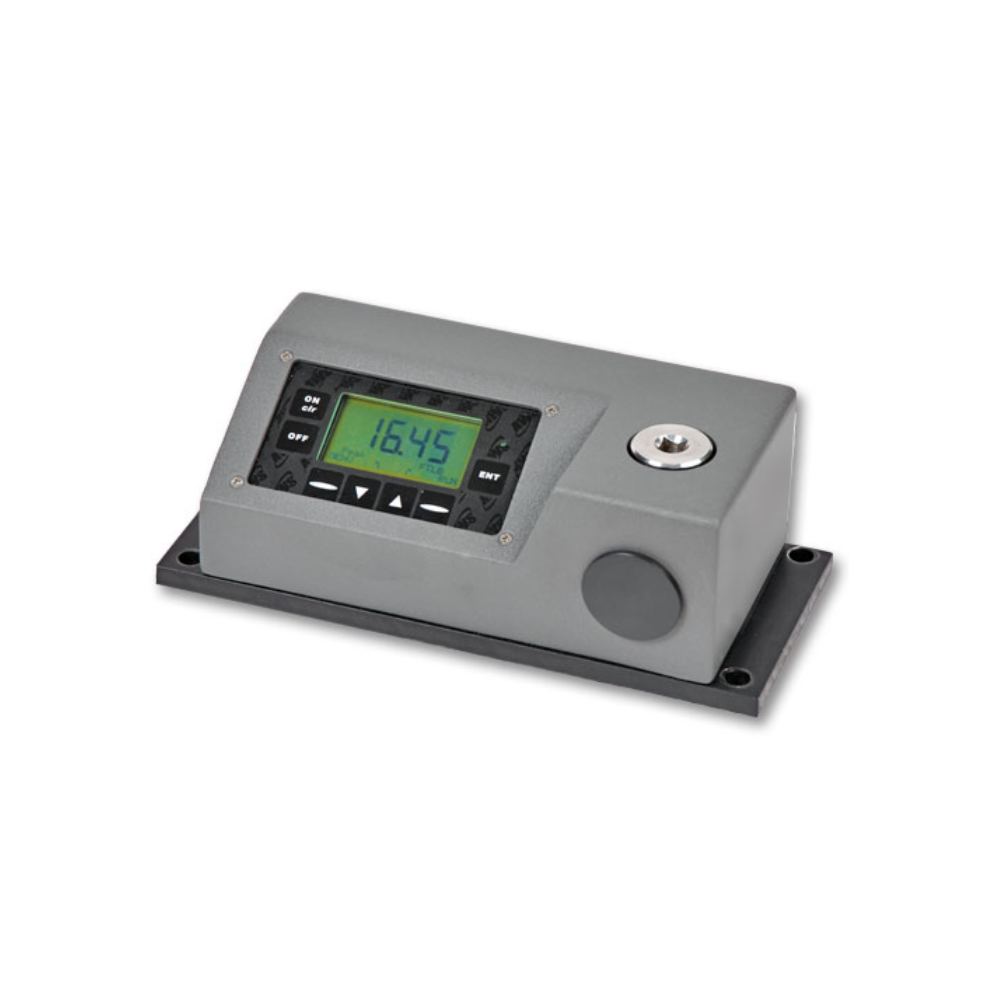

TT-3000 Torque Analyzers are designed for the needs of today’s production facilities. These powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing screwdrivers, click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.
Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. The unique keylock feature enables tamper-proof operation. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations and rundown fixtures for power/pulse tool testing.
Torque Ranges
| Model | Range | Drıve Sıze | Run-Down Fıxture |
|---|---|---|---|
| TT-30010* |
1 – 10 ozf-in
|
1/4″ | Included |
| TT-30050 |
5 – 50 ozf-in
|
1/4″ | Included |
| TT-3001 |
10 – 100 ozf-in
|
1/4″ | Included |
| TT-3011 |
1 – 10 lbf-in
|
1/4″ | Included |
| TT-3002 |
20 – 200 ozf-in
|
1/4″ | Included |
| TT-3012 |
2.5 – 25 lbf-in
|
1/4″ | Included |
| TT-3005 |
5 – 50 lbf-in
|
1/4″ | Included |
| TT-3010 |
10 – 100 lbf-in
|
1/4″ | Included |
| TT-3015 |
15 – 150 lbf-in
|
1/4″ | Included |
| TT-3025 |
25 – 250 lbf-in
|
3/8″ | Included |
| TT-3050 |
50 – 500 lbf-in
|
3/8″ | Included |
| TT-3075 |
75 – 750 lbf-in
|
3/8″ | Included |
| TT-30100 |
100 – 1000 lbf-in
|
3/8″ | Included |
| TT-3100 |
10 – 100 lbf-ft
|
1/2″ | Optional |
| TT-3150 |
15 – 150 lbf-ft
|
1/2″ | Optional |
| TT-3250 |
25 – 250 lbf-ft
|
1/2″ | Optional |
| TT-3750 |
75 – 750 lbf-ft
|
3/4″ | Optional |
*TT-30010 accuracy is +/-1% from 10-100% of capacity

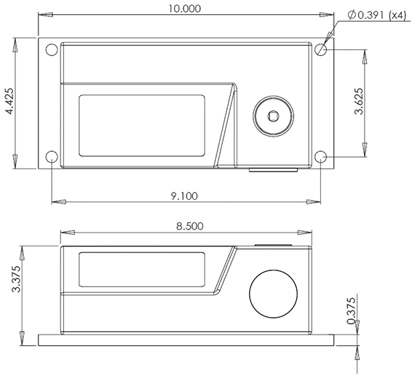

Dimensions
