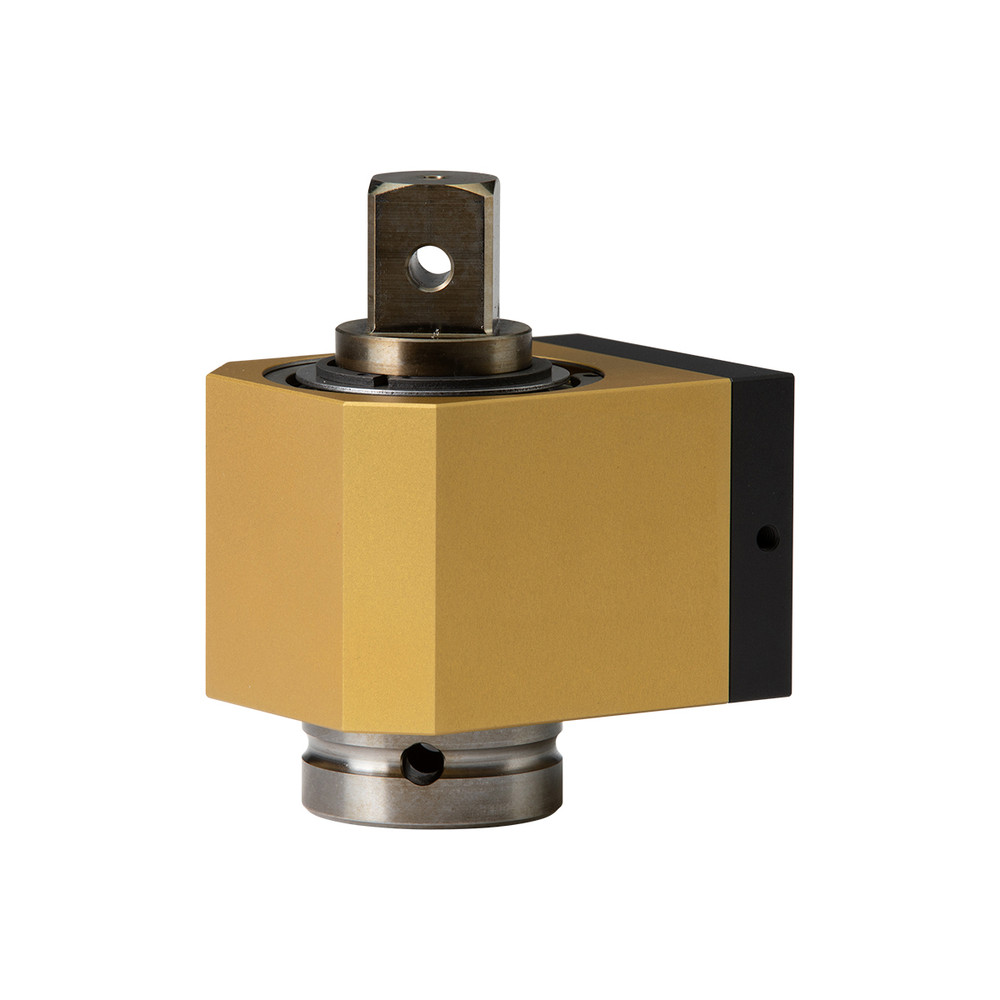

RTSX738F
ROTARY TORQUE SENSOR

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

SPECS

SPEC
Model: RTSX738F
Item #: 170211
American: 74 – 738 lbf.ft
S.I.: 100 – 1000 N.m
Metric: 10.2 – 102.1 kgf.m
Input Drive: 1 F/Sq
Output Drive: 1 M/Sq
Tool Length: 4.4
Tool Width: 2.8
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Use torque sensor with most hand tools, power tools or rotational measurement applications.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Features ARC II technology, an instant auto-recognition system of the RTSX connected to the PTT or LTT.
  • Bi-directional.
