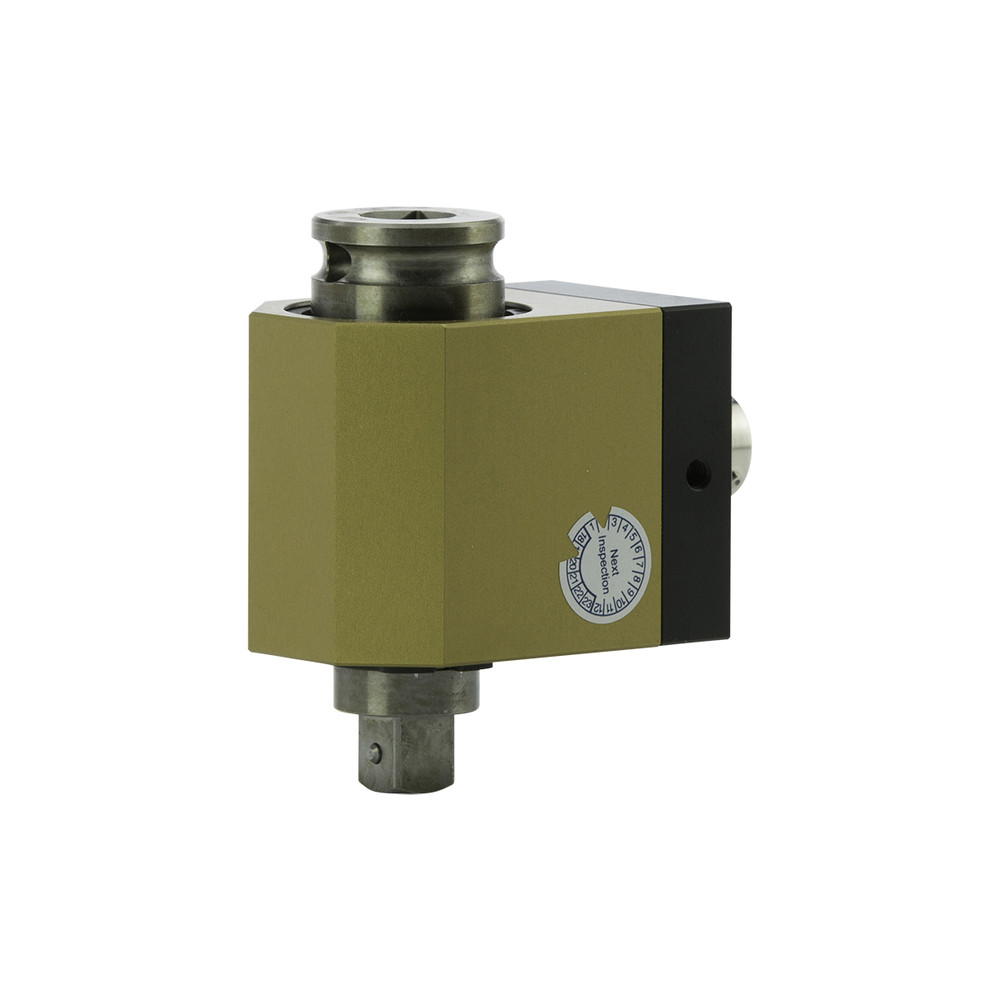

RTSX100F
ROTARY TORQUE SENSOR

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

SPECS

SPEC
Model: RTSX100F
Item #: 170209
American: 10 – 100 lbf.ft
S.I.: 13.6 – 135.6 N.m
Metric: 1.4 – 13.8 kgf.m
Input Drive: 1/2 F/Sq
Output Drive: 1/2 M/Sq
Tool Weigth: 0.87 lbs.
Tool Length: 3.1
Tool Width: 1.5
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • Use torque sensor with most hand tools, power tools or rotational measurement applications.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Features ARC II technology, an instant auto-recognition system of the RTSX connected to the PTT or LTT.
  • Bi-directional.
