Standard Ranges up to 10,000 Lb-ft, Custom Ranges up to 100,000 available

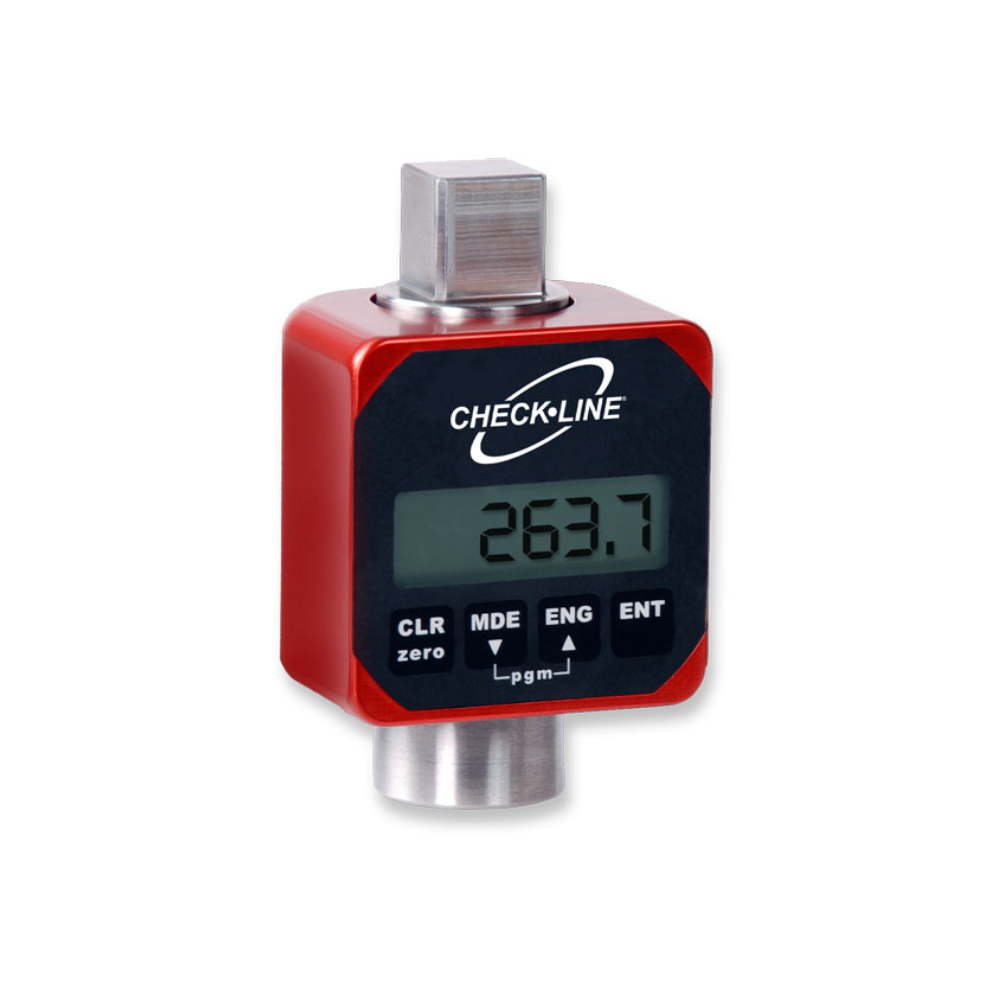

The versatile ILTT Inline Torque Tester converts any non-impacting tool into a complete torque measuring & analyzing system, simply insert the tester between the tool and what it’s driving and measure clockwise or counter-clockwise torque. The ILTT It can also be used for many other in-line torque measuring applications including measuring valve torque, actuator torque and more. Drive sizes can be custom built with splines, key-ways and other design features to suit your application. Contact us to review your needs.
Internal NiMH rechargeable batteries provide 8-10 hours of continuous use.
The ILTT features an easy-to-use menu allowing fast adjustment of test parameters and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as; Sign Lock, Peak Blanking and Auto Clear.
Not for use with Impact Tools.
Custom versions available, contact our team to review your application details.

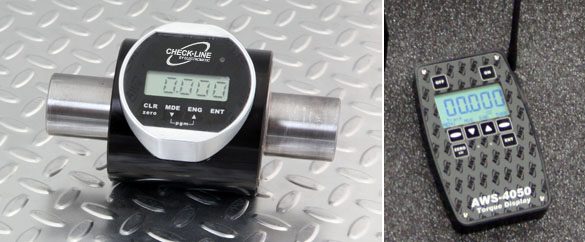

Available WIRELESS data output.
Torque Ranges
| Model | Range | Drive Size, Male Sq and Female Sq |
|---|---|---|
| ILTT-100i |
10 – 100 lbf-in
|
1/4″ |
| ILTT-250i |
25 – 250 lbf-in
|
3/8″ |
| ILTT-500i |
50 – 500 lbf-in
|
3/8″ |
| ILTT-100F |
10 – 100 lbf-ft
|
1/2″ |
| ILTT-150F |
15 – 150 lbf-ft
|
1/2″ |
| ILTT-250F |
25 – 250 lbf-ft
|
1/2″ |
| ILTT-600F |
60 – 600 lbf-ft
|
3/4″ |
| ILTT-750F |
75 – 750 lbf-ft
|
3/4″ |
| ILTT-1000F |
100 – 1000 lbf-ft
|
1″ |
| ILTT-2000F |
200 – 2000 lbf-ft
|
1 1/2″ |
| ILTT-3000F |
300 – 3000 lbf-ft
|
1 1/2″ |
| ILTT-5000F |
500 – 5000 lbf-ft
|
1 1/2″ |
| ILTT-6000F |
600 – 6000 lbf-ft
|
1 1/2″ |
| ILTT-10000F |
1000 – 10000 lbf-ft
|
2 1/2″ |
