4 Ranges up to 88 lb-in
Sample Diameters up to 7.5″ (190 mm)

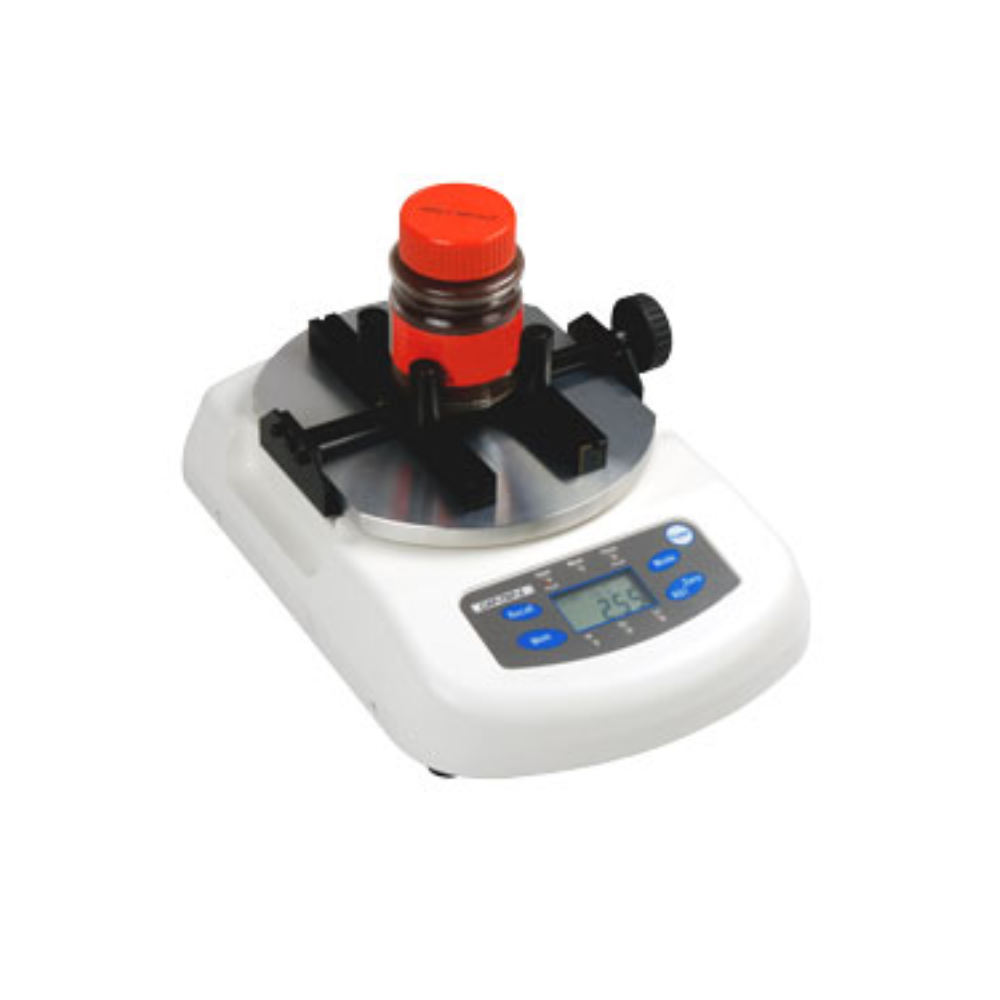

The new CAP-TNP torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.
The CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.
The CAP-TNP is a portable device powered with internal rechargeable batteries or through an AC Adpater/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.
The CAP-TNP includes free software to analyze your measurement data. The software is Windows 7 compatible and requires Microsoft Excel.
Torque Ranges
| Model | Capacity | Resolution |
| CAP-TNP-0.5 | 0-4.425 Lbf-in 0-0.500 Nm 0-50.00 Ncm 0-5099 gcm |
0.001 Lbf-in 0.001 Nm 0.01 Ncm 1 gcm |
| CAP-TNP-2 | 0-17.70 Lbf-in 0-2.000 Nm 0-200.0 Ncm 0-20.39 Kgcm |
0.01 Lbf-in 0.001 Nm 0.1 Ncm 0.01 Kgcm |
| CAP-TNP-5 | 0-44.25 Lbf-in 0-5.000 Nm 0-500.0 Ncm 0-50.99 Kgcm |
0.01 Lbf-in 0.001 Nm 0.1 Ncm 0.01 Kgcm |
| CAP-TNP-10 | 0-88.5 Lbf-in 0-10.00 Nm 0-1000 Ncm 0-102.0 Kgcm |
0.1 Lbf-in 0.01 Nm 1 Ncm 0.1 Kgcm |
Typical Torque Values (LB-IN)
| Cap dia. in mm |
Phenolic/ Urea Cap On Glass |
Phenolic/Urea Cap on Plastic |
PP/PE Cap on Glass |
PP/PE Cap on Plastic |
||||
| Close Torque | Open Torque | Close Torque | Open Torque | Close Torque | Open Torque | Close Torque | Open Torque | |
| 15 | 8 | 4 | 6 | 3 | 12 | 7 | 8 | 4 |
| 18 | 9 | 5 | 7 | 4 | 13 | 8 | 9 | 5 |
| 20 | 10 | 5 | 8 | 4 | 15 | 9 | 10 | 5 |
| 22 | 11 | 6 | 9 | 5 | 17 | 10 | 11 | 6 |
| 24 | 12 | 6 | 10 | 5 | 18 | 11 | 12 | 6 |
| 28 | 14 | 7 | 12 | 6 | 21 | 12 | 14 | 7 |
| 33 | 18 | 9 | 15 | 7 | 24 | 14 | 17 | 8 |
| 38 | 20 | 10 | 17 | 7 | 29 | 17 | 19 | 9 |
| 43 | 22 | 11 | 18 | 9 | 33 | 20 | 22 | 11 |
| 48 | 24 | 14 | 20 | 10 | 26 | 22 | 24 | 12 |
| 58 | 28 | 14 | 24 | 12 | 44 | 26 | 29 | 14 |
| 70 | 35 | 18 | 28 | 14 | 52 | 32 | 35 | 17 |
| 89 | 45 | 22 | 36 | 18 | 65 | 40 | 45 | 22 |
| 100 | 50 | 25 | 40 | 20 | 75 | 38 | 50 | 25 |
Dimensions
Complete Kit
CAP-TNP includes, tester, set of four – 1″ (30mm) gripping pegs, AC adapter, short-form calibration certificate, USB Cable with Software, and instruction manual
