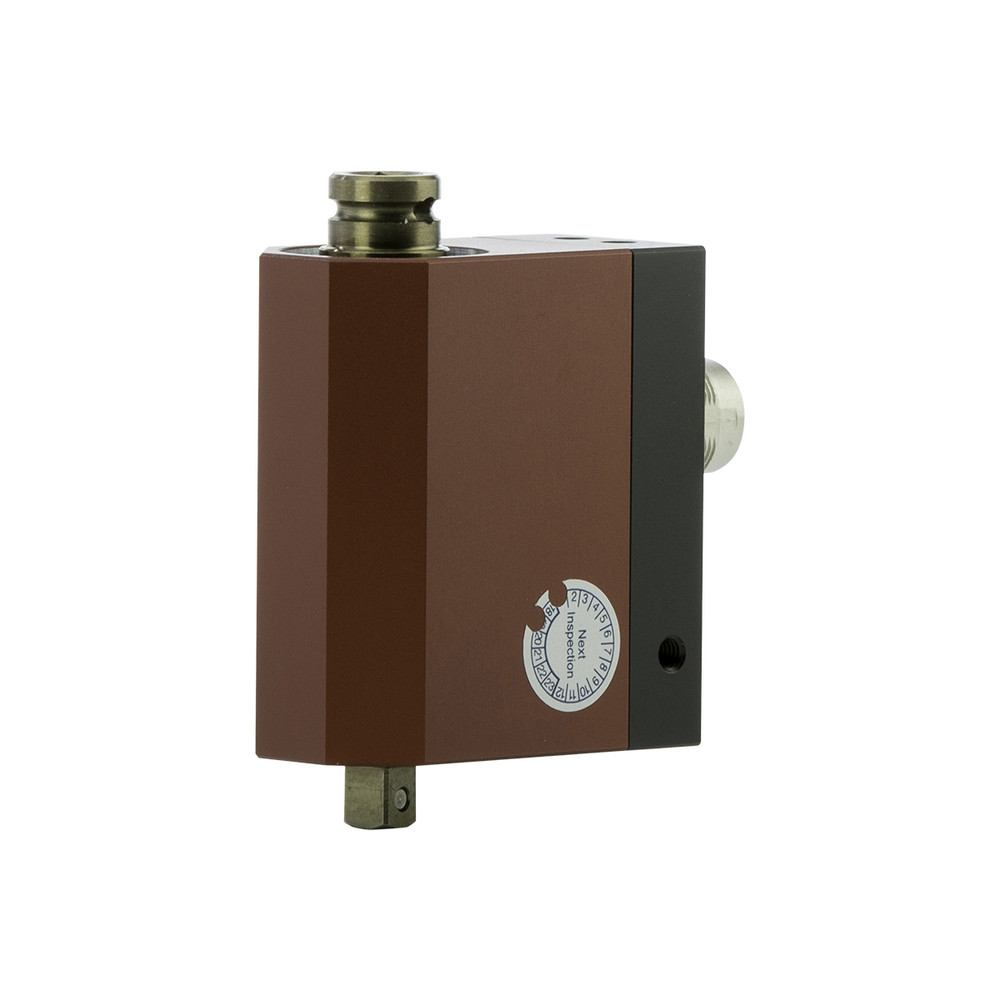

BLRTSX160i
BRUSHLESS ROTARY TORQUE SENSOR

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.
Accuracy ± .2% of full scale

SPECS

SPEC
Model: BLRTSX160i
Item #: 170234
American: 16 – 160 lbf.in
S.I.: 180 – 1807 cN.m
Metric: 18.4 – 184 kgf.cm
Input Drive: 1/4 F/Sq
Output Drive: 1/4 M/Sq
Tool Weigth: 0.59 lb.
Tool Length: 3
Tool Width: 1.1
Tool Height: 2
Cal Cert Options Data Set: Supplied with a Free ISO 17025 Certification of Calibration



TOOL BENEFITS

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance-free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
