SD-SERIES
SDC CONTROLLERS

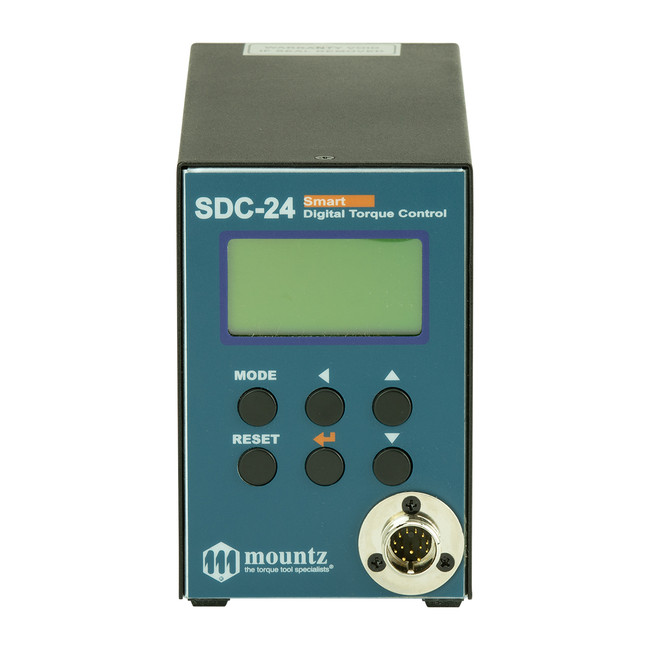

The SDC controller operates with only the SD-Series electric screwdrivers. It is a single tool controller that offers programmable speed, angle and soft start options. I/O interface for communication with external devices such as PLC.

MODEL ITEM NAME INPUT VAC OUTPUT VDC
SDC-24 145917 AC120VC, 60Hz DC24V, 5A
SDC-40 145956 AC120VC, 60Hz DC40V, 3A

TOOL BENEFITS

  • Preset selection capability: Front panel or 25P I/O
  • Angle Control: 0.1 – 10 turns
  • Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
  • Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
  • Error display: Error display by code no. in system, communication & pattern error group
  • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
  • PC based program for parameter settings, monitoring and real time output.
