E-SERIES
ELECTRIC SCREWDRIVERS

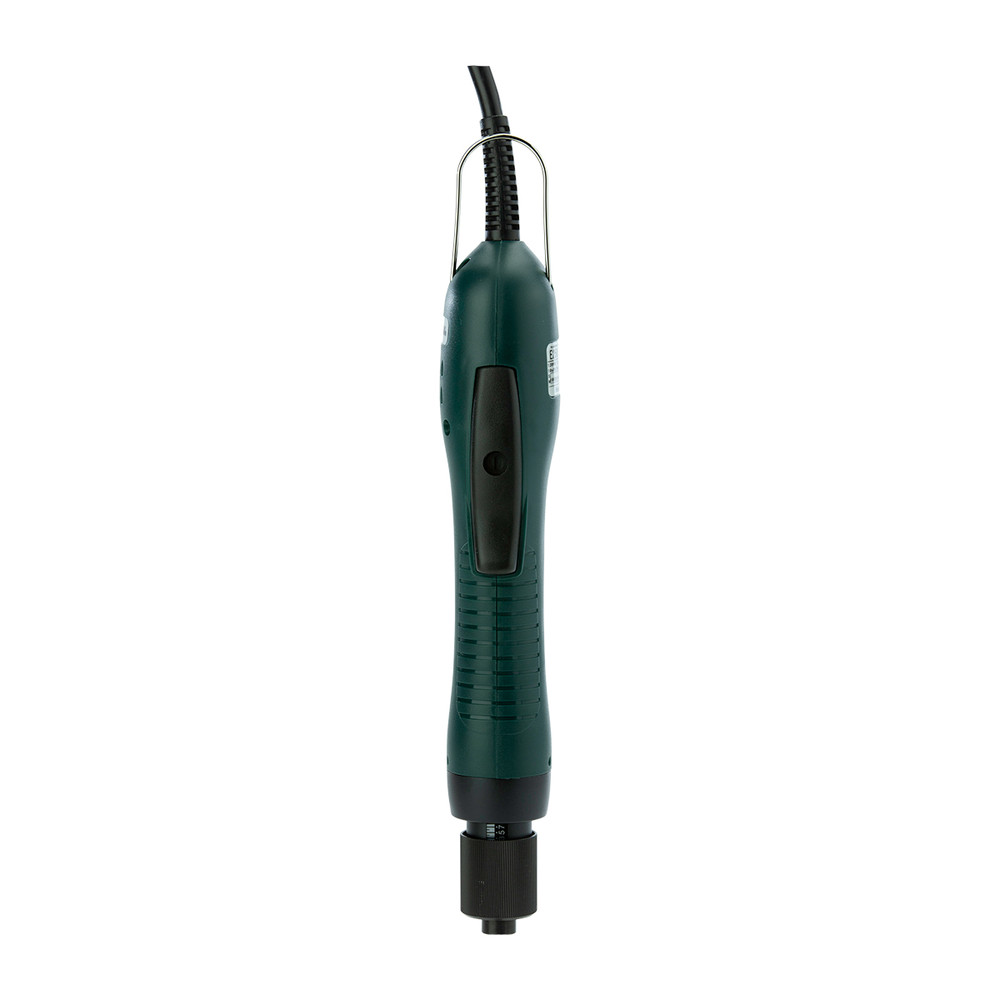

The Mountz E-Series electric screwdriver is for light-duty tightening applications. The assembly tool plugs directly into a power outlet (110V) and does not require a separate power supply unit. The electric screwdriver ensures accuracy in the fastening process and automatically shuts off once the preset torque is achieved. The assembly power tool is recommended for tightening screws, nuts, and bolts.

MODEL DRIVER TYPE ITEM NAME 110V 220V AMERICAN DRIVE SIZE
E180-A Lever Start 145645 T F 0.9 – 15.6 lbf.in 1/4″ F/Hex
E180-PS Push-to-Start 145647 T F 2.2 – 15.6 lbf.in 1/4″ F/Hex
E250-A Lever Start 145649 T F 1.3 – 21.7 lbf.in 1/4″ F/Hex
E250-PS Push-to-Start 145651 T F 2.2 – 21.7 lbf.in 1/4″ F/Hex
E180-A Lever Start 145646 F T 0.9 – 15.6 lbf.in 1/4″ F/Hex
E250-A Lever Start 145650 F T 1.3 – 21.7 lbf.in 1/4″ F/Hex

TOOL BENEFITS

  • Various models that range from 0.9 – 21.7 lbf.in.
  • Plugs directly into a power outlet. Does not require a separate power supply.
  • Automatic power shut off once torque is achieved.
  • Crafted to rest comfortably in the operators hand and reduces work fatigue with ergonomic handgrip.
  • External torque adjustment scale.
  • Push-to-Start and Lever Models available.
  • Duty cycle tool.
  • 110V and 220V models.
  • Power cord with a noise filter to reduce electronic noise (EMC).
  • Lightweight.
