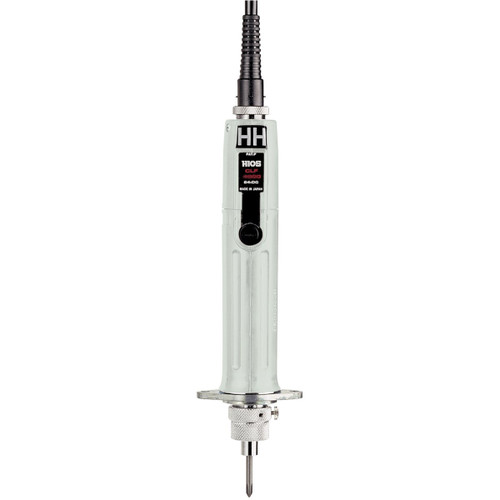

CLF-SERIES
AUTOMATION SCREWDRIVERS

The HIOS CLF-Series is designed for robotic and automated fastening applications. The durable robotic screwdrivers deliver reliability and precision torque control. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.

MODEL DRIVER TYPE ITEM NAME AMERICAN S.I. DRIVE SIZE
CLF3000HH Robotic 144134 0.3 – 1.3 lbf.in 3 – 15 cN.m 4mm Hios Dr.
CLF4000XH Robotic 144136 0.9 – 3 lbf.in 10 – 35 cN.m 1/4″ F/Hex
CLF6500XH Robotic 144135 3.5 – 8.8 lbf.in 40 – 100 cN.m 1/4″ F/Hex
CLF-6500HH Robotic 144266 3.5 – 8.8 lbf.in 40 – 100 cN.m 5mm Hios Dr.
CLF7000XH Robotic 144137 4.4 – 13.2 lbf.in 50 – 150 cN.m 1/4″ F/Hex
CL816AXH Robotic 144144 13.2 – 22 lbf.in 150 – 250 cN.m 1/4″ F/Hex
CL825AXH Robotic 144145 17.7 – 35.4 lbf.in 200 – 400 cN.m 1/4″ F/Hex
CL850AXH Robotic 144146 21.2 – 39.8 lbf.in 240 – 450 cN.m 1/4″ F/Hex

TOOL BENEFITS

  • Models range from 0.3 – 39.8 in lbf.in
  • Robotic style electric screwdriver for automated and fixtured applications.

    • Drivers include a front mounting flange. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved. External torque adjustment scale. Requires a Transformer (power supply).
