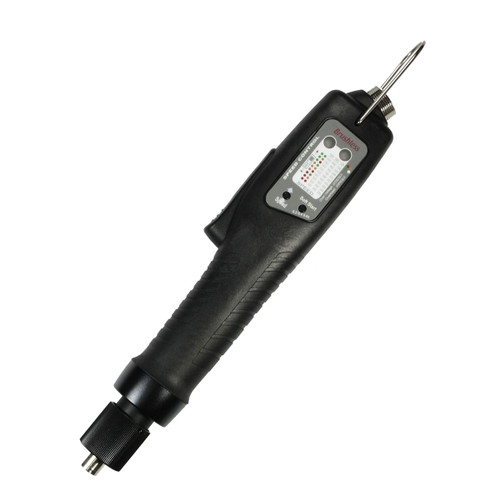

BF-SERIES
ELECTRIC SCREWDRIVERS

The E-DRIV® BF-Series standard models feature an adjustable RPM setting on the tool and a selectable Soft Start mode.

Engineered for high-volume manufacturing applications, the brushless motor design ensures durability and reduces the standard maintenance costs associated with brush-type electric screwdrivers.

The BF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management assures product quality, cost savings, and a reduction in overall ESD failures.

Pair our BF-Series electric screwdrivers with tool balancer and ergonomic torque arms. Give your workers a hand by holding onto their tools for them, decreasing the number of motions they need for each screw and allowing them to work more quickly and efficiently. Tool balancers also help workers avoid fatigue which can lead to low productivity, mistakes, and injuries.

MODEL DRIVER TYPE ITEM NAME AMERICAN S.I. DRIVE SIZE REQUIRES PROGRAM LOCK  KEY
BF060 ESD Lever Start 145884
0.9 – 5.2 lbf.in
9.8 – 58.8 cN.m 1/4″ F/Hex T
BF060P ESD Push-to-Start 145885 0.9 – 5.2 lbf.in 9.8 – 58.8 cN.m 1/4″ F/Hex T
BF080 ESD Lever Start 145793 0.9 – 6.9 lbf.in 9.8 – 78.4 cN.m 1/4″ F/Hex T
BF080P ESD Push-to-Start 145794 0.9 – 6.9 lbf.in 9.8 – 78.4 cN.m 1/4″ F/Hex T
BF120 ESD Lever Start 145776 1.7 – 10.4 lbf.in 19.6 – 117.6 cN.m 1/4″ F/Hex T
BF120P ESD Push-to-Start 145795 1.7 – 10.4 lbf.in 19.6 – 117.6 cN.m 1/4″ F/Hex T
BF035 ESD Lever Start 145844 0.17 – 3 lbf.in 2 – 34.3 cN.m 4mm Hios Dr. T
BF045 ESD Lever Start 145845 0.35 – 3.9 lbf.in 4 – 44.1 cN.m 4mm Hios Dr. T
BFS060 ESD Lever Start 145888 0.9 – 5.2 lbf.in 9.8 – 58.8 cN.m 1/4″ F/Hex T
BFS080 ESD Lever Start 145833 0.9 – 6.9 lbf.in 9.8 – 78.4 cN.m 1/4″ F/Hex T
BFS120 ESD Lever Start 145834 1.7 – 10.4 lbf.in 19.6 – 117.6 cN.m 1/4″ F/Hex T
BF060 ESD Plus Lever Start 145886 0.9 – 5.2 lbf.in
9.8 – 58.8 cN.m
1/4″ F/Hex –
BF060P ESD Plus Push-to-Start 145887 0.9 – 5.2 lbf.in
9.8 – 58.8 cN.m
1/4″ F/Hex –
BF080 ESD Plus Lever Start 145798 0.9 – 6.9 lbf.in 9.8 – 78.4 cN.m 1/4″ F/Hex –
BF080P ESD Plus Push-to-Start 145799 0.9 – 6.9 lbf.in 9.8 – 78.4 cN.m 1/4″ F/Hex –
BF120 ESD Plus Lever Start 145830
1.7 – 10.4 lbf.in
19.6 – 117.6 cN.m 1/4″ F/Hex –
BF120P ESD Plus Push-to-Start 145831
1.7 – 10.4 lbf.in
19.6 – 117.6 cN.m 1/4″ F/Hex –
BFT060 ESD Lever Start 145890 0.9 – 5.2 lbf.in 9.8 – 58.8 cN.m 1/4″ F/Hex –
BFT080 ESD Lever Start 145839 0.9 – 6.9 lbf.in
9.8 – 78.4 cN.m
1/4″ F/Hex –
BFT120 ESD Lever Start 145840 1.7 – 10.4 lbf.in 19.6 – 117.6 cN.m 1/4″ F/Hex –
BFS060 ESD Plus Lever Start 145889
0.9 – 5.2 lbf.in
9.8 – 58.8 cN.m 1/4″ F/Hex –
BFS080 ESD Plus Lever Start
145836
0.9 – 6.9 lbf.in
9.8 – 78.4 cN.m
1/4″ F/Hex –
BFS120 ESD Plus Lever Start 145837 1.7 – 10.4 lbf.in
19.6 – 117.6 cN.m
1/4″ F/Hex –



TOOL BENEFITS

      • BF-Series models range from 0.9 to 10.4 lbf.in. Suitable for low torque applications.

Error-Proofing:

      • The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.

Process Improvement:

      • Designed for high-production environments, BF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
      • ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
      • BF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
      • The screwdriver features a selectable soft start mode (from 0.2-0.6 seconds) that controls the initial speed ramp. Adjust the starting speed of an electric screwdriver for a slow rotation, which allows for smooth engagement between fasteners and parts. It helps prevent cross-threading.
      • BF-Series Standard Models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.

Mountz Quality Standard:

    • High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
