Special Features

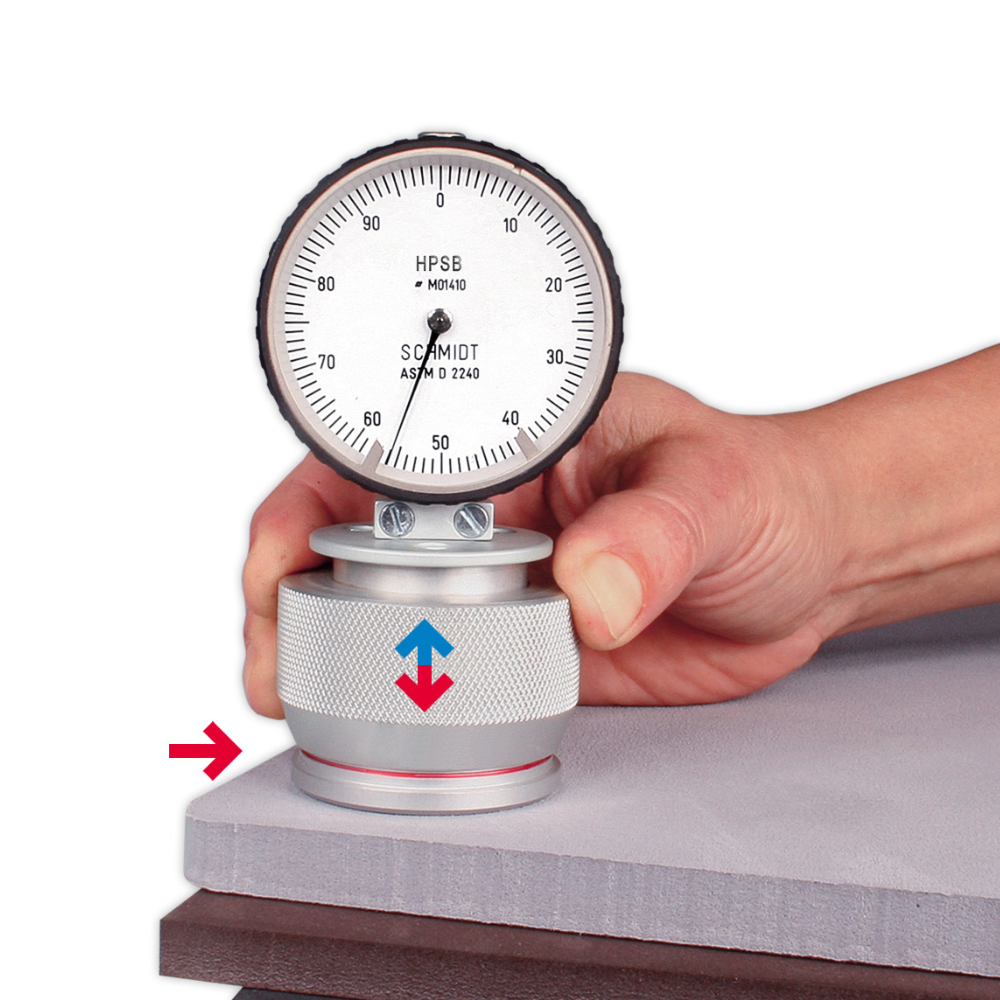

- The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators.
- Flat bottom prevent tilting and improves the measuring accuracy.

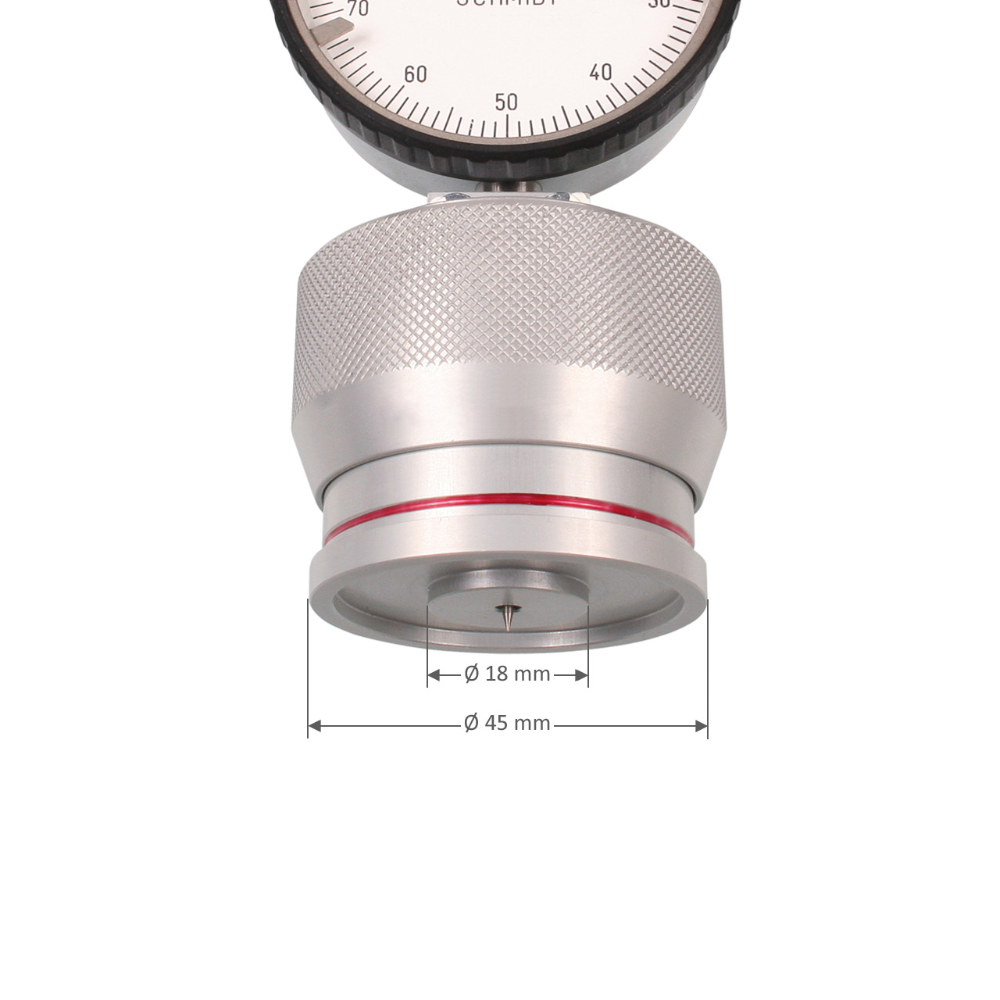

- Shore hardness tester with 18 mm working face diameter
- Adjustable Min./Max. indicator marks to highlight the working range of the durometer HPSB
- Optionally available: Calibration certificate with calibration report
Standard Features
- Easy to use
- High repeatability
- Durometer with an application range of 10 – 90 Shore B units
- Certificate of Compliance with the order 2.1 according EN 10204 is included
Available Models
Model | Shore | Application | |
HPSB | Shore B | for harder material than Shore A | |
Alternativen | |||
HPSA | Shore A | soft rubber, elastomers, natural rubber, soft PVC, leather, etc. | |
HPSA-R-M | Shore A | rubber coated rollers, rollers, and cots | |
HPSD | Shore D | plastic and medium hard to hard rubber materials | |
HPSC | Shore C | medium hard rubber, elastomers and plastic | |
HPSDO | Shore DO | plastic and medium hard to hard rubber materials | |
HPSO | Shore O | soft elastomers, soft elastic materials, medium fast textiles | |
HPSAO | Shore AO | foams, steering wheels and inner linings of motor vehicles |
Indentor
Cone | Tapered pin |
U-grooved | Ball |
Shore A Shore C |
Shore B Shore D |
Shore O Shore DO |
Shore AO |
