Available Scales: A, B, C, D, DO, O, OO & Asker C

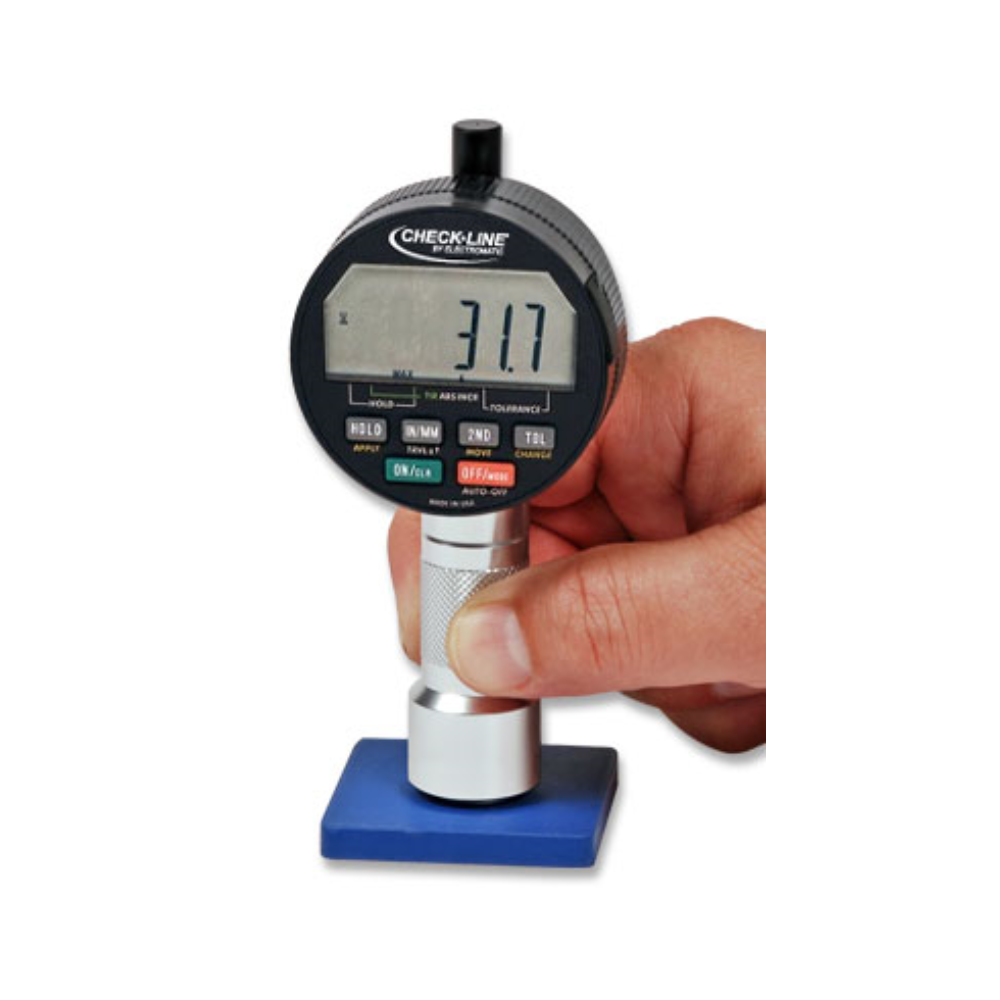

Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.The Check-Line DD-100 digital durometer tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.The DD-100 is supplied with a reference test block and NIST traceable calibration certificate in foam-fitted carrying case.
Conforms to: ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.The Check-Line DD-100 digital durometer tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications.The DD-100 is supplied with a reference test block and NIST traceable calibration certificate in foam-fitted carrying case.

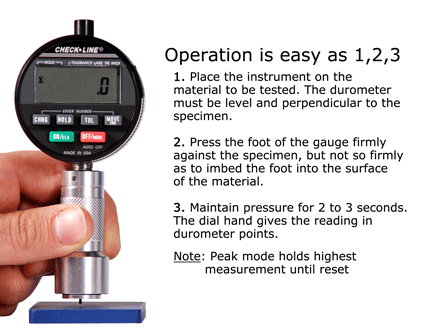

Easy To Operate
Portable Battery-Powered Printer for Hardcopy Documentation
Need a hard copy printout of your measurement results?Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it’s shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!
The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.
Order the following items as shown in the accessories section of the BUY NOW section at the bottom of this page.
P-190 Printer
G03-0086 Data Transfer Cable and Thumb Switch
Durometer Test Stands
We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment.Dimensions
Complete Kit
The DD-100 is supplied as a complete kit including the durometer, test block, instruction manual and calibration certificate in a foam-fitted metal carrying case.DD-DB1 – Smart USB Cable
The DD-DB1 Smart USB cable connects the durometer to a computer. The output of the SmartCable Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable to be identified as a keyboard device that can send data to any Microsoft Windows application – no software wedge required. The SmartCable Keyboard will make the gauge readings appear as if they were typed in using a standard keyboard – eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.
| Conformance to InternatIonal Standards | |||||
| Model | ASTM D2240 | DIN 53505 | ISO 868 | ISO 7619 | |
| DD-100-A | X | X | X | X | |
| DD-100-B | X | ||||
| DD-100-C | X | ||||
| DD-100-D | X | X | X | X | |
| DD-100-DO | X | ||||
| DD-100-O | X | ||||
| DD-100-OO | X | ||||
