ZPM

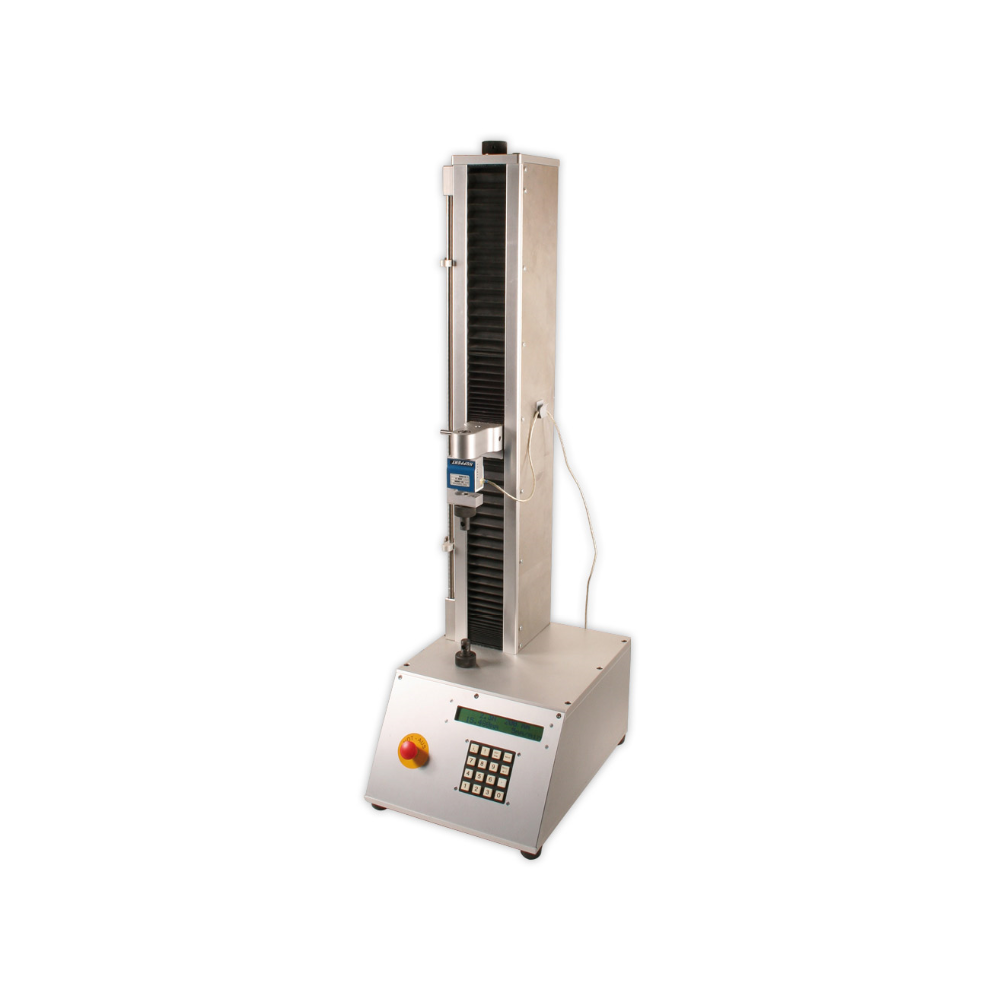

Universal Testing Machine

max. capacity 5000 N
For force-displacement-measurements or constant-force-measurements with programmable traverse path and feed velocity.

To determinate of tensile strength, crushing strength, stretching, peeling- and friction tests, shear force and long-term test.

Test stand includes software for data processing and machine control.

Special Features

  • The integrated microprocessor is operated using either the integrated keypad of the universal testing machine ZPM or PC.
  • USB port to control the machine and for data transfer to PC
  • Drive using ball screw, ball bearings and timing belt
  • Interchangeable load cell to cover capacities up to max. 5000 N
  • Length measurement with encoder, resolution 0.01 (display), 0.001 mm (software)
  • Programmable test set-ups
  • The supplied software offers several tests: Tensile strength, peeling- and friction tests and constant load holding.
  • To ensure wrong operation of the machine max. capacity and traverse path can be limited. Additional mechanical stops can be set
  • A tensile testing machine with excellent value and many features

Standard Features

  • The working range of 500 mm include the grips and the test path. Optional 1200 mm are available
  • Load cells are available from 50 N to 5000 N
  • Load cell and grips can easily be changed
  • Strong, rugged design
  • Grips and fixtures for the tensile testing machine are optional available
  • Calibration report of load cell is included free of charge

 Available Models

Model Measuring Range
 Stroke
ZPM-3000-500 3000 N – basic version 500 mm
alternative
ZPM-50-500 50 N 500 mm
ZPM-100-500 100 N 500 mm
ZPM-200-500 200 N 500 mm
ZPM-500-500 500 N 500 mm
ZPM-1000-500 1000 N 500 mm
ZPM-2000-500 2000 N 500 mm
ZPM-5000-500 5000 N 500 mm

The universal testing machine ZPM is available with a stroke of 1200 mm on request e.g. ZPM-3000-1200

SPECIFICATIONS

Measuring range: Standard: 3000 N
Option: 50, 100, 200, 500, 1000, 2000, 5000 N
Accuracy: Loadcell: linearity – better than 0.03 %,
Hysterese ± 0.02 nominal load
Distance measuring: 0.0001 mm (internal)
Overload capacity: Approx. 120 % nominal load
Display: LCD with double-spaced display: force, distance
Resolution: Force 0.01 N (load cell 50 N), 0.1 N (load cell up to max. 5000 N)
Distance 0.01 mm (LCD), 0.001 mm (PC)
Measuring frequency: USB output with fast data transfer
Feed: Under load: 1 – 500 mm/min infinitely adjustable
without load: 1 – 700 mm/min infinitely adjustable
Max. travel distance: 500 mm
Software: Win XP and higher
Housing material: Rugged construction of aluminium and V2A
Weight net, (gross): Approx. 48 kg (60 kg)

Specifications subject to change without notice!

OPTIONAL LOAD CELL

Load Cell
 Measuring Range
LZ-50N 50 N
LZ-100N 100 N
LZ-200N 200  N
LZ-500N 500 N
LZ-1000N 1000 N
LZ-2000N 2000 N
LZ-3000N 3000 N
LZ-5000N 5000 N

STANDARD ACCESSORIES

Software

Simple, easy to use software for machine control, to create hysteresis graphs and force-distance diagrams.

OPTIONAL ACCESSORIES

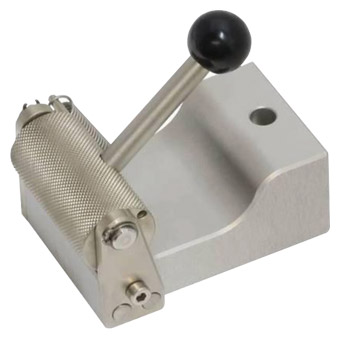

TH-7-1 – Eccentric Roller

Eccentric Roller, roller width 50 mm,
for materials with a thickness of 0 – 7 mm,
roller clamps of nickel-plated steel,
body of anodized aluminium
max. pull force of 1 kN
delivery includes: 1 pair (2 pieces)
Order number: TH-7-1

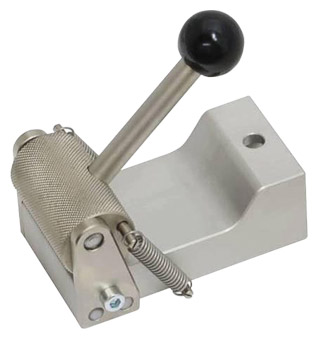

 TH-7-5 – Eccentric Roller

Eccentric Roller, roller width 50 mm,
for materials with a thickness of 0 – 7 mm,
roller clamps of nickel-plated steel,
body of anodized aluminium
max. pull force of 5 kN (higher capacity on request)
delivery includes: 1 pair (2 pieces)
Order number: TH-7-5

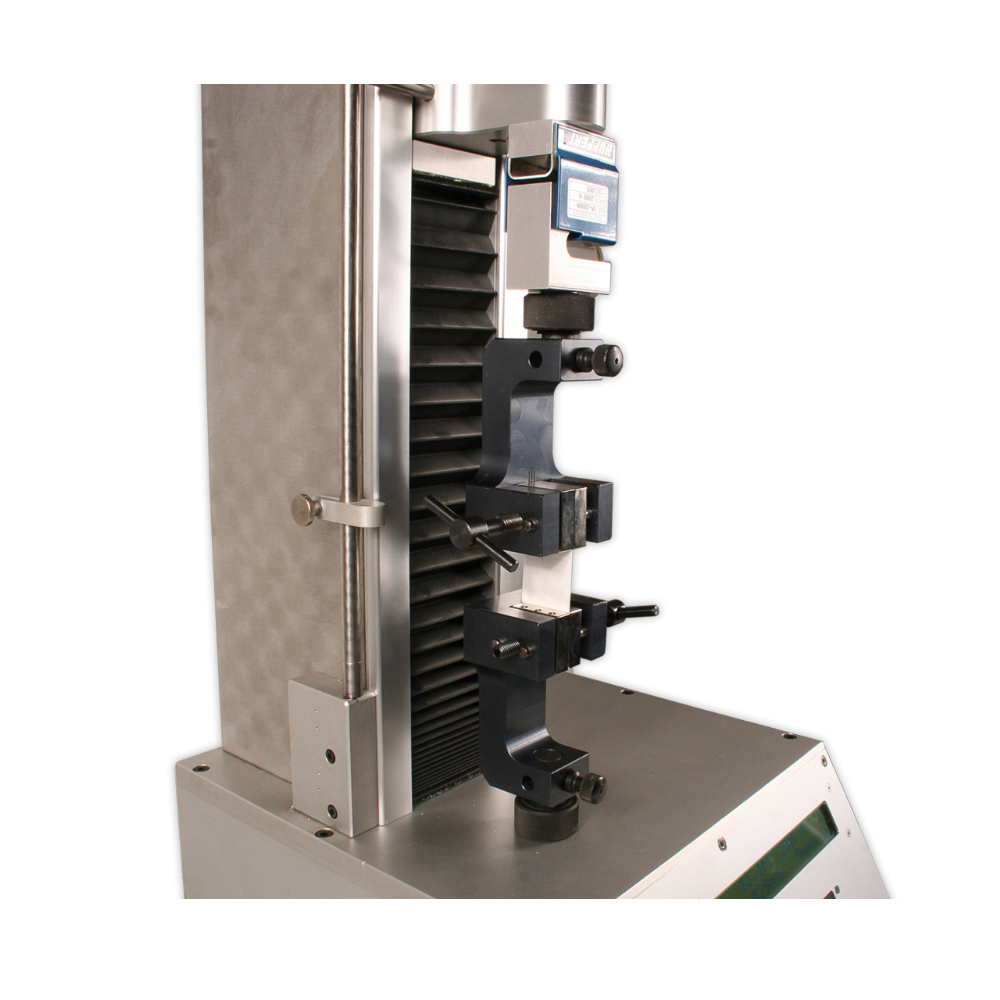

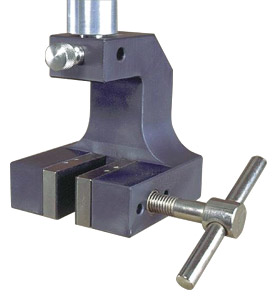

 TH56k – Vice Grip

Vice grip for clamping paper, foil, fabric etc.up to max. load 1 kN
delivery includes 1 pair (2 pieces) without jaws
Order number: TH56k
different replaceable jaws availableV

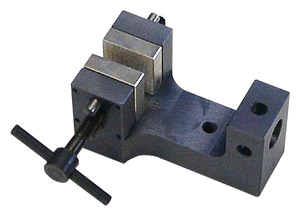

 TH56g – Vice Grip

For clamping paper, foil, fabric etc. max. 5 kN
delivery includes 1 pair (2 pieces) without jaws
Order number: TH56g
different replaceable jaws available

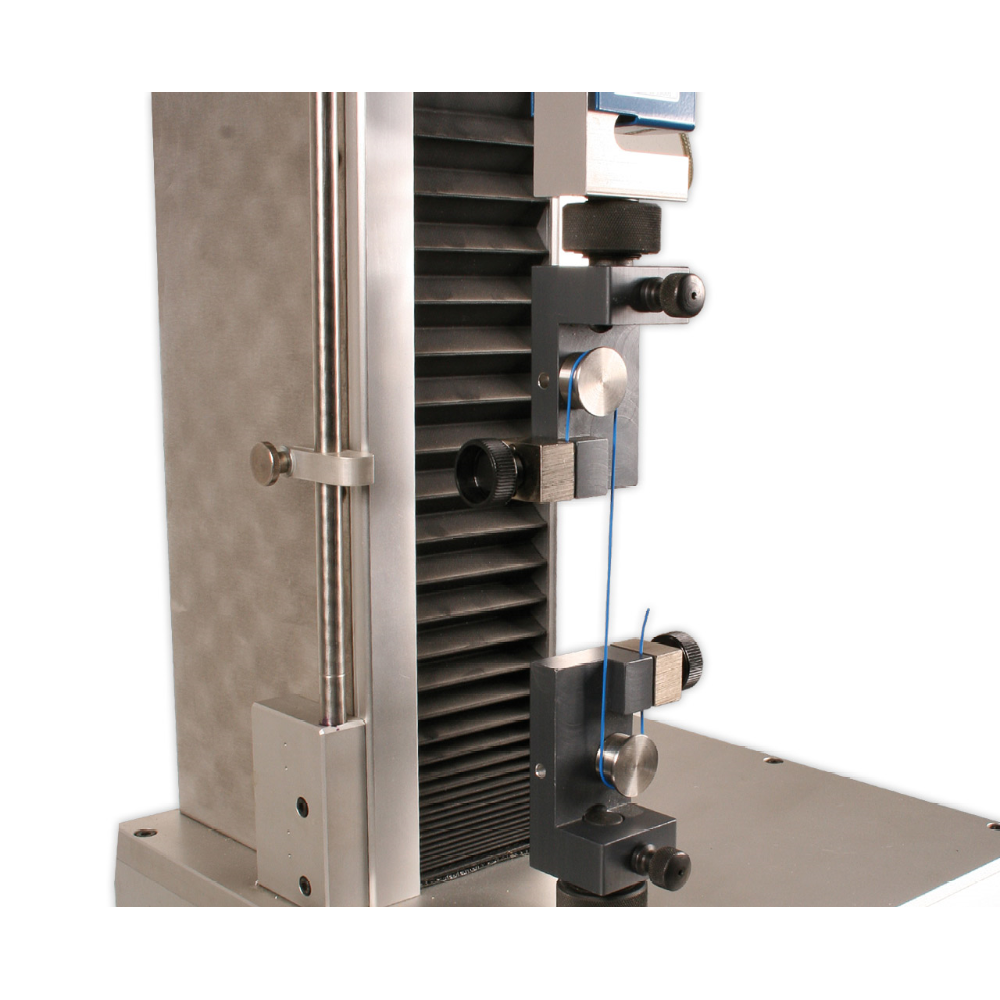

 TH76-1 – Rope Grip

Thread grip up to max. load 1 kN with deflecting cylinder and wedge clamp, rubber coated (Perbunan)
delivery includes 1 pair (2 pieces) without jaws
Order number: TH76-1
different replaceable jaws available

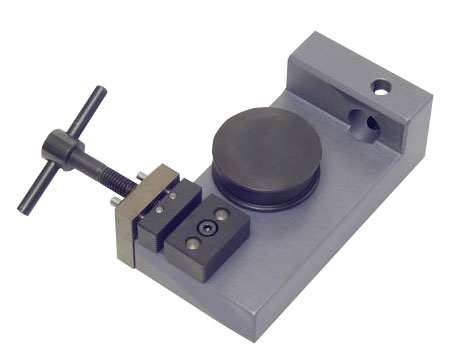

 TH76-5 – Rope Grip

Thread grip up to max. load 5 kN with deflecting cylinder, wedge clamp and pyramid jaws
delivery includes 1 pair (2 pieces) without jaws
Order number: TH76-5
different replaceable jaws available















 Beside the listed clamps there are a lot of other clamps available to make the universal testing machine ZPM fit for your requirements.
Mention us your application, testing method and testing standard.

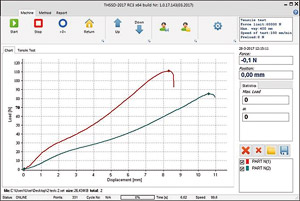

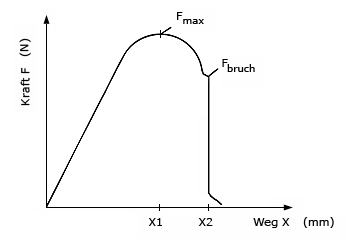

Force-Displacement-Diagram

DELIVERY INCLUDES

Test stand, loadcell, software, manufacturer`s test report
