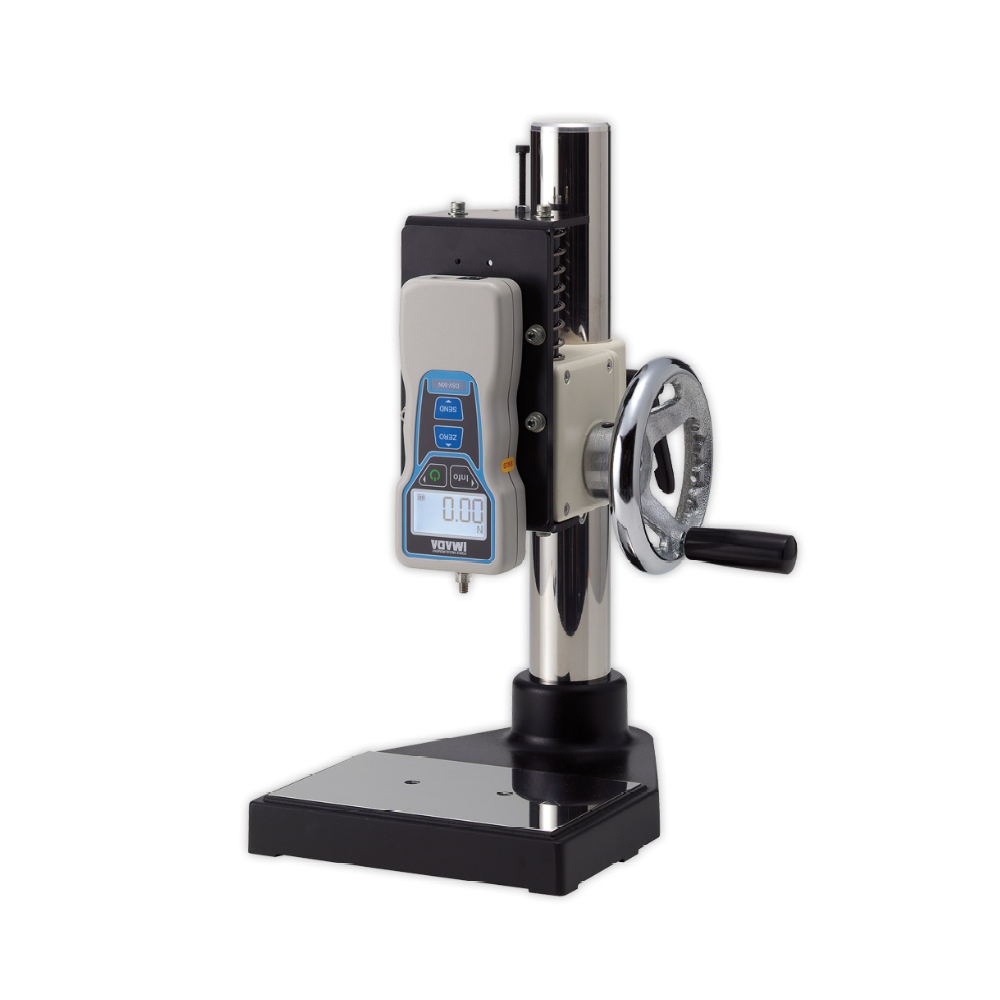

SVH-1000N
Test Stand

max. capacity 1000 N
Vertical manual test stand with hand wheel for measuring compression and tension forces

Rugged design

Test stand is available with distance measuring system and extended stroke

Special Features

  • Test stand SVH-1000N with manual hand wheel operation for compression (push) and tension (pull) measurement
  • Force gauge remains in position when hand wheel is released – ideal for “creep” testing rubber or other elastic materials
  • Hand wheel operation allows you to position the gauge, hold it in place or advance it at a constant manual speed
  • Travel distance 60 mm (with hand wheel)
  • Max. capacity: 1000 N
  • One turn of hand wheel = 3 mm
  • Clearance: infinitely adjustable from 0 to 265 mm
  • Test stand for the following force gauges up to 1000 N:
    – mechanical – model PS and FB
    – electronic – model DST, DSV, ZTS and ZTA
    – electronic – model FGP and FGJN with adapter plate MP-S

Standard Features

  • Large baseplate to take up a lot of clamps and testing devices
  • Delivery of the test stand includes mounting screws for the force gauge
  • Force gauge is not included

 Available Models

Model Capacity Description
SVH-1000N 1000 N Standard unit
SVH-1000N-S 1000 N with distance measurement system
SVH-1000N-L 1000 N with extended shaft (up to approx. 610 mm)

SPECIFICATIONS

Capacity: Max. 1000 N
Travel distance: 60 mm
Feed: 3 mm per turn of the hand wheel
Clearance: 0 – 265 mm (standard)
Dimensions: 200 x 280 x 410 mm (LxWxH)
Weight, net (gross): Approx. 7.7 kg (9.7 kg)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand SVH-1000N in our program.

For more information go to clamps and testing devices

ATTACHMENT

Code S – Length Scale

For exact determination of the travel distance, all vertical test stands may be equipped with a digital measuring system:
– display in mm or inch
– zero setting
– Digimatic output
Specifications:
Resolution: 0.01 mm
Accuracy: 0.01 mm of reading
max. measuring range: 100 mm
Order number: Code S

DELIVERY INCLUDES

Test stand SVH-1000N without force gauge, mounting screws, operating instruction in English only
