Fixture for Bending Tests
For cantilever bending tests at cutlery, toothbrushes, needles etc.
Capacity 200 N
Sample width max. 50 mm
Sample thickness max. 25 mm
More information in the PDF:
Wire terminal grip CH-500N
For testing the strength of wire terminal connections
CH-500N: Opening width 6 mm, capacity 500 N
More information in the PDF:
Wedge grip CW-500N
Easy to clamp wire and cable.
CW-500N: Opening width 5 mm, capacity 500 N
More information in the PDF:
Wire terminal grip CH-5000N
For testing the pull-off force of cable lugs
CH-5000N: inner diameter 6 – 12 mm, capacity 5000 N
More information in the PDF:
Wedge grip CW-5000N
Easy to clamp wire and cable.
CW-5000N: max. 30 mm Ø, capacity 5000 N
More information in the PDF:
Coefficient of friction tester COF
Coefficient of friction tester of paper and foils.
COF-2N: Capacity 2 N, pull direction horizontal
COF2-2N: Capacity 2 N, pull direction horizontal
COF-2N-V: Capacity 2 N, pull direction vertical
COF-10N: Capacity 10 N, pull direction horizontal
COF2-10N: Capacity 10 N, pull direction horizontal
COF-10N-V: Capacity 10 N, pull direction vertical
More information in the PDF:
Rotary wire terminal fixture FW-12/PW-4
For testing the strength of wire terminal connections. Recommended in connection with cam grip GP-30.
FW-12: Capacity 1000 N
PW-4: Capacity 1000 N
More information in the PDF:
Peel strength table P45-50N
Suitable for sealing strength of a cup container cover.
P45-50N: Sample height 12 – 90 mm, capacity 200 N, sample-Ø 30 – 120 mm, opening width 2 mm
More information in the PDF:
Peel strength table P90-200N
with self adjusting sliding system, 90° deflection
P90-200N: Sample size 155 x 80 mm (LxW), capacity 200 N
More information in the PDF:
Peel strength table P180-200N
with adjustable table, 180° deflection
P180-200N: Sample size 155 x 40 mm (LxW), capacity 200 N
More information in the PDF:
Attachment for cans with pull tab
For measuring opening forces of cans.
PTD-100N: For cans with stay-on-tab
PTF-100N: For cans with full aperture end
More information in the PDF:
Pin and hook SJ
For pull and shear test according to IEC and JIS standards
SJ-QFP-01: 45° pull test
SJ-TIP-01: 90° shear test, pin 0.25 mm
SJ-TIP-02: 90° shear test, pin 5 mm
SJ-TIP-03: 90° shear test, pin 2 mm
SJ-TIP-04: 90° shear test, pin 4 mm
More information in the PDF:
Table SJS
Table for pull and shear tests.
SJS-100N-L: Size of table 200 x 120 mm
SJS-100N-S: Size of table 120 x 55 mm
More information in the PDF:
Attachment for testing the durability of coatings
Attachment for pull of surface coatings.
TH-1000N-7: Capacity 1000 N, surface 7 mm Ø
TH-1000N-20: Capacity 1000 N, surface 20 mm Ø
TH-5000N-20: Capacity 5000 N, surface 20 mm Ø
More information in the PDF:
Fixture for film sticking test TKS
For testing the hardness of thin materials
TKS-250N: Capacity 250 N, Pin Ø 1 mm
TKS-20N: Capacity 20 N, Pin Ø 1 mm
More information in the PDF:
Attachment for needle bonding strength tests
To determine the force, that is needed, for pull out a hypodermic needle from a Luer-hub.
Needle diameter 0.3 – 2.0 mm
More information in the PDF:

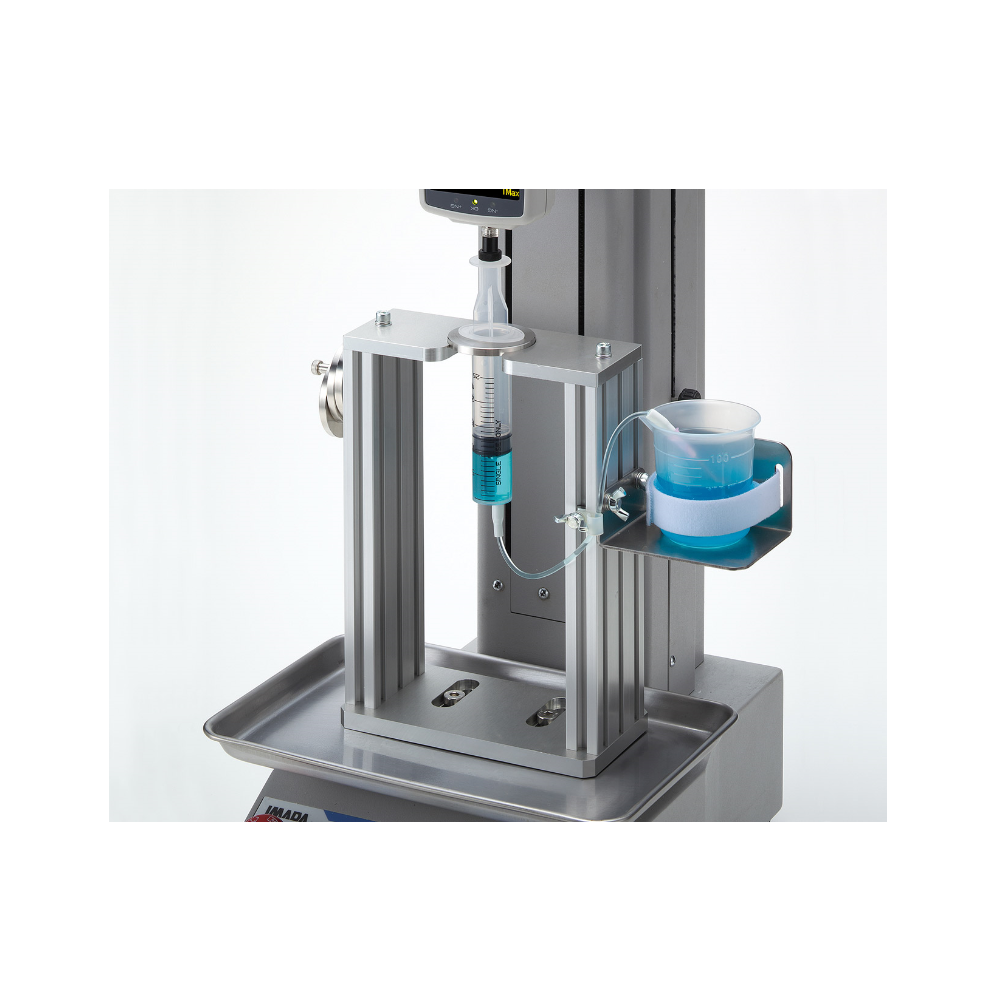

Attachment for compression tests on syringe MED-SCT-500N
To determine the force, that is needed, for pressing the plunger of a syringe.
Capacity of the syringe: 0.5 – 50 ml
More information in the PDF:
Attachment for determining the tack of adhesive tapes MED-IS-20N
Convenient for plaster, adhesive tapes etc.
More information in the PDF:
Attachment for compression tests on acupuncture needles MED-ACU-2N
To determine the strength and sharpness of acupuncture needles.
Needle diameter 0.1 up to 1 mm
More information in the PDF:
Attachment for penetrability tests at a vial MED-LFA-20N
To determine the penetration force on the stopper of an injection vial.
Adapter for 3 different luer fittings
More information in the PDF:
Guide ruler for adhesive tape peel test GRP-50
For positioning a sample on a table.
Max. sample width 50 mm
More information in the PDF:
