SJX-500H
Electric Horizontal Test Stand

Brief Introduction:

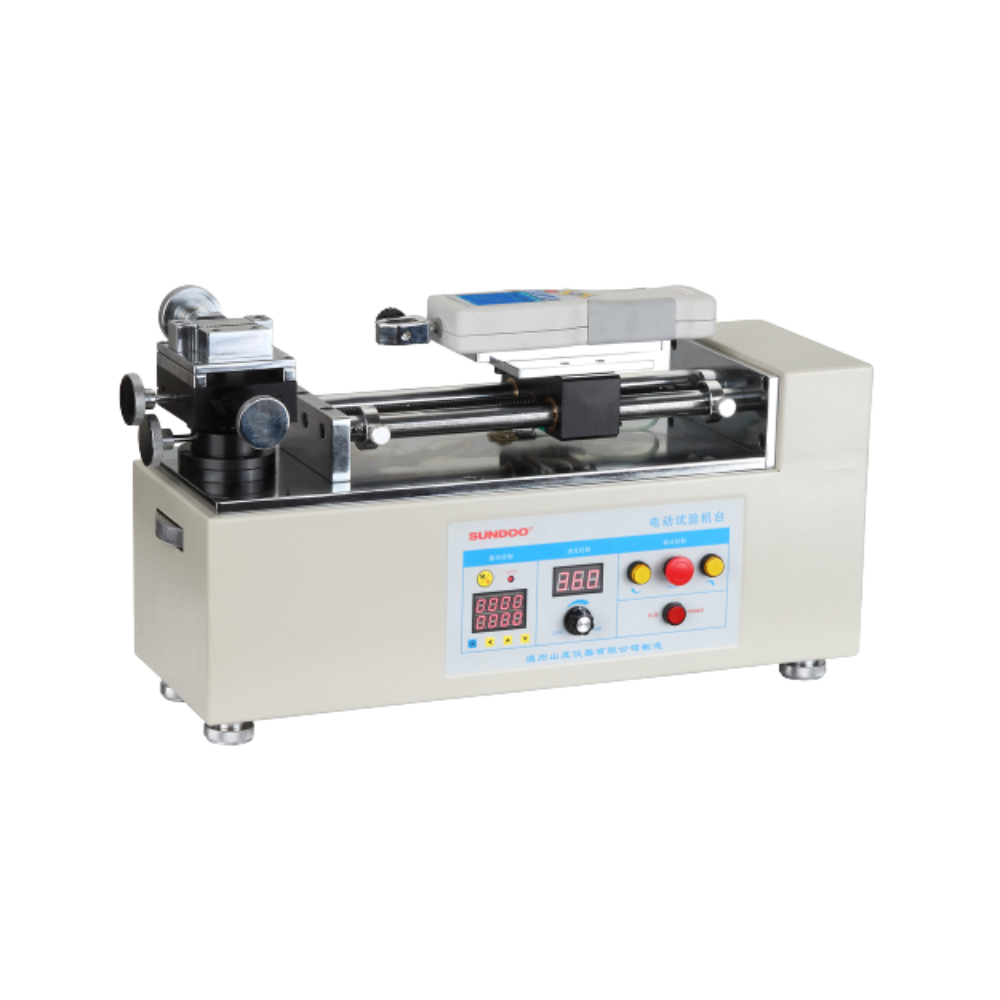

Product Name:SJX-500H Electric Horizontal Test Stand
SJX-500H Electric Horizontal Test Stand is a tensile/compressive test stand applied with push pull force gauge. With double pillar, it has good stability, wide application range, convenient usage; also stepless speed variation uniform motion, digital displaying test speed, funtion of converting manual and automatic control, presentting the cycle test times. When equiped with SH series, it can present the stopping working load. The stand is specialized for tension/compression, insertion/withdraw and fracture test.

PRODUCT TRAIT

  • Dimension: L*W*H(mm) 580*210*320; Weight: about 28.4kg;
  • Capacity: 500N; Stroke: 210mm;
  • Stepless speed adjusting, digital display speed: 50-500mm/min;
  • Applied with (purchase additionally): SN, SH/SP ( Sensor Inside) push pull force gauge, various clamps.

Note:Due to updates and improvement,products shape and color depends on specific products.Please contact us if you have any problems.
