SH-3000N
Test Stand

max. capacity 3000 N

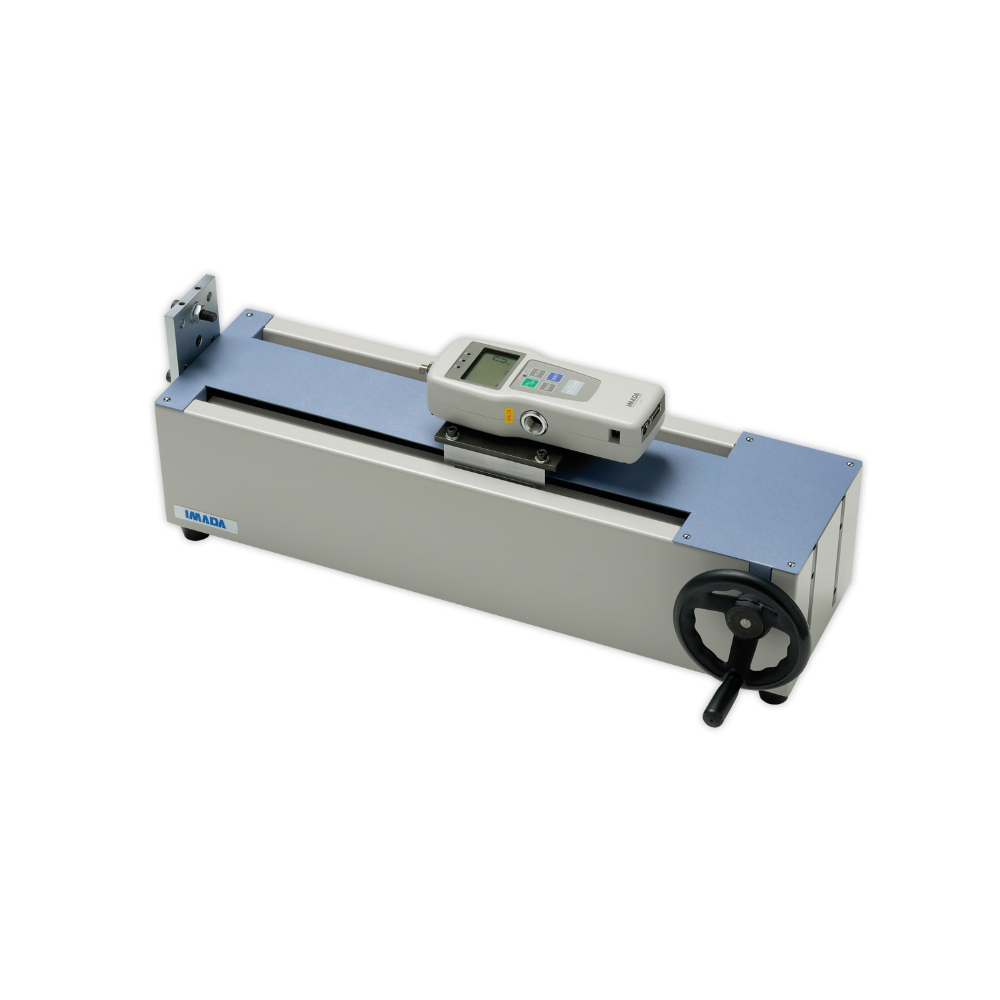

Horizontal manual test stand with hand wheel to measure compression and tension forces

Rugged design for heavy duty

Test stand is available with distance measuring system

Special Features

  • Horizontal hand wheel test stand for compression and tension measurements
  • Max. capacity 3000 N
  • Hand wheel provides relative consistent manual speed for repeatable tests
  • Force gauge remains in position when hand wheel is released
  • Stroke: adjustable max. 365 mm
  • Feed of the handwheel: 1 complete turn, 0.6 mm feed
  • Test stand SH-3000N is recommended for the following force gauges up to 3000 N:
    – mechanical – model PS, FB and PSH
    – electronic – model DST, DSV, ZTS and ZTA
    – electronic – model FGP and FGJN with adapter plate MP-S

Standard Features

  • Delivery of the test stand includes mounting screws for the force gauge
  • Force gauge is not included

 Available Models

Model Capacity Description
SH-3000N 3000 N standard unit
SH-3000N-S 3000 N with distance measuring system

SPECIFICATIONS

Capacity: Max. 3000 N
Travel distance: 365 mm (standard)
Stroke with force gauge ZTS/ZTA: Max. 320 mm (standard)
Feed per one turn: 0.6 mm
Table heigth adjustment: Max. 30 mm
Dimensions: 696.5 x 285 x 225 (LxWxH)
Weight, net (gross): 22 kg (26 kg)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand SH-3000N in our program.

For more information go to clamps and testing devices

ATTACHMENTS

Code S – Distance Measuring System

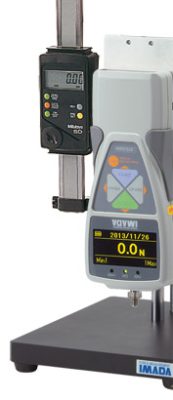

Distance Measuring System for Test Stands Code S
For exact determination of the travel distance, test stand SH-3000N can be equipped with a digital measuring system:
– display in mm or inch
– zero setting
– Digimatic output
Specifications:
Resolution: 0.01 mm
Accuracy: 0.01 mm of reading
max. measuring range: 300 mm
Order number: Code S

DELIVERY INCLUDES

Test stand SH-3000N without force gauge, mounting screws, operating instruction in English only
