Special Features
- 2 operation modes:
Single or continuous operation for constant testing conditions
– manual operation: Feed continuous so long as button is pressed or he limit switch is reached
– continuous cycle operation: Force gauge travels a defined distance continuously up and down - The adjusted speed is indicated in the display
- Integrated timer and counter function for accomplishment of endurance tests (To apply constant force for a certain number of strokes and/or at certain time.

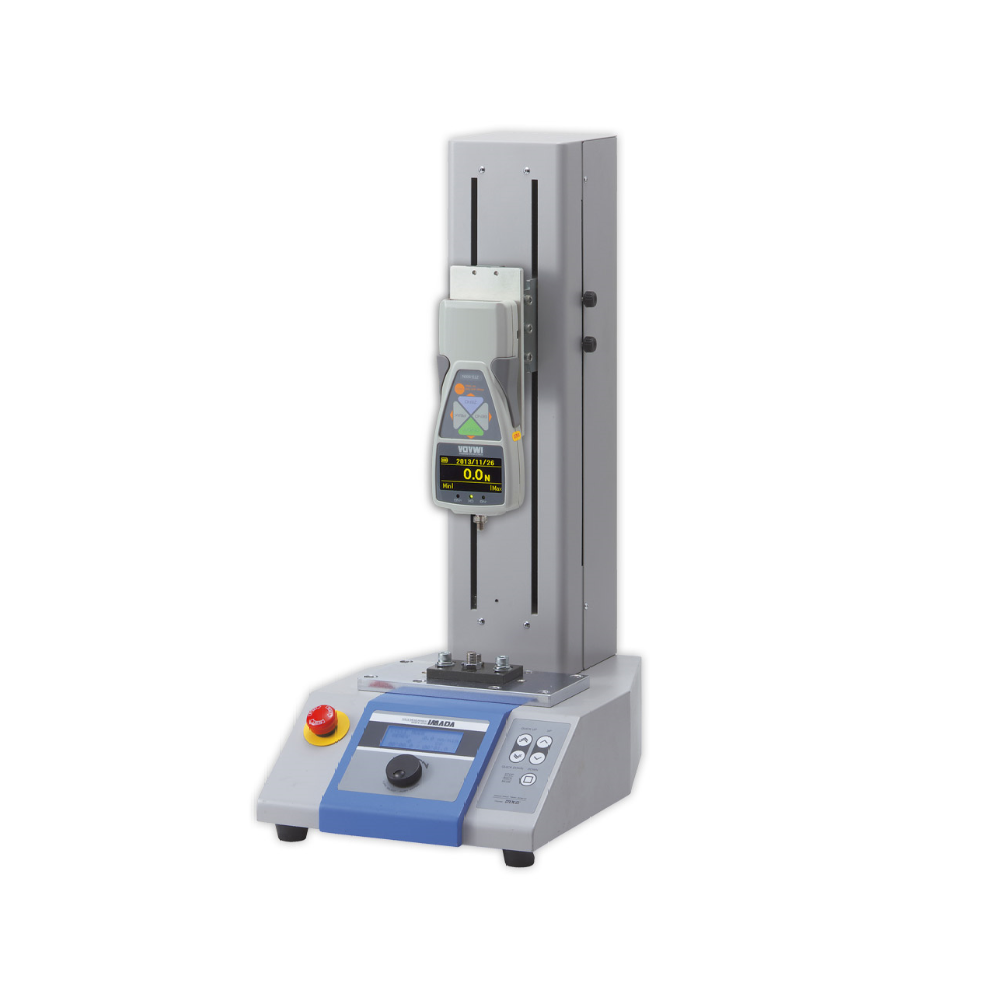

The display shows the adjusted basic conditions, as well as the executed strokes, respectively the elapsed time. - Test stand MX2-2500N with infinitely adjustable travel speed from 10 to 300 mm/min
- Combination of linear guide and high performance brushless motor provides extremely smooth operation also under heavy load
- 2 manual adjustable limit switches for inversion of the direction
- Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary)
- High speed for returning to starting position
- LCD Display
- Travel distance max. 320 mm (620 mm with extended stroke), depending on the mounted force gauge (see dimensions)
- FSA: In combination with force gauge model ZTA and software »Force Recorder Professional« force-displacement and force-time graphs can be generated.
- Test stand for the following force gauge up to 5000 N:
– mechanical – model PS, FB and PSH
– electronic (recommended) – model DS2, ZTS and ZTA
Standard Features
- The design of the test stand is more rugged than series MX
- Large baseplate to take up a lot of clamps and testing devices
- Delivery of the test stand includes mounting screws for the force gauge
- Force gauge is not included
Available Models
| Model | Capacity | Description |
| MX2-2500N | 2500 N | standard unit |
| MX2-2500N-S | 2500 N | with distance measuring system (Mitutoyo) |
| MX2-2500N-FA | 2500 N | integrated linear scale |
| MX2-2500N-CN | 2500 N | with interface for external signal |
| MX2-2500N-L | < 2500 N | with extended stroke |
| MX2-2500N-V75 | 2500 N | travel speed 3 – 75 mm/min |
Depending on the application we have a lot of clamping tools and clamps for test stand MX2-2500N in our program.

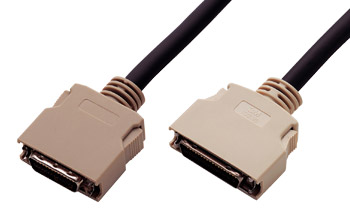

Connecting cable for test stand with force gauge (Series ZT) to stop feed at Fmax or overload (force control), length approx. 1.5 m

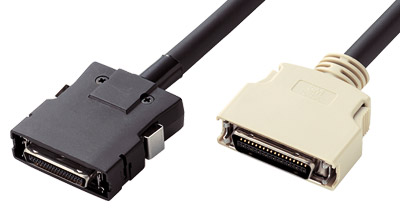

Connecting cable for test stand with force gauge (Series Z) to stop at Fmax or overload (force control).
Connecting cable for signal input by customer.

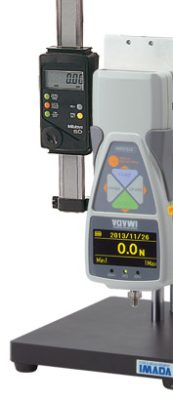

For exact determination of the travel distance, test stand MX2-2500N can be equipped with a digital measuring system:
