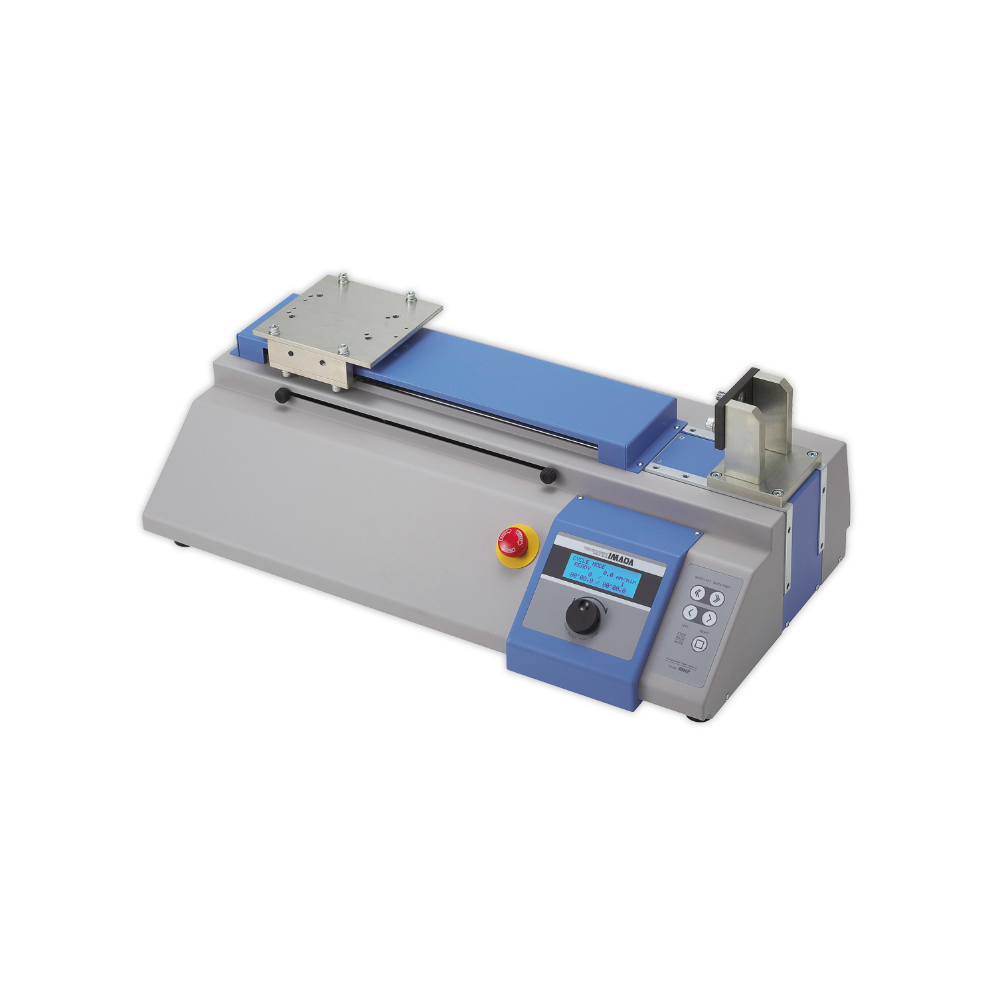

MH2-2500N
Test Stand

max. calibration 2500 N
Horizontal motorized test stand for single and continuous tests with infinitely adjustable travel speed

For compression and tension measurement

Test stand is equipped with timer and counter unit for endurance tests

Special Features

3 operation modes:
Single or continuous operation for constant test conditions
– manual operation: Feed continuous so long as button is pressed or he limit switch is reached
– continuous cycle operation: Force gauge travels a defined distance continuously up and down
– Jog mode: Moves the cross head exactly 0.01 mm
The adjusted speed is indicated in the display
Integrated timer and counter function for accomplishment of endurance tests (To apply constant force for a certain number of strokes and/or at certain time.
The display shows the adjusted basic conditions, as well as the executed strokes, respectively the elapsed time.
Test stand MH2-2500N with infinitely adjustable travel speed from 10 to 300 mm/min
2 manual adjustable limit switches for inversion of the direction
Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary)
3 different speeds adjustable (Start, measuring back)
Travel distance 340 mm
Sideward mounting holes for fixing a customized attachment; enables a longer measuring distance for larger probes
FSA: In combination with force gauge model ZTA and software »Force Recorder Professional« force-displacement and force-time graphs can be generated.
Test stand for the following force gauge up to 2500 N:
– mechanical – model PS and FB
– electronic (recommended) – model DST, DSV, ZTS and ZTA

Standard Features

Rugged design
Delivery of the test stand includes mounting screws for the force gauge
Force gauge is not included

Available Models

Model	Description
MH2-2500N	standard unit
MH2-2500N-S	with distance measuring system (Mitutoyo)
MH2-2500N-FA	integrated linear scale
MH2-2500N-CN	with interface for external signal

Please note:
All models can be supplied with extended stroke and different traveling speed on request.

SPECIFICATIONS

Capacity:	Max. 2500 N
Feed:	0 – 340 mm (standard)
Stroke:	See Dimensions
Travel Speed:	10 – 300 mm/min, digital ajustable (Standard)
Dimensions:	666 x 340 x 261 mm (LxWxH)
Weight, net:	Approx. 27 kg

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand MH2-2500N in our program.

For more information go to clamps and testing devices

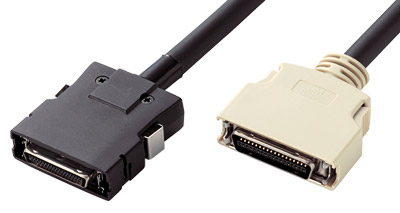

CB-528 – Connecting Cable

Connecting cable for test stand with force gauge (Series ZT) to stop feed at Fmax or overload (force control), length approx. 1.5 m
Order number: CB-528

CB-706 – Connecting Cable

Connecting cable for signal input by customer.
Order number: CB-706

ATTACHMENTS

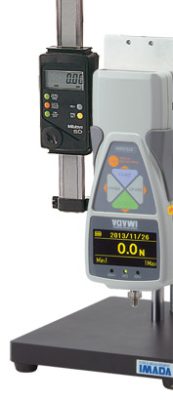

Code S – Distance Measuring System

For exact determination of the travel distance, test stand MH2-500N can be equipped with a digital measuring system:
– display in mm or inch
– zero setting
– Digimatic output
Specifications:
Resolution: 0.01 mm
Accuracy: 0.01 mm of reading
max. measuring range: 300 mm
Order number: Code S

DELIVERY INCLUDES

Test stand MH2-2500N without force gauge, mounting screws, mounting plate, operating instruction in English only
