KV-50N
Test Stand

max. capacity 50 N

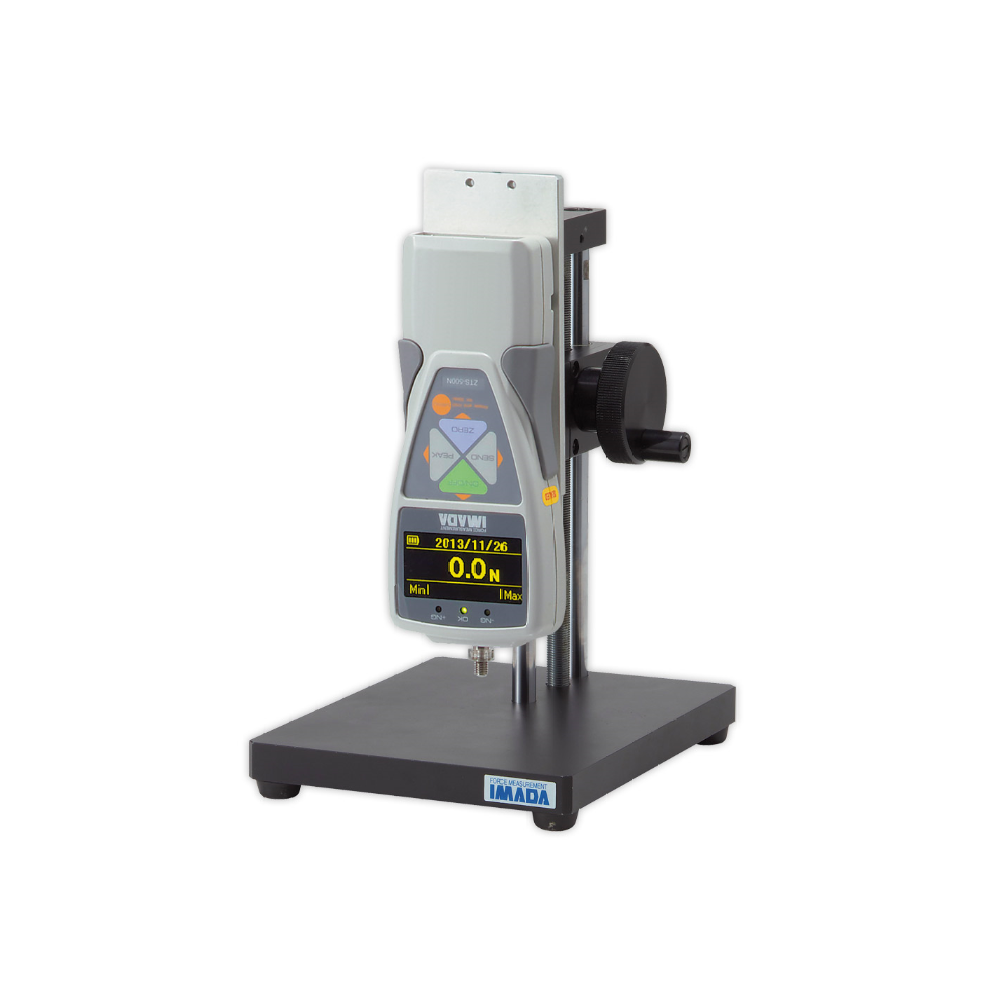

Vertical manual test stand with fine adjustment of feed for measuring forces of keyboard foils, switches, keyboards etc. For force gauges with low capacity

For measuring exact compression and tension forces under consistent conditions

Test stand is available with distance measuring system

Special Features

  • For exact determination of compression and tension forces under consistent conditions
  • Test stand KV-50N with adjusting knob, max. travel distance 100 mm
  • One turn of the knob = 1 mm
  • Fine movement for exact positioning
  • Capacity: max. 50 N
  • Test stand for the following force gauges up to 50 N:
    – mechanical – model PS and FB
    – electronic – model DST, DSV, ZTS and ZTA
    – electronic – model FGP and FGJN with adapter plate MP-S

Standard Features

  • Delivery of the test stand includes mounting screws for the force gauge
  • Force gauge is not included

 Available Models

Model Description
KV-50N standard unit
KV-50N-S with distance measuring system

SPECIFICATIONS

Capacity: Max. 50 N
Travel distance: 100 mm
Stroke with force gauge ZTS/ZTA: Max. 60 mm
Feed: 1 mm per one turn of the adjusting knob
Dimensions: 140 x 180 x 220 mm (LxWxH)
Weight, net (gross): Approx. 2.0 kg (4.5 kg)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for test stand KV-50N in our program.

For more information go to clamps and testing devices

ATTACHMENT

Code S – Distance Measuring System

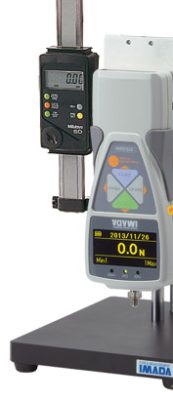

For exact determination of the travel distance, test stand KV-50N can be equipped with a digital measuring system:
– display in mm or inch
– zero setting
– Digimatic output
Specifications:
Resolution: 0.01 mm
Accuracy: 0.01 mm of reading
max. measuring range: 100 mm
Order number: Code S

DELIVERY INCLUDES

Test stand KV-50N without force gauge, mounting screws, operating instructions in English only
