Special Features

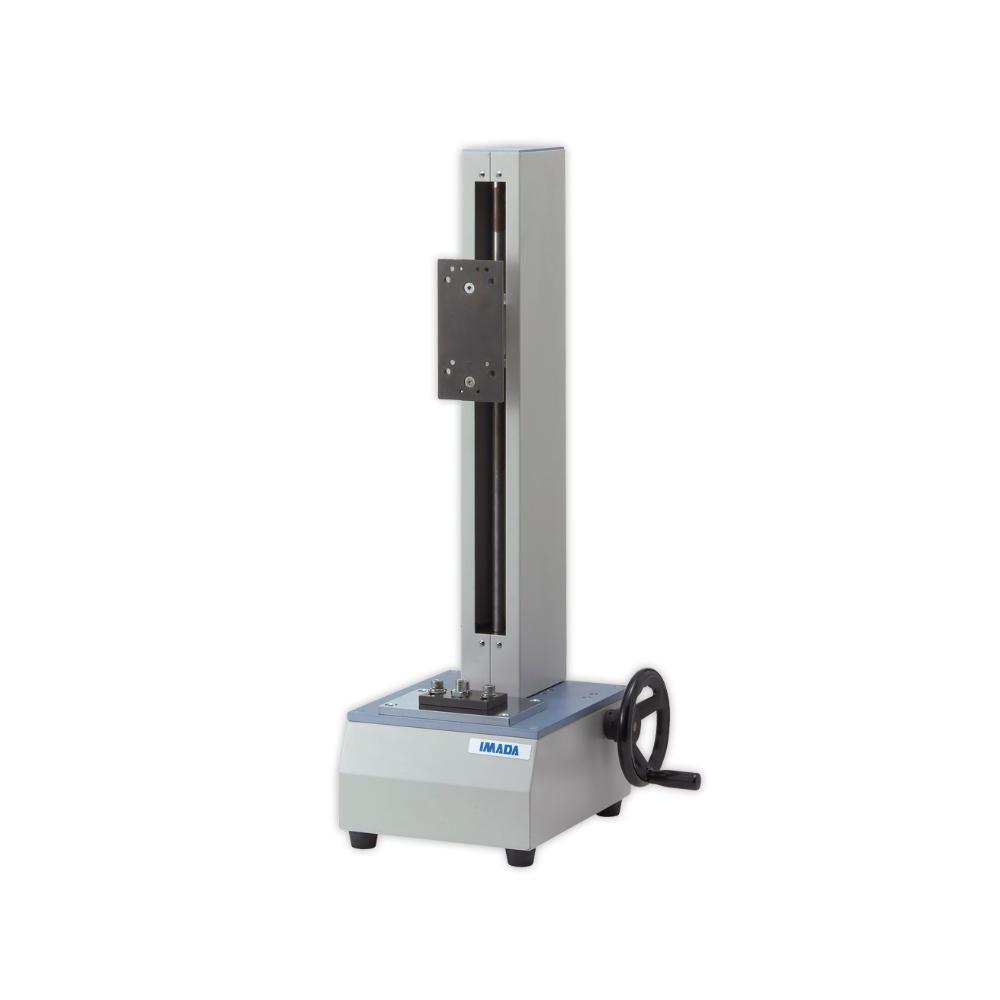

- Test stand HV-3000N with manual hand wheel operation for compression (push) and tension (pull) measurements
- Force gauge remains in position when hand wheel is released. ideal for “creep” testing rubber or other elastic materials
- Hand wheel operation allows you to position the gauge, hold it in place or advance it at a constant manual speed
- Max. capacity 3000 N
- One complete turn of hand wheel = 0.6 mm
- Travel distance 425 mm
- Test stand for the following force gauges up to 3000 N:
– mechanical – model PS, FB and PSH
– electronic – model DST, DSV, ZTS and ZTA
– electronic – model FGP and FGJN with adapter plate MP-S
Standard Features
- Large baseplate to take up a lot of clamps and testing devices
- Delivery of the test stand includes mounting screws for the force gauge
- Force gauge is not included
Available Models
| Model | Capacity | Description |
| HV-3000N | 3000 N | standard unit |
| HV-3000N-S | 3000 N | with distance measuring system |

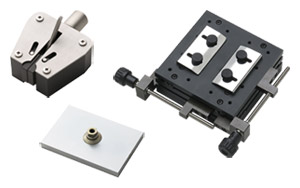

Depending on the application we have a lot of clamping tools and clamps for test stand HV-3000N in our program.
For exact determination of the travel distance, test stand HV-1000N can be equipped with a digital measuring system:
