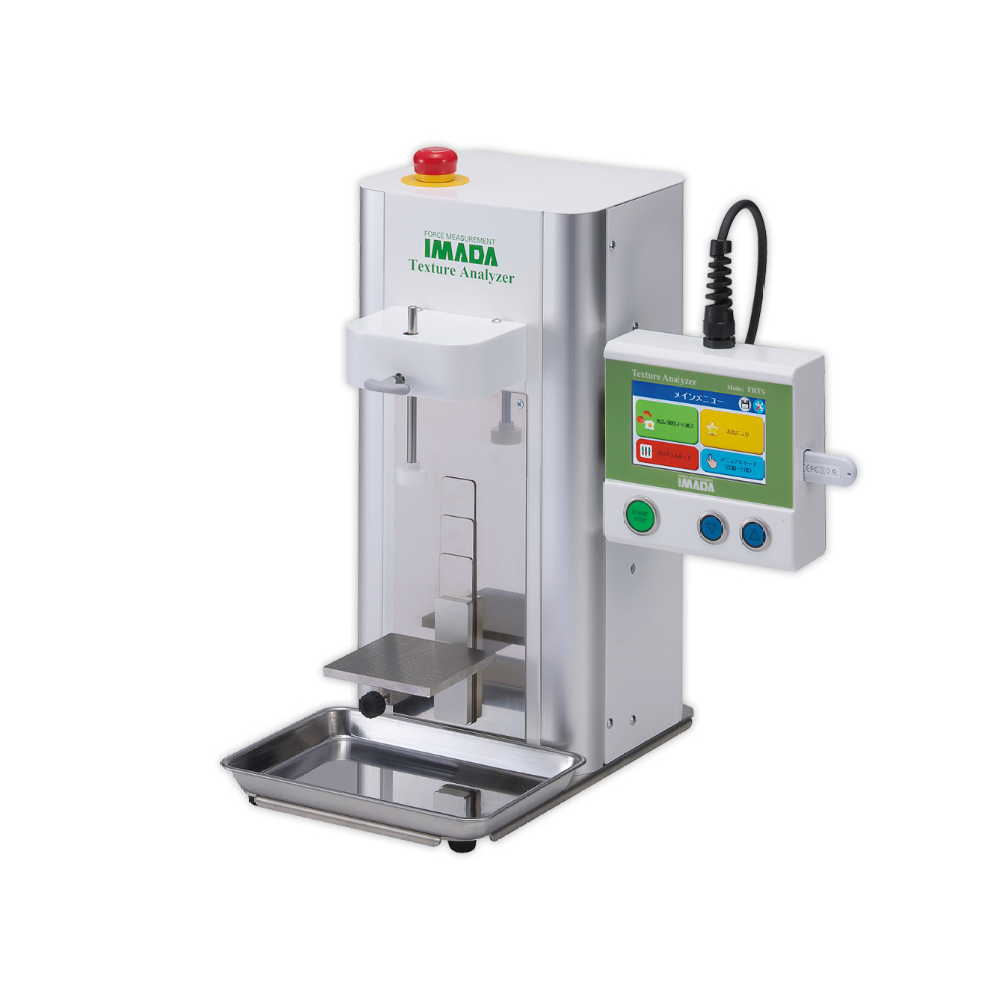

FRTS
Test Stand

max. Capacity of 5 N, 50 N or 100 N
For testing the texture of food. To control the quality, safety, hardness and feeling of food.

For single and continuous tests

Test stand with digital output signal for data processing with a PC

Special Features

  • Removable control panel with touch screen for easy use
  • Various probes are available for test stand FRTS
  • 3 different measuring ranges: 5 N, 50 N, 100 N
  • Easy Cleaning
  • Adjustable measuring programs:
    – choose a food
    – choose a standard
    – manual adjusting of the measuring conditions
  • 6 programs can be saved as favourites for easy access.
  • Test stand for single and continuous tests
  • Adjustable travel speed and stop position
  • USB interface for fast data transfer to PC; readings can be saved on a USB flash drive and transferred to PC.

Standard Features

  • Test stand FRTS for generating graphic charts
  • Sampling rate max. 1000/sec
  • Comparison analyse of max. 5 graphs
  • Storage of the data as CSV-file (compatible for MS Excel)
  • Save and print the graph of test results
  • Requires Microsoft.NET Framework 4 and Microsoft Internet Explorer 6.0 or later
  • Requires Windows Vista / Windows 7 / Windows 8 / Windows 8.1 /Windows 10

 Available Models

Model Capacity Description
FRTS-5N 5 N motorized
FRTS-50N 50 N motorized
FRTS-100N 100 N motorized
alternative
FCA-DSV-50N 50 N manual

SPECIFICATIONS

Measuring range: 5 N, 50 N or 100 N
Accuracy: Force: ±0.2 % full scale ±1 digit
Distance: 0.1 mm ±1 Digit
Measuring units: Force: N, kgf, lbf
Distance: mm, inch
Resolution: Force: 4 digits
Distance: 0.001 mm
Max. sample hight: 70 mm (distance between table and sample holder)
Stroke of the table: Approx. 100 mm
Travel speed: 0.1 ~ 10 mm/sec
Output signal: USB
Power supply: 100 – 240 V AC
Temperature: 0 – 40 °C
Air humidity: 20 – 80 % R. H. max.
Dimensions: 185 x 300 x 400 mm (LxWxH) – without control panel
Weight: Test stand: 7.7 kg
Control panel: 0.8 kg

Specifications subject to change without notice!

STANDARD ACCESSORIES

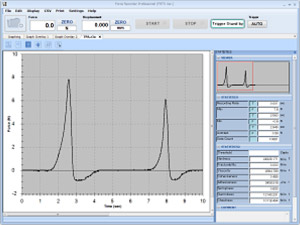

Force Recorder Professional (FRT Version)

– To make adjustments at the test stand
– Saving data as CSV file
– Force-displacement graph
– Force-Time graph

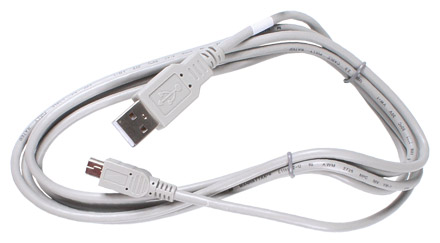

 USB Connecting cable

connecting the test stand to a PC.
Cable length 2 m











 FR-ES-60-20J and FR-ES-60-20S – Conical Probe

Polyacetal, Diameter 20 mm, Angel of inclination 60°, measuring range up to 50 N
Order number: FR-ES-60-20J

Stainless steel, Diameter 20 mm, Angel of inclination 60°, measuring range 100 N
Order number: FR-ES-60-20S





 FR-HA-20J and FR-HA-20S – Disk Probe

Polyacetal, Diameter 20 mm, measuring range up to 50 N
Order number: FR-HA-20J

Stainless steel, Diameter 20 mm, measuring range 100 N
Order number: FR-HA-20S



 FR-SR-20S – Sphere Probe

Diameter 20 mm
stainless steel
Order number: FR-SR-20S





 FR-KS-60-2030J and FR-KS-60-2030S – Wedge Probe

Polyacetal, Dimensions 30 x 20 mm, Angle of inclination 60°, measuring range up to 50 N
Order number: FR-KS-60-2030J

Stainless steel, Dimensions 30 x 20 mm, Angle of inclination 60°, measuring range 100 N
Order number: FR-KS-60-2030S











DELIVERY INCLUDES

Test stand FRTS, power cable, USB-cable, USB flash memory, CD-ROM with USB driver, software Force Recorder Professional, conical probe, disk probe, sphere probe and wedge probe, shafts (50 mm/100 mm), inspection data sheet and operating instructions in English
