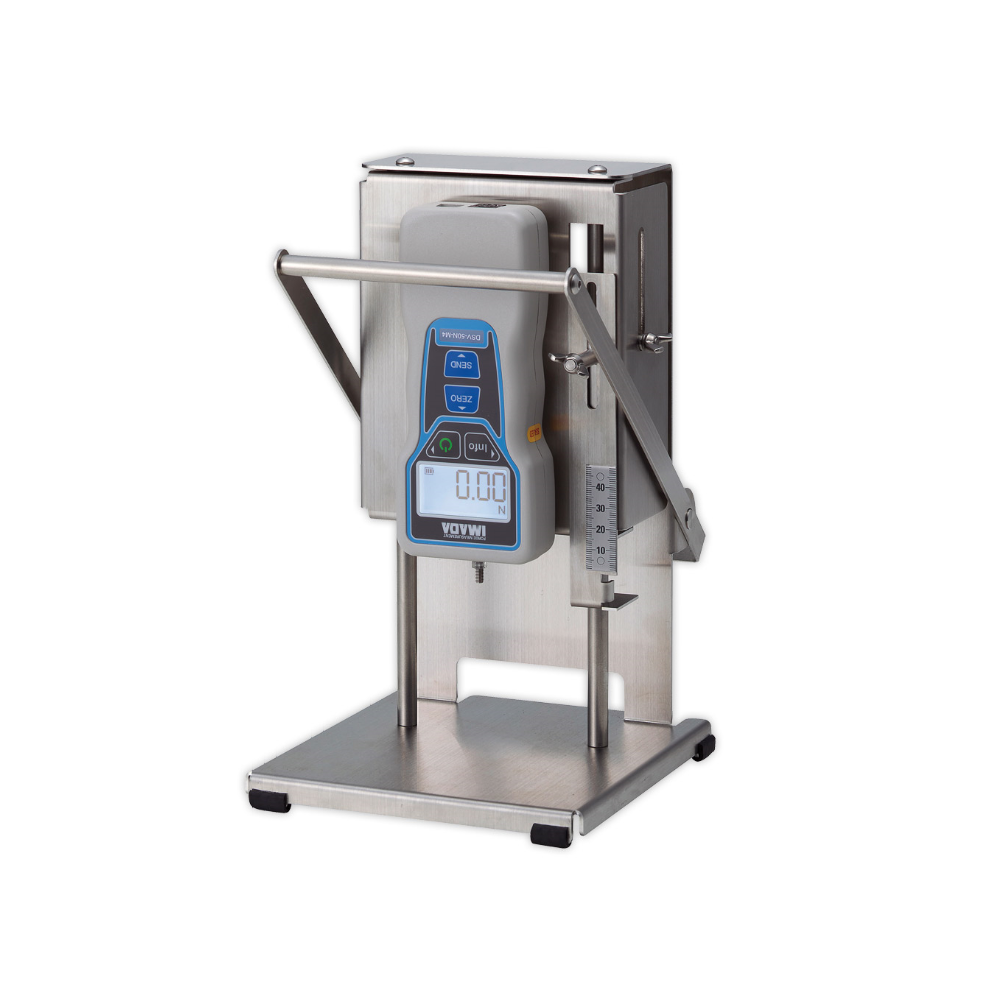

FCA-DSV-50N
Test Stand

max. Capacity 50 N
For testing the texture of food. To control the quality, safety, hardness and feeling of food

low cost device

Test stand with digital output signal for data processing with a PC

Special Features

  • easy operation
  • Various probes are available for test stand FCA-DSV-50N
  • Easy Cleaning
  • 2 operation modes:
    real time – display the actual tension or compression force
    peak force – to measure the peak force during a test
  • Force gauge DSV with high sampling rate of 1000 times/sec to measure the peak force
  • Display update 8 times/sec
  • Storage of 1000 values, which can be recalled:
    – on the display
    – data transfer to a PC
  • Output signal:
    – USB
    – RS-232 C
  • Force gauge DSV with user switchable units: N, gf (kgf) and ozf (lbf)
  • Programmable hight/low set-points for go/no-go testing: Display: good (OK)
  • »Zero Set« to zero the gauge in all operating positions
  • Free Manufacturers calibration report is included

Standard Features

  • Storage of the data as CSV-file (compatible for MS Excel)
  • Requires Microsoft.NET Framework 4 and Internet Explorer 6.0 or later
  • Requires Windows 7 / Windows 8 / Windows 8.1 /Windows 10

SPECIFICATIONS

Accuracy: ±0.2 % full scale ±1 digit
Measuring units: N, kgf, lbf
Display: LCD 4 digits
Overload capacity: 200 % full scale,
alarm signal at 90 % full scale,
alarm signal and flashing display at 110 % full scale
Plug gauge: M4 male thread
Memory: Internal memory for max. 1000 readings
Sampling rate: 1000 times/sec
A/D converter: 16 bit
Max. sample height: 80 mm (distance between table and sample holder)
Stroke: Max. 45 mm
Output signal: USB, RS-232 C
Low battery indicator: Display flashes
Power supply: Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light,
approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery
Temperature range: 5 – 45 °C
Air humidity: Max. 85 % RH
Dimensions: 178 x 175 x 296 mm (LxWxH)
Weight: Approx. 3 kg

Specifications subject to change without notice!

STANDARD ACCESSORIES

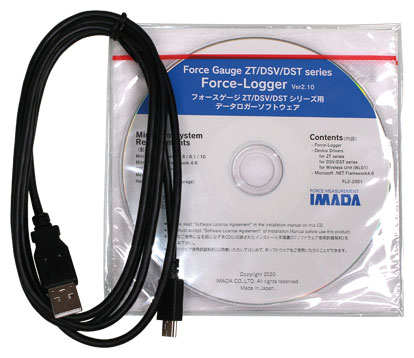

Force Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software ” Force Logger” for data transfer data evaluation on PC..

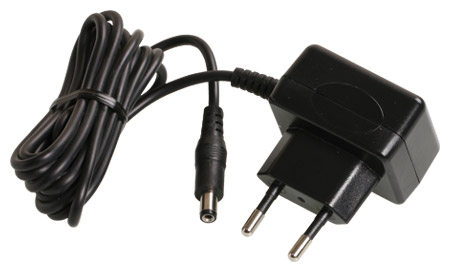

 ADS-230 – AC adapter

AC adapter for 100 – 240 V AC
Order number: ADS-230













 FR-HA-20J – Disk probe

Diameter 20 mm
Order number: FR-HA-20J

only FCA-DSV-50N-1!





 FR-KS-60-2030J – Wedge probe

Dimensions 30 x 20 mm
Angle of inclination 60°
Order number: FR-KS-60-2030J

only FCA-DSV-50N-2!

DELIVERY INCLUDES

Test stand FCA-DSV-50N, AC adapter, USB cable, CD-ROM with USB driver, Software Force Logger, disk probe (only FCA-DSV-50N-1), wedge probe (only FCA-DSV-50N-2), inspection data sheet and operating instructions in English.
