Large Flat Heads A/S

Test the compression and crush force of tablets, polyethylene terephthalate bottles etc.

A-40: Ø 40 mm, 200 N

A-60: Ø 60 mm, 200 N

S-40: Ø 40 mm, 1000 N

S-60: Ø 60 mm, 1000 N

More information in the PDF:

Test the bend strength of rods, strips, etc.

BT-500N: max. sample width 60 mm, capacity 500 N

BT-5000N: max. sample width 52 mm, capacity 5000 N

BT-5000N-CB: max. sample width 52 mm, capacity 5000 N

More information in the PDF:

Peeling Attachments GT

To measure the peeling force of laminated materials or electronic components on circuit boards etc.

GT-10: Pull test peeling

GT-20: Push test peeling

More information in the PDF:

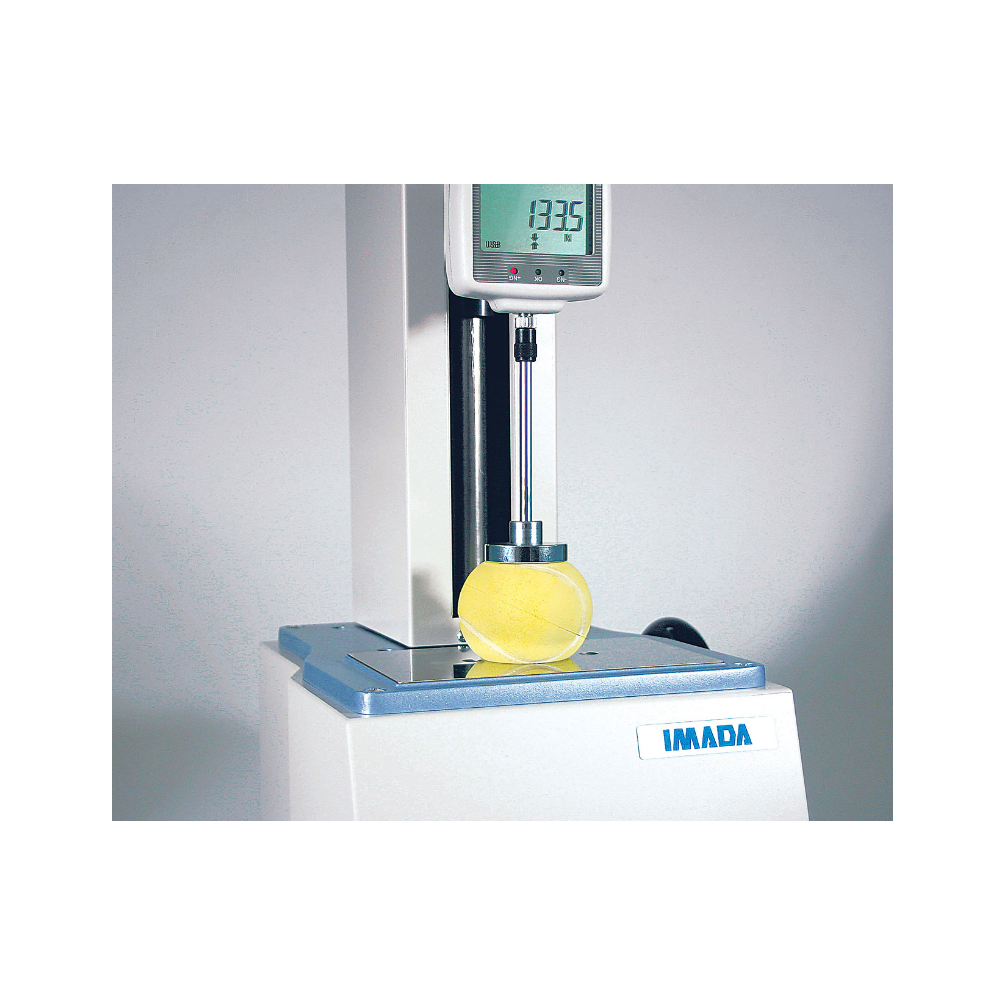

Compression Jig SQ/PC/SP

For measurement of many kinds of compression force and breaking strength a variety of shapes and sizes are designed for jigs..

Model SQ (square): 30×20, 75×50, 150×100 mm

Model PC (column): Ø 40, Ø 60, Ø 100 mm

Model SP (sphere): Ø 10, Ø 20, Ø 30 mm

More information in the PDF:

Penetrating Pin Gauges PG

To check the hardness of clay-like materials, the burst strength of plastic coverings, skins etc.

PG-2: Outer-Ø 2 mm, capacity 100 N

PG-3: Outer-Ø 3 mm, capacity 100 N

PG-4: Outer-Ø 4 mm, capacity 200 N

PG-5: Outer-Ø 5 mm, capacity 200 N

More information in the PDF:

Attachment for press PR

Fixture for burst strength test of tube and bag.

PR-500N: Max. sample size 120x194x105 mm (LxWxH), capacity 500 N

PR-2500N: Max. sample size 140x200x105 mm (LxWxH), capacity 2500 N

More information in the PDF:

Urethane Compression Jig UR

To simulate the operation of a switch or touch screen with a finger.

UR-8S: Hardness Shore A50

UR-8M: Hardness Shore A70

More information in the PDF:
