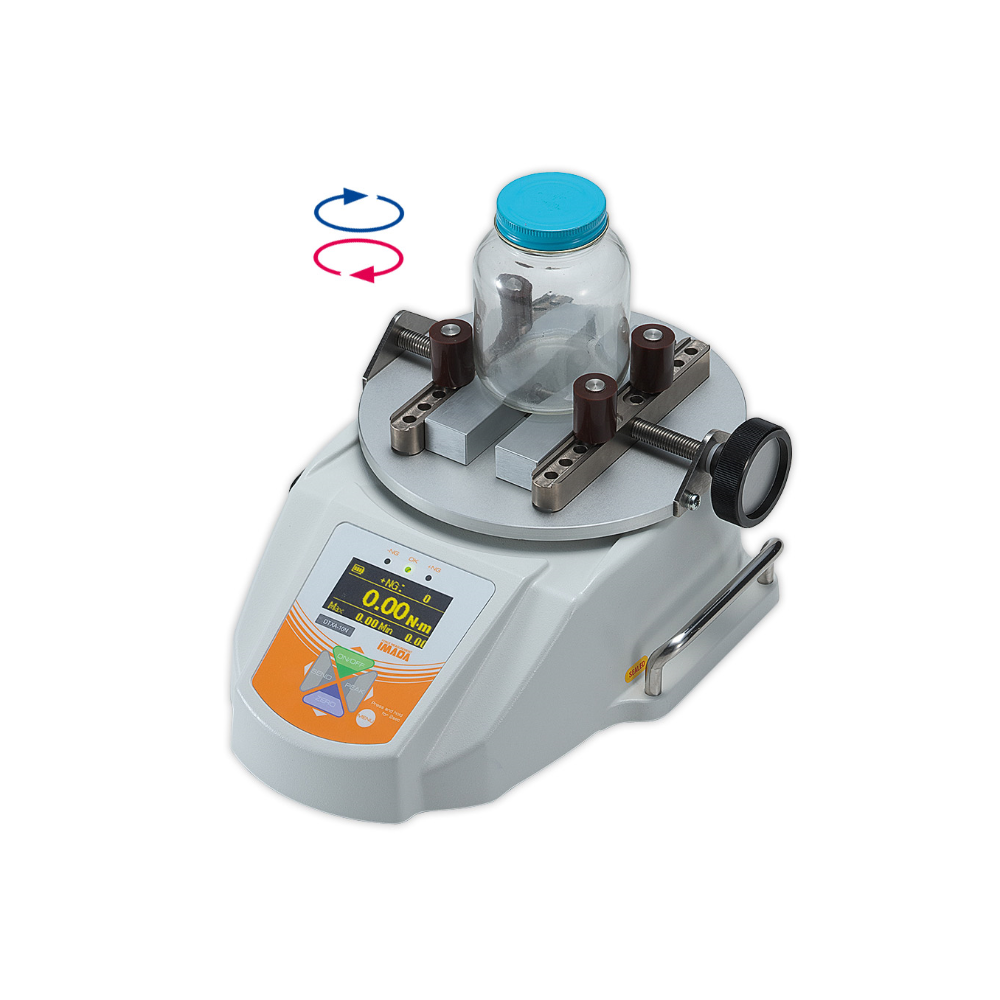

DTXS and DTXA
Torque Meter

Measuring ranges 50.00 Ncm/2.000 Nm/5.000 Nm/10.00 Nm
resolution 0.01 Ncm/0.001 Nm/0.01 Nm
Desktop-torque meter with memory and output signal for checking the opening and close torque of screw caps of bottles, glass jars, cosmetics etc.

For applications in beverage, cosmetic and pharmaceutical industry etc.

Torque meter with digital output signal for data processing with a PC

Special Features

  • Displaying the opening or closing torque (clockwise and counterclockwise torque)
  • 2 selectable modes:
    – Real Time: to display load transients
    – Peak: to capture the peak torque achieved during a test
  • Table for containers with Ø from 20 to 160 mm (small table for diameters from Ø 7 up to 50 mm is available) – standard unit
  • Programmable high/low setpoints for go/no-go testing with colour-coded indicators (orange, green, red) in the LED display and relay outputs
  • Torque meter with high internal sampling rate of 2000 times/sec
  • Display update time 16 times/sec
  • Torque meter with easy to read display (OLED)
  • Selectable units: Nm, kgfm, Lbf.in or Ncm, kgfcm, ozf.in
  • Storage of 1000 values for recall:
    – on the display
    – for data transfer to a PC
    – for printing with report
  • 3 output signals: USB, RS-232 and analog
  • Special features of model DTXA in comparison to standard unit DTXS
  • Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec).
  • 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  • Indication of two peak values per measurement, e. g. closure with rated break point

Standard Features

  • Torque meter for fast, accurate measuring
  • High repeatability
  • Easy to use
  • Inclusive 30 days trial version of Software »Force Recorder Professional«
  • Manufacturer`s certificate with measured values is included

 Available Models – Standard Unit

Model Model Measuring Range
 Resolution
DTXS-0.5N* DTXA-0.5N* 0 – 50.00 Ncm 0.01 Ncm
DTXS-2N** DTXA-2N** 0 – 2.000 Nm (200 Ncm) 0.001 Nm (0.1 Ncm)
DTXS-5N** DTXA-5N** 0 – 5.000 Nm (500 Ncm) 0.001 Nm (0.1 Ncm)
DTXS-10N** DTXA-10N** 0 – 10.00 Nm (1000 Ncm) 0.01 Nm (1 Ncm)

 * includes table DT-STL
** includes table DT-TB

 Available Models – Self Configurated

Model Model Description
DTXS-0.5N-Z DTXA-0.5N-Z without table
DTXS-2N-Z DTXA-2N-Z without table
DTXS-5N-Z DTXA-5N-Z without table
DTXS-10N-Z DTXA-10N-Z without table

SPECIFICATIONS

Accuracy: ±0.5 % full scale ±1 digit
Measuring frequency: 2000 times/sec
Selectable units: Nm, Ncm, kgfm, kgfcm, Lbf.in and ozf.in

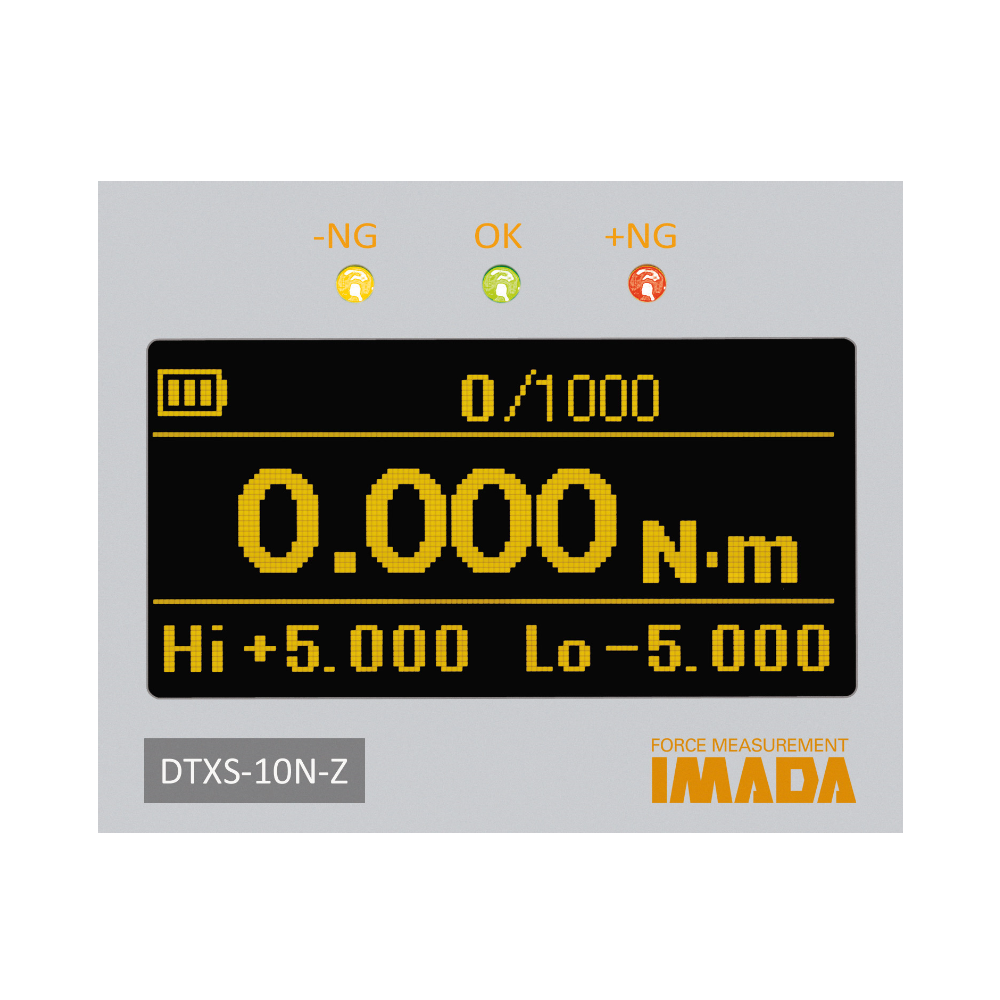

Display: OLED, 4 digit, 14 mm high
Overload capacity: Approx. 200 % full scale,
flashing display beyond 110 % full scale
Display update: 16 times/sec
Memory: Internal memory for max. 1000 values (clockwise or counter clockwise torque and peak values)
Setpoints: MIN (-NG), MAX (+NG) programmable, with output signal

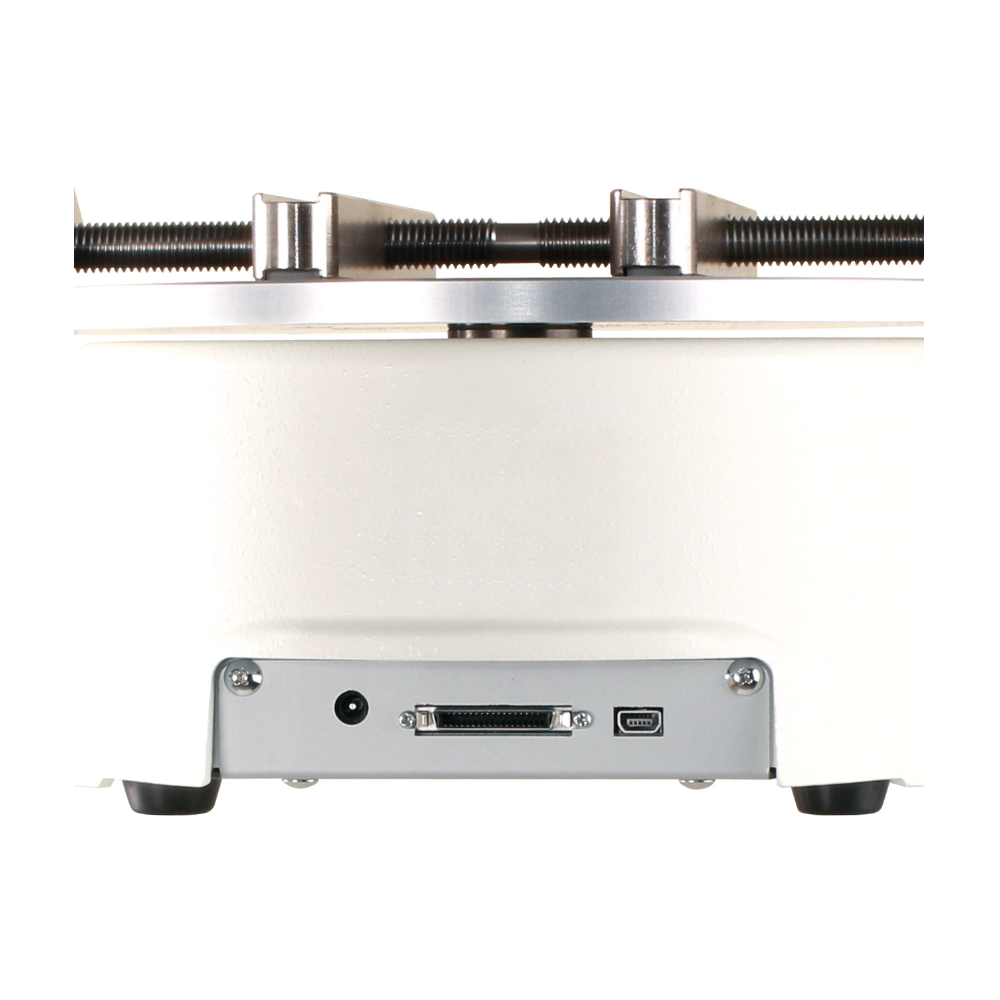

Output signal: USB
RS-232 (8, 1, N, 19200)
analog ±2 V DC
Open Collector 4x (+NG, Ok, -NG, OVL), max. 30 V DC, 10 mA
overload signal
Temperature range: 0 – 40 °C
Air humidity: 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 hours continuous use,
approx. 2 h charging time) and/or 100 – 240 V AC adapter
and two adapters (EU/USA)
Dimensions: 305 x 233 x 127 mm (LxWxH)
Weight: net (gross.): Approx. 4900 g (5900 g)
Additional functions DTXA in comparison to standard torque meter DTXS:
Torque-angle-measurement: In combination with a test stand with linear scale torque-angle-measurements are possible e.g. MTS-10N-RA
Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices
(e.g. PC, printer) for data recording
Extended peak mode: Indication of two peak values per measurement

Specifications subject to change without notice!

POSSIBLE TABLES

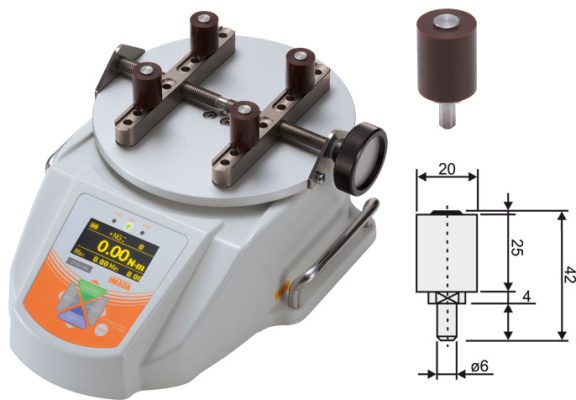

DT-TB – Table with 25 mm Urethane Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-P) with urethane surface, length 25 mm.
Recommended for PET bottles, cans etc.
Order number: DT-TB

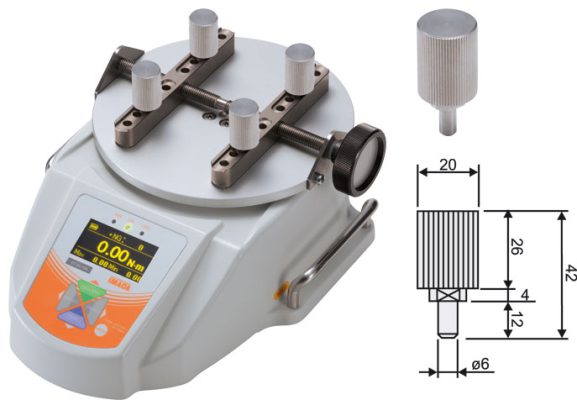

DT-TB-01 – Table with 26 mm V2A Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-01P) from stainless steel V2A, corrugated surface, length 26 mm.
Recommended for aluminium cans, hard plastic containers etc.
Order number: DT-TB-01

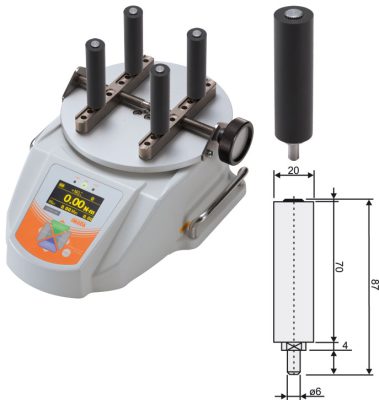

DT-TB-02 – Table with 70 mm Urethane Pins

not for DTXS-0.5N and DTXA-0.5N
For samples with Ø from 20 up to 160 mm.
Includes table pins (TB-02P) with urethane surface, length 70 mm.
Recommended for conductor plates, lens of cameras, large bottles, etc.
Order number: DT-TB-02

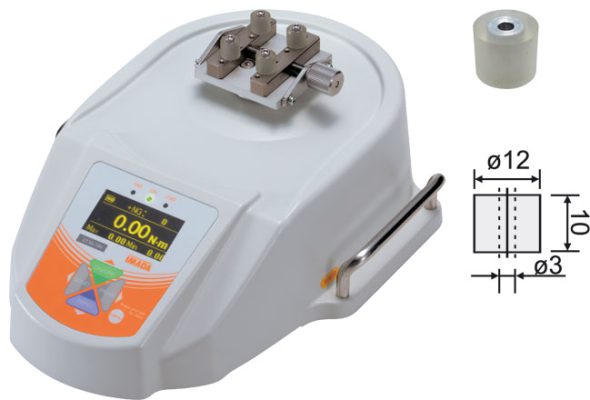

DT-ST – Small Table with 10 mm Urethane Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for locks, containers for eye drops, etc.
Order number: DT-ST

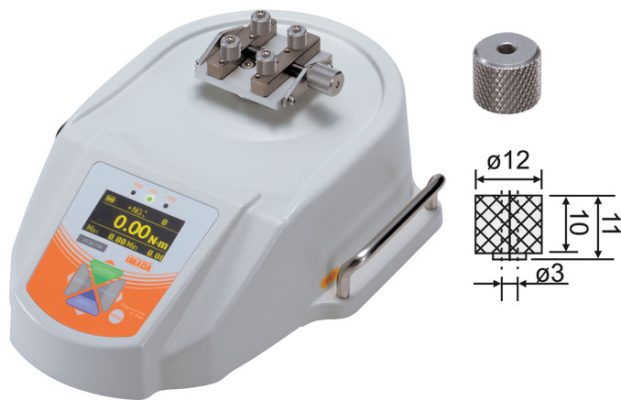

DT-ST-01 – Small Table with 10 mm V2A Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for electronic components, plugs, etc.
Order number: DT-ST-01

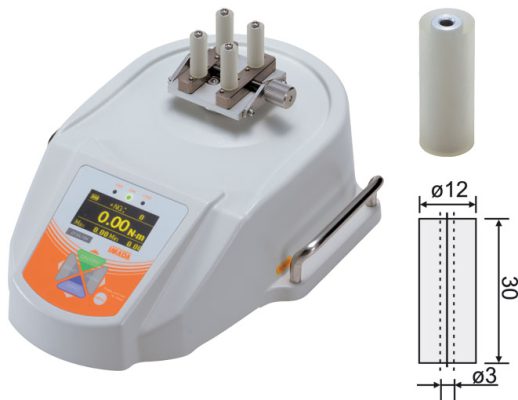

DT-ST-02 – Small Table with 30 mm Urethane Pins for max. 5 Nm nominal load

Only for DTXS-2N, DTXS-5N, DTXA-2N and DTXA-5N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: DT-ST-02

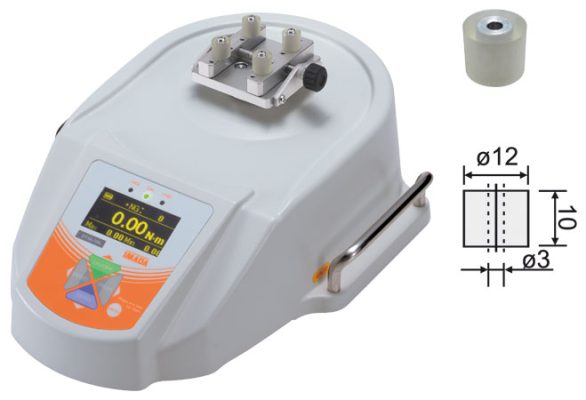

DT-STL – Small Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for plastic tubes, etc.
Order number: DT-STL

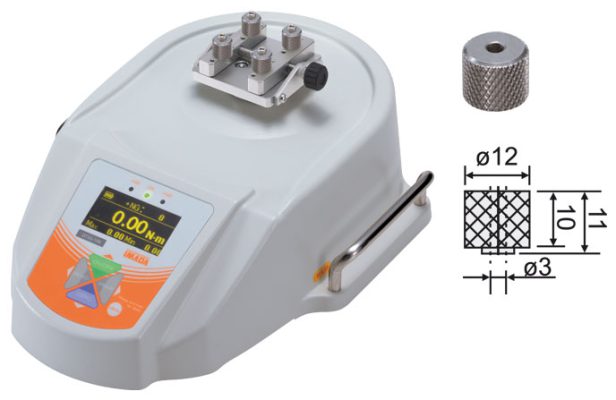

DT-STL-01 – Small Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: DT-STL-01

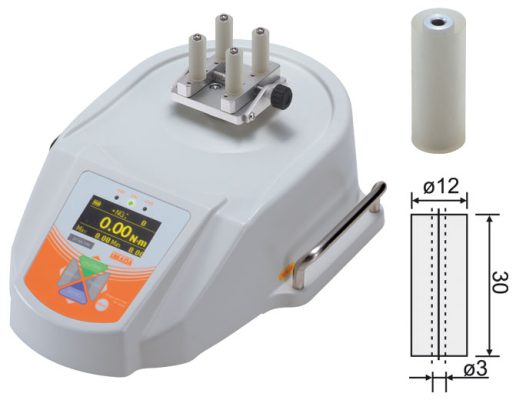

DT-STL-02 – Small Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for cosmetic containers, etc.
Order number: DT-STL-02

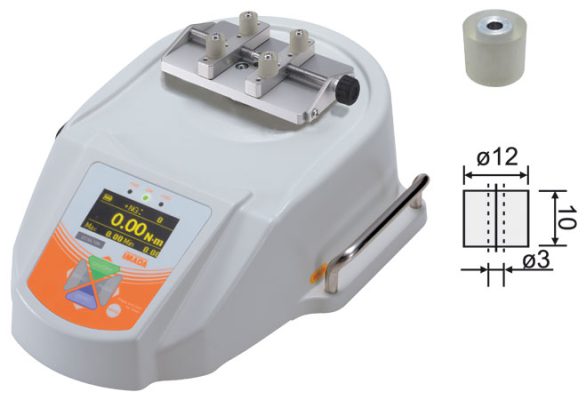

DT-STLW – Small, wide Table with 10 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-P) with urethane surface, length 10 mm.
Recommended for volume dials, etc.
Order number: DT-STLW

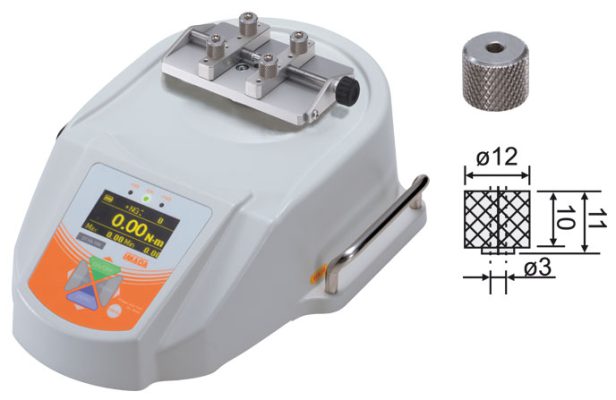

DT-STLW-01 – Small, wide Table with 10 mm V2A Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 10 up to 100 mm.
Includes table pins (ST-01P) from stainless steel V2A, corrugated surface, length 10 mm.
Recommended for motors, etc.
Order number: DT-STLW-01

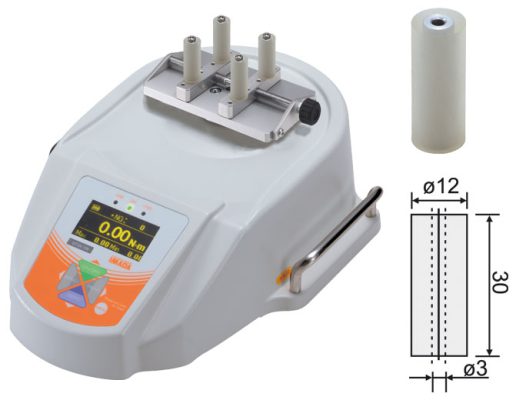

DT-STLW-02 – Small, wide Table with 30 mm Urethane Pins for max. 2 Nm nominal load

Only for DTXS-0.5N, DTXS-2N, DTXA-0.5N and DTXA-2N
For samples with Ø from 7 up to 50 mm.
Includes table pins (ST-02P) with urethane surface, length 30 mm.
Recommended for bottle shaped containers, etc.
Order number: DT-STLW-02















DT-DC-6.5 – Torque Pin Chuck Ø 0.5 up to 6.5 mm

Infinitely adjustable, Ø 0.5 up to 6.5 mm
Order number: DT-DC-6.5

 DT-DC-6.5SUS – Torque Pin Chuck (V2A) Ø 0.5 up to 6.5 mm

Infinitely adjustable, Ø 0.5 up to 6.5 mm, stainless steel (V2A)
Order number: DT-DC-6.5SUS

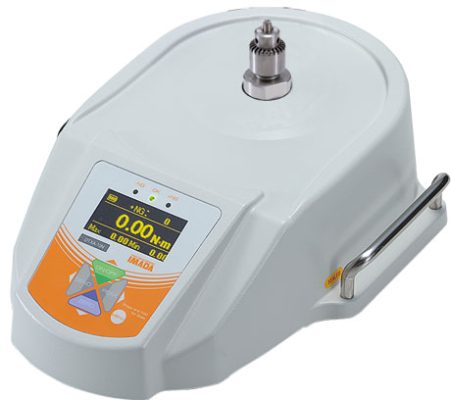

 DT-DC-4 – Torque Pin Chuck Ø 0.5 up to 4 mm

Infinitely adjustable, Ø 0.5 up to 4 mm (for torque meters with 2 or 5 Nm nominal load).
Order number: DT-DC-4

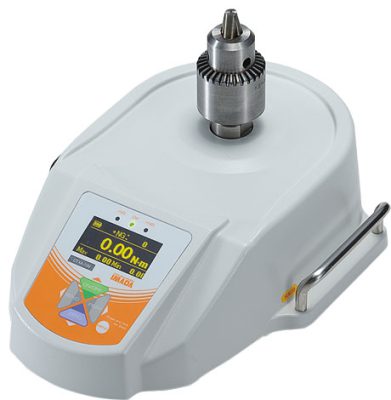

DT-DC-13 – Torque Pin Chuck Ø 1.2 up to 12 mm

Infinitely adjustable, Ø 1.2 up to 13 mm (for torque meters with 5 or 10 Nm nominal load).
Order number: DT-DC-13

STANDARD ACCESSORIES

Software ZT Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “ZT-Logger” for data transfer

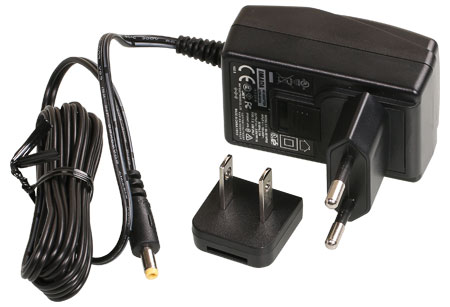

 ADW-6010 – AC Adapter

AC adapter for 100 – 240 V AC
Order number: ADW-6010

OPTIONAL ACCESSORIES

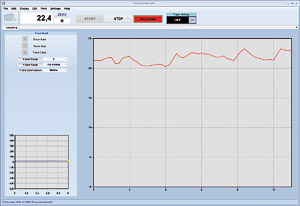

SW-21 – Force Recorder Light

Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-21





 SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22

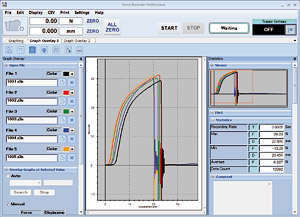

 SW-23 – Force Recorder Professional

Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-23

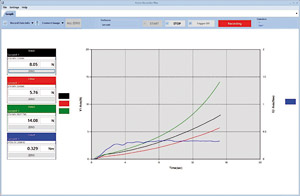

SW-26 – Force Recorder Plus

Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 8/8.1/10
Order number: SW-26

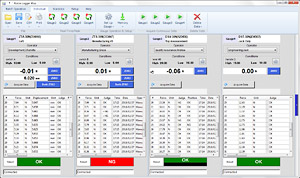

SW-13 – Force Logger Plus

Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-13

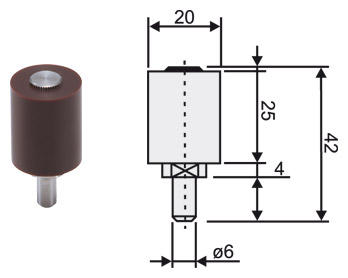

TB-P – Table Pins 25 mm Urethane

1 set (4 pieces), 25 mm long with urethane surface for the table.
Recommended for PET bottles, cans etc.
Order number: TB-P

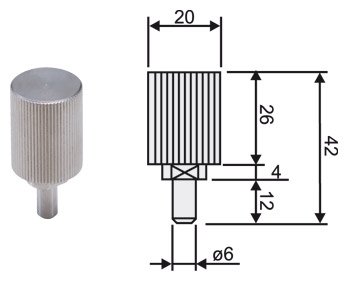

 TB-01-P – Table Pins 26 mm V2A

1 set (4 pieces), 26 mm long from stainless steel for the table.
Recommended for aluminium cans, hard plastic containers etc.
Order number: TB-01P













 TB-02-P – Table Pins 70 mm Urethane

1 set (4 pieces), 70 mm long with urethane surface for the table.
Recommended for conductor plates, lens of cameras, large bottles, etc.
Order number: TB-02P





















ST-P – Table Pins 10 mm Urethane

1 set (4 pieces), 10 mm long with urethane surface for the small table.
Recommended for locks, containers for eye drops, etc.
Order number: ST-P

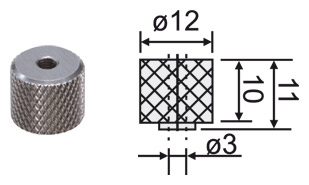

 ST-01P – Table Pins 10 mm V2A

1 set (4 pieces), 10 mm long from stainless steel for the small table.
Recommended for electronic components, plugs, etc.
Order number: ST-01P









ST-02P – Table Pins 30 mm Urethane

1 set (4 pieces), 30 mm long with urethane surface for the small table.
Recommended for cosmetics boxes, door knobs, lamps, etc.
Order number: ST-02P

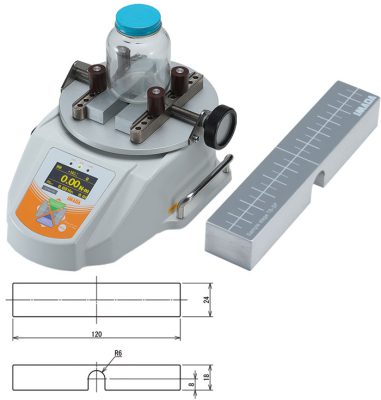

TB-SP – Sample Stage

To get a flat working face on the table, for placing the sample. 1 set = 2 pieces.
Only for DT-TB, DT-TB-01 and DT-TB-02
Order number: TB-SP

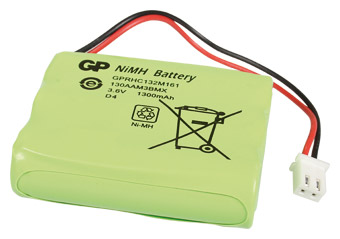

40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I

DELIVERY INCLUDES

Torque meter, 1 table DT-TB, 1 set spring pins 25 mm long, AC adapter, manufacturer`s inspection certificate, USB cable 1.5 m, USB adapter (only DTXA), CD-ROM with driver, simple software for communication and data logging »ZT-Logger« operating instructions in English
