ZTA-DPU
Force Gauge

12 measuring ranges available
from 0 – 2 N up to 0 – 20 kN
Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry, which need a fast measuring frequency

High quality force measuring unit with interface (RS-232, USB and analog) and memory This device has a fast measuring frequency for exact acquisition of peak values

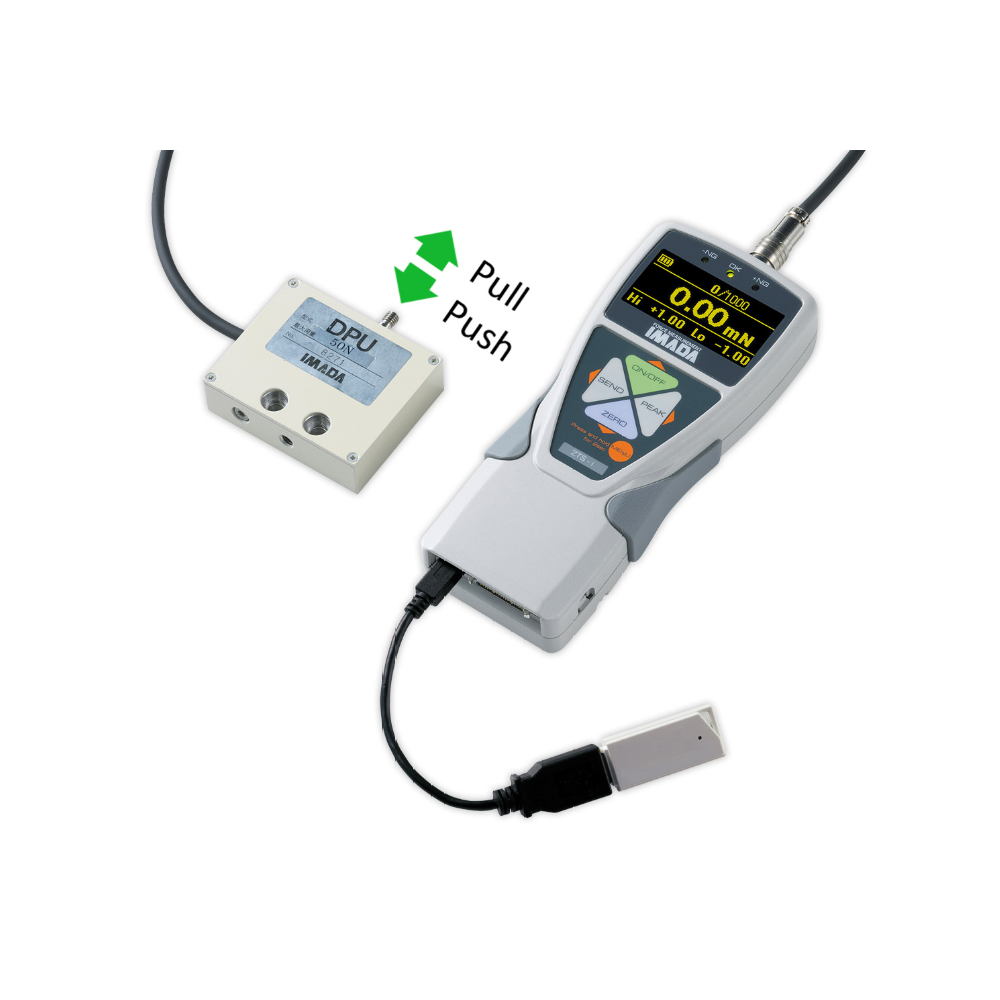

Force gauge with separate remote load sensor

Special Features

  1. 2 operation modes:
    real time – display the actual tension or compression force
    peak force – to measure the peak force during a test
  2. Force gauge ZTA-DPU with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values
  3. Display update time 16 times/sec
  4. Easy to read display (OLED)
  5. The header and footer of the display can be customized, as well as switched on and off
  6. Programmable high/low set-points for go/no-go testing:
    with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs
  7. Storage of 1000 values, which can be recalled:
    – on the display
    – data transfer to a PC
    – for printing with report

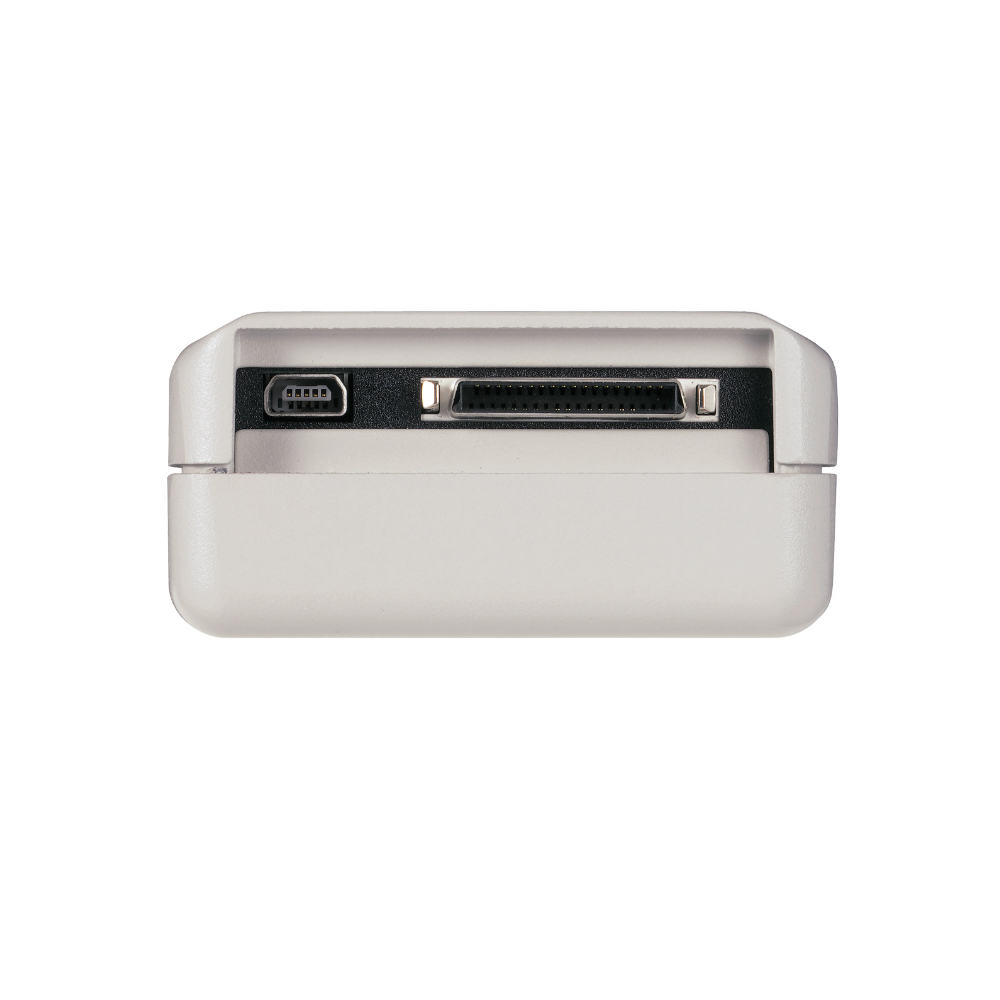

  8. Output signal:
    – RS-232 for connecting to a PC
    – USB
    – analog ±2 V DC

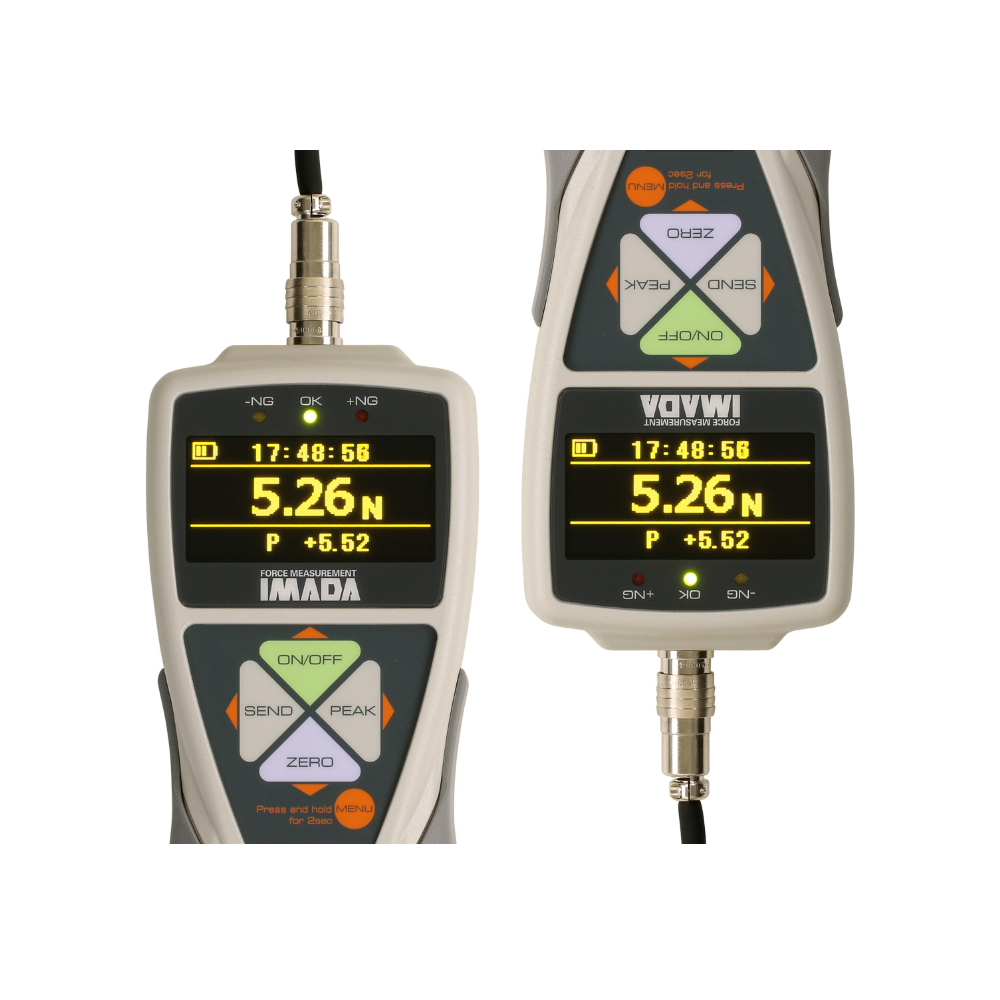

  9. Display can be reversed for inverted use; e. g. on vertical test stand
  10. »Zero Set« to zero the gauge in all operating positions
  11. Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX
  12. Force gauge ZTA-DPU with user switchable units: N, kgf (gf) and lbf (ozf)
  13. Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)
  14. Manufacturers inspection certificate is included

Special features in comparison to standard unit ZTS-DPU

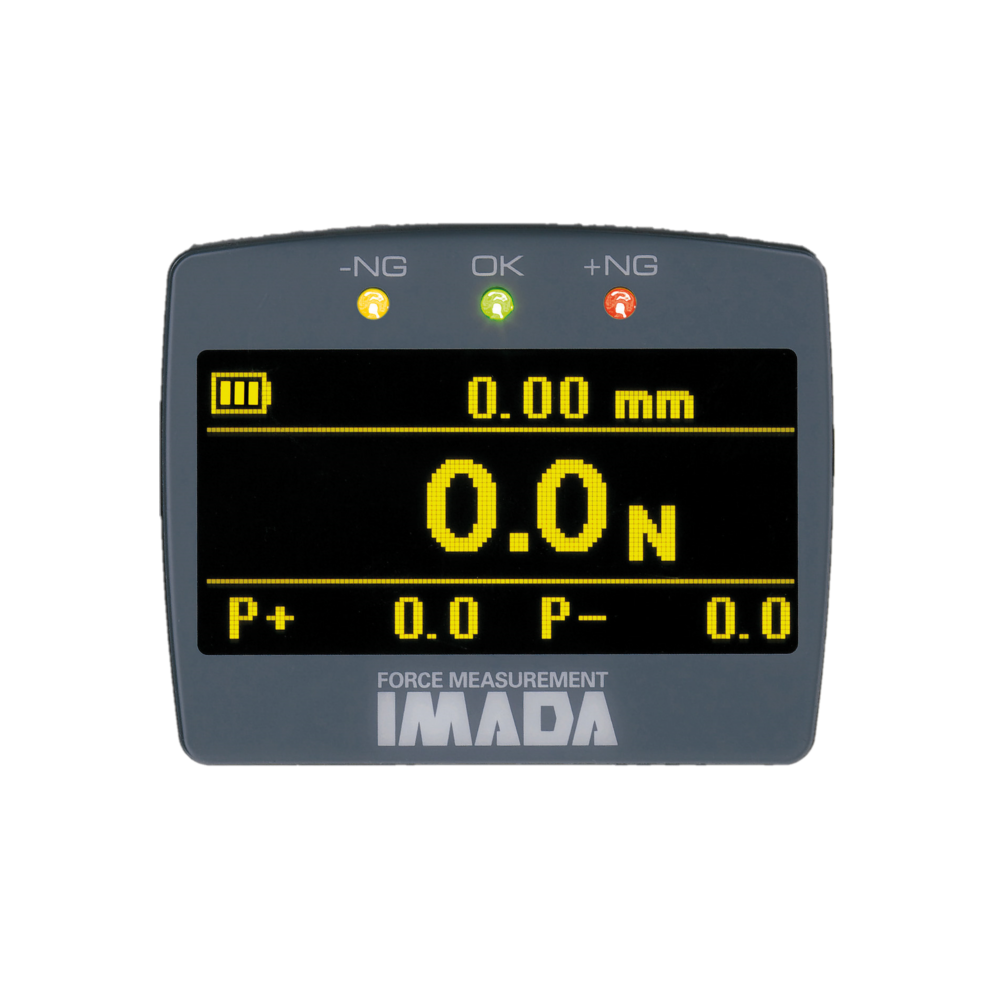

  1. In combination with a test stand with linear scale, force-displacement measurements are possible.
  2. Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
  3. 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  4. Indication of two peak values per measurement.

Standard Features

  • Force gauge ZTA-DPU (for exact measuring with an accuracy of ±0.2 % full scale
  • Approx. 200 % overload protection
  • For hand-held use or mounting on test stand
  • Ergonomically-designed, rugged die-cast aluminium housing
  • Non-slip rubber grip
  • Operates on rechargeable battery and/or AC adapter
  • Full set of accessories included

 Available Models

Model Capacity N Resolution Capacity gf; kgf Capacity ozf; lbf Measuring shaft
ZTA-2-DPU 0 – 2.000 N 0.001 N 0 – 200.0 gf 0 – 7.00 ozf M6
ZTA-5-DPU 0 – 5.000 N 0.001 N 0 – 500.0 gf 0 – 18.00 ozf M6
ZTA-20-DPU 0 – 20.00 N 0.01 N 0 – 2.000 kgf 0 – 4.400 lbf M6
ZTA-50-DPU 0 – 50.00 N 0.01 N 0 – 5.000 kgf 0 – 11.00 lbf M6
ZTA-100-DPU 0 – 100.0 N 0.1 N 0 – 10.00 kgf 0 – 22.00 lbf M6
ZTA-200-DPU 0 – 200.0 N 0.1 N 0 – 20.00 kgf 0 – 44.00 lbf M6
ZTA-500-DPU 0 – 500.0 N 0.1 N 0 – 50.00 kgf 0 – 110.0 lbf M6
ZTA-1000-DPU 0 – 1000 N 1 N 0 – 100.0 kgf 0 – 220.0 lbf M10
ZTA-2000-DPU 0 – 2000 N 1 N 0 – 200.0 kgf 0 – 440.0 lbf M10
ZTA-5000-DPU 0 – 5000 N 1 N 0 – 500.0 kgf 0 – 1100.0 lbf M10
ZTA-10k-DPU* 0 – 10 kN 10 N 0 – 1000.0 kgf 0 – 2200.0 lbf M18 female screw
ZTA-20k-DPU* 0 – 20 kN 10 N 0 – 2000.0 kgf 0 – 4400.0 lbf M18 female screw

 *Note:
No attachment is included with model of measuring range 10 kN and higher. These models do not have measuring shaft, but there is a female thread in place of a measuring shaft.

SPECIFICATIONS

Measuring principle: Bidirectional force sensor with strain gauge
Accuracy: ±0.2 % full scale ±1 digit
Measuring units: N, kgf (gf), lbf (ozf) selectable
Display: OLED, 4 digit
Sampling rate: 2000 times/sec
Overload capacity: Approx. 200 % full scale,
symbol flashes at 110 % full scale
Display update rate: 16 times/sec
Plug gauge: Measuring range up to 500 N: M6 male thread
Measuring range 1000 N up to 5000 N: M10 male thread
Measuring range 10 kN and 20 kN: M18 female thread
Memory: Internal memory for max. 1000 values
recallable peak – compression/tension
Setpoints: Programmable Max/Min setpoint with colour-coded indicators in the LED display
Output signal setpoints: Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal: RS-232 (8, 1, N, 19200),
analog ±2 V DC,
USB
Temperature range: 0 – 40 °C
Air humidity: 20 – 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 h continuous use,
approx. 2 h charging time) and/or 100 – 240 V AC adapter
and two adapters
Housing material: Die-cast aluminium
Dimensions: 191 x 75 x 34 mm (LxWxH)
Load cell: See dimensions
Weight, net (gross): Approx. 490 g

Additional functions in comparison to standard unit ZTS

Force-displacement measurement: In combination with a test stand with linear scale force displacement measurements are possible
Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
Extended peak mode: Indication of two peak values per measurement

Specifications subject to change without notice!

STANDARD ACCESSORIES

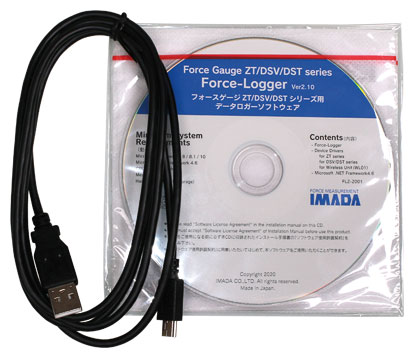

Force Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “Force Logger” for data transfer



















ADW-6010 – AC Adapter

AC adapter for 100 – 240 V AC
Order number: ADW-6010

















Inspection Certificate

Delivery includes a manufacturers inspection certificate free of charge

STANDARD ATTACHMENT UP TO 500N

A-1 and S-1 – Small Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-1
Steel, M6, measuring range from 100 N to 500 N
Order number: S-1











 A-2 and S-2 – Flat Tip

Aluminium, M6, Ø 13 mm, measuring range up to 100 N
Order number: A-2
Steel, M6, Ø 16 mm, measuring range from 100 N to 1000 N
Order number: S-2





 A-3 and S-3 – Conical Tip

Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-3
Steel, M6, 85°, measuring range from 100 to 1000 N
Order number: S-3







A-4 and S-4 – Chisel Tip

Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-4
Steel, M6, 85°, measuring range from 100 N to 1000 N
Order number: S-4







 A-5 – S-5 – Notched Tip

Aluminium, M6, 90°, measuring range up to 100 N
Order number: A-5
Steel, M6, 90°, measuring range from 100 N to 1000 N
Order number: S-5







 A-6 and S-6 – Extension Shaft

Aluminium, M6, 80 mm, measuring range up to 100 N
Order number: A-6
Steel, M6, 100 mm, measuring range from 100 N to 1000 N
Order number: S-6

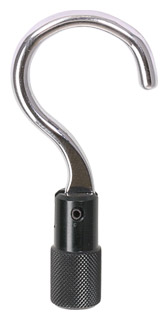

 A-7 and S-7 – Large Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-7
Steel, M6, measuring range from 100 N to 1000 N
Order numbr: S-7

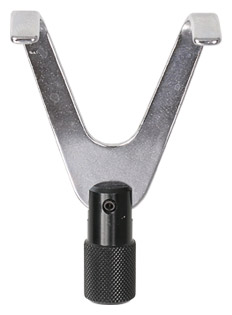

A-8 – S-8 – Y-Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-8
Steel, M6, measuring range from 100 N to 1000 N
Order number: S-8

STANDARD ATTACHMENT UP TO 1000N and 5000N

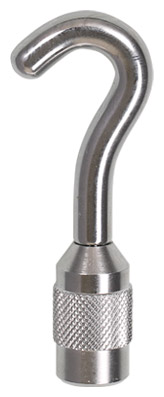

B-1 – Small Hook

Steel, M10
Order number: B-1





















B-2 – Flat Tip

Steel, M10, Ø 23 mm
Order number: B-2







 B-3 – Conical Tip

Steel, M10, 85°
Order number: B-3











B-4 – Chisel Tip

Steel, M10, 85°
Order number: B-4











B-5 – Notched Tip

Steel, M10, 85°
Order number: B-5











B-6 – Extension Shaft

Steel, M10, 100 mm long
Order number: B-6

OPTIONAL ACCESSORIES

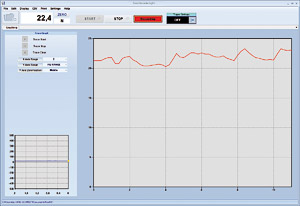

SW-21 – Force Recorder Light

Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-21

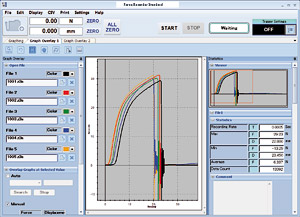

 SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22









 SW-23 – Force Recorder Professional

Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-23

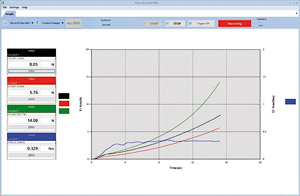

SW-26 – Force Recorder Plus

Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 8/8.1/10
Order number: SW-26

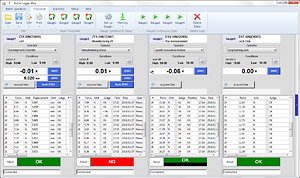

SW-13 – Force Logger Plus

Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-13





Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for force gauge ZTA-DPU in our programm.

You can find further information at clamps and testing devices

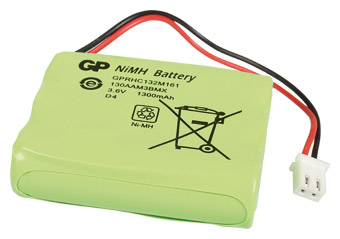

40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I











 Calibration Certificate

Calibration certificate with calibration report is optional available.

CONNECTION CABLES

CB-108 – Connecting Cable analog

Connecting cable for analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108









 CB-208 – Connecting Cable RS-232

Connecting cable for RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208









 CB-508 – Connecting Cable MX

Connecting cable for force gauge with test stand (Series MX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order number: CB-508









CB-528 – Connecting Cable MX2, EMX

Connecting cable for force gauge ZTA-DPU with test stand (Series MX2 and EMX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order Number: CB-528









CB-718 – Connecting Cable EMX (firmware 2.0 or later), MX2-FA

Connecting cable for force gauge ZTA-DPU with test stand (series EMX-FA and MX2-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-718









CB-728 – Connecting Cable EMX-FA (firmware earlier than 2.0)

Connecting cable for force gauge ZTA-DPU with test stand (EMX-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-728









CB-808 – Connecting Cable trigger input

Connecting cable for trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
Order number: CB-808









 CB-908 – Connecting Cable with open ends

Connecting cable with open ends (37-pin) for all available output signals to connect an unique device to force gauge ZTA-DPU.
Order number: CB-908

DELIVERY INCLUDES

Indicator and separate force sensor with carrying case, standard accessories (depending on model),
AC adapter, USB connecting cable, 1 CD-ROM with USB-driver and simple software for data transfer,
USB-adapter, manufacturers inspection certificate, operating instruction in German or English (as requested).
From tension range 10 kN and higher, there are no accessories.
