SH

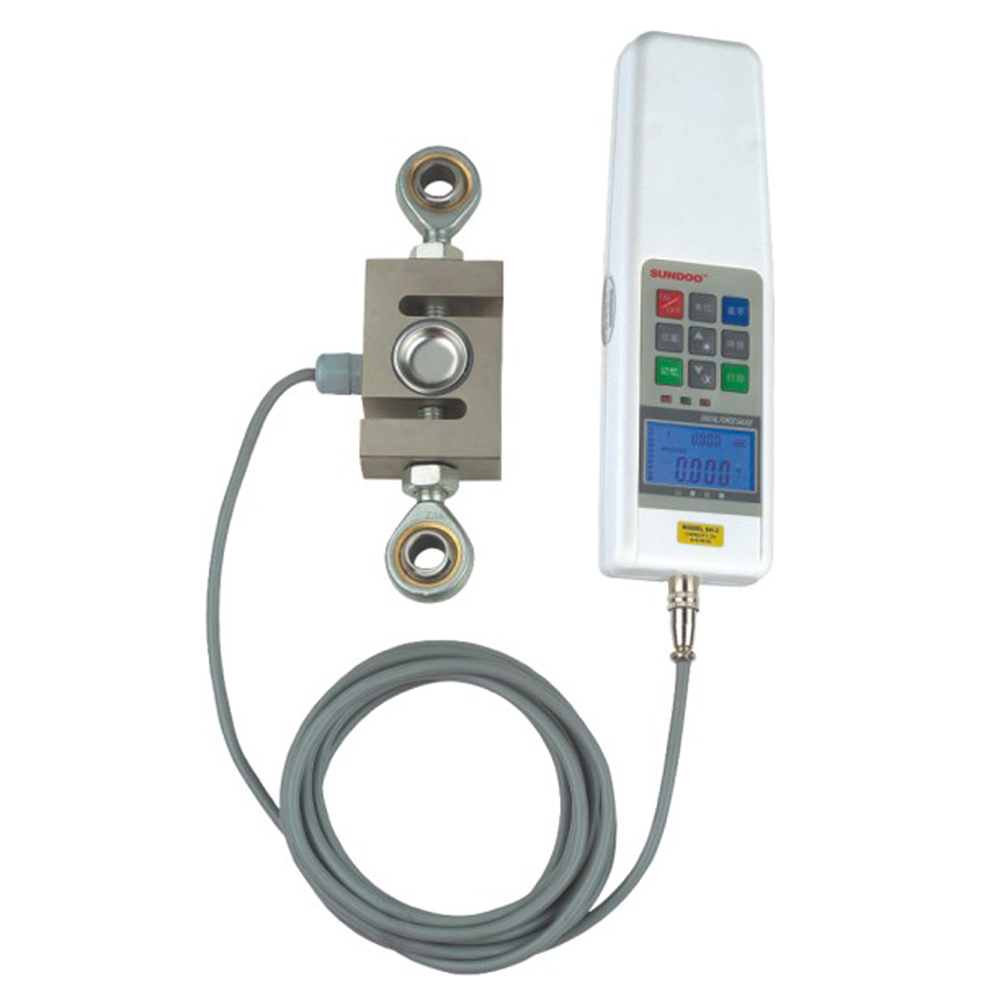

S Type Sensor Outs-Digital Push Pull Force Gauge

Brief Introduction:
Product Name:SH Digital Push Pull Force Gauge (S Type Sensor Outs
SH Series Digital Push Pull Force Gauge is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.

PRODUCT TRAIT

  • Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);
  • Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
  • Memory function: Memory 10 testing data, and calculate the average;
  • Units conversion: Converting three units(N, kgf, lbf) automatically;
  • LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;
  • Automatic power off function: Power off time (1-60 minutes) can be set by user;
  • RS-232C output: Transmitting the data to Printer or computer, saving it into “Excel” for analysis or printing;

Note:Due to updates and improvement,products shape and color depends on specific products.Please contact us if you have any problems.
