RZTA-1000N
Force Gauge

Measuring range available
0 – 1000 N
Electronic force gauge for determination of muscle strength, useable for numerous applications in rehabilitation and physical therapy

High quality force measuring unit with interface (RS-232, analog and USB) and memory This device has a fast measuring frequency for exact acquisition of peak values

Up to 2000 readings/s can be acquired and transferred via USB interface for data processing to a PC

Special Features

  • 2 operation modes:
    real time – display the actual tension or compression force
    peak force – to measure the peak force during a test
  • Force gauge RZTA-1000N with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values
  • Display update time 16 times/sec

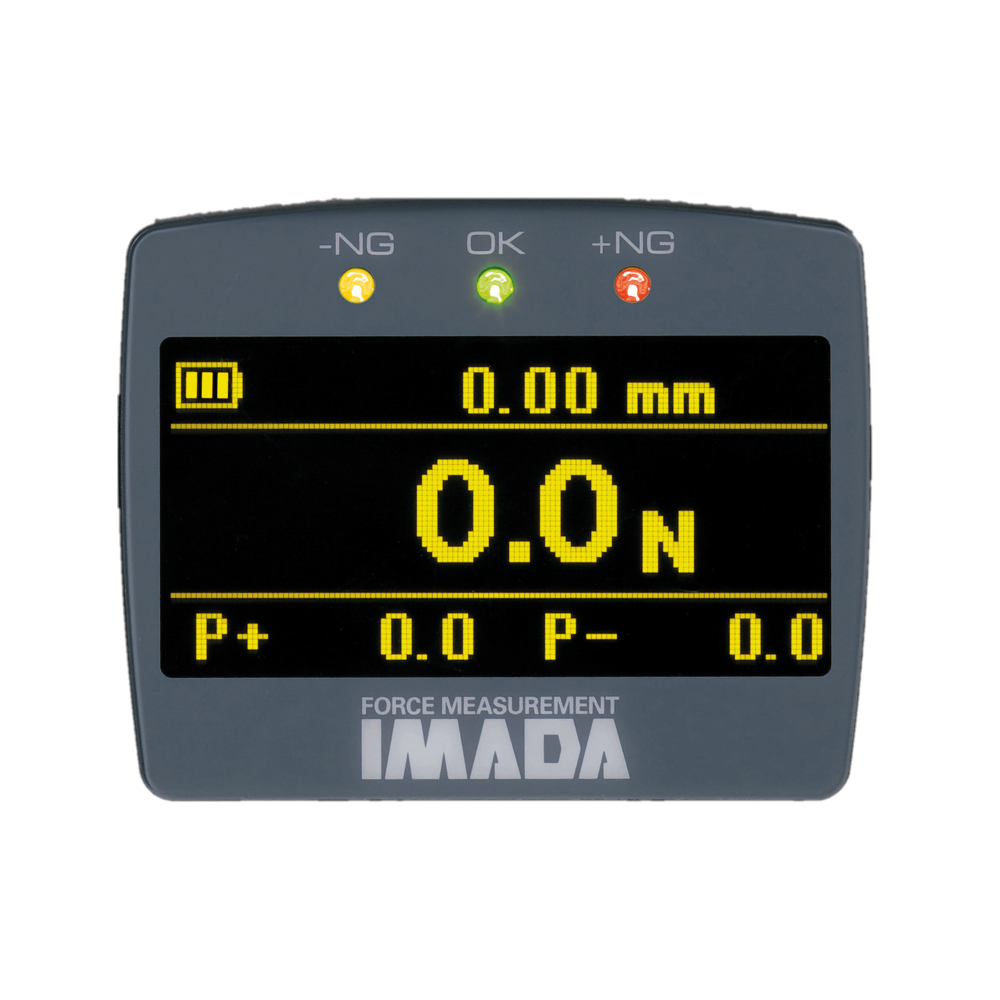

  • Easy to read display (OLED)
  • The header and footer of the display can be customized, as well as switched on and off
  • Programmable high/low set-points for go/no-go testing:
    with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs
  • Storage of 1000 values, which can be recalled:
    – on the display
    – data transfer to a PC
    – for printing with report
  • Output signal:

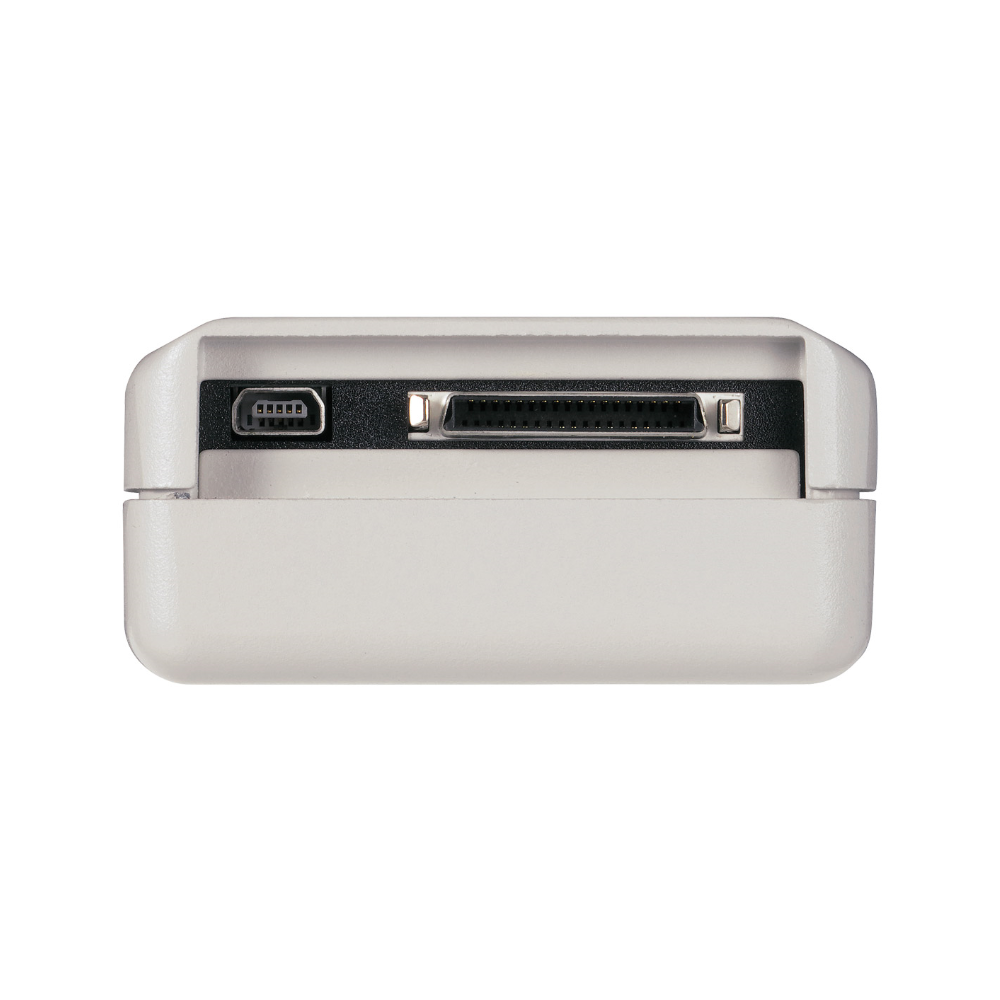

    – RS-232 for connecting to a PC
    – USB
    – analog ±2 V DC

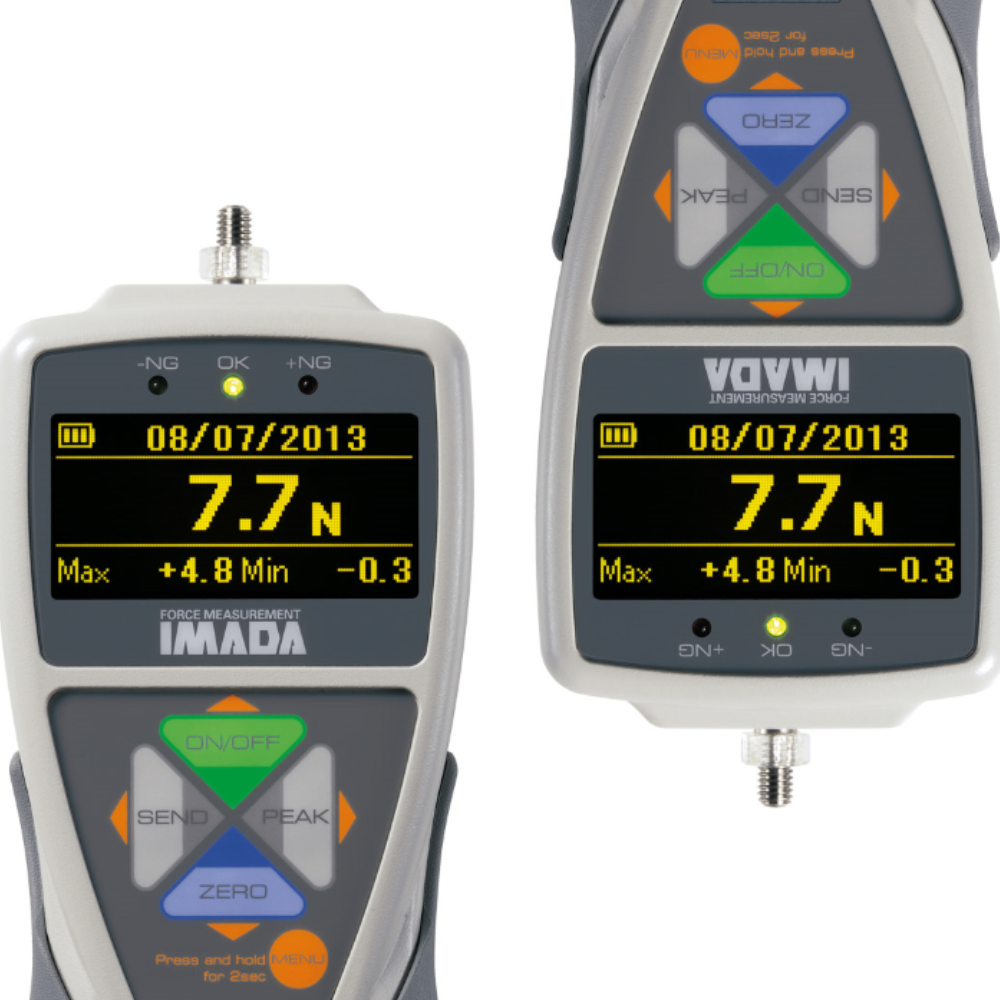

  • Display can be reversed for inverted use
  • »Zero Set« to zero the gauge in all operating positions
  • Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX
  • Force gauge RZTA-1000N with user switchable units: N, kgf (gf) und lbf (ozf)
  • Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)
  • Readings can be saved on a USB flash drive (Not included in delivery).
  • 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  • Indication of two peak values per measurement.
  • Manufacturers inspection certificate is included

Standard Features

  • Force gauge RZTA-1000N for exact measuring with an accuracy of 0.2 %
  • 200 % overload protection
  • Easy to read LCD display
  • Ergonomically-designed, rugged die-cast aluminium housing
  • Non-slip rubber grip
  • Operates on rechargeable battery and/or AC adapter
  • Full set of accessories included
  • Force gauge RZTA-1000 can be used for various parts of body and items on different measurement condition, by changing the attachment
  • Available Models
Model Measuring Range Resolution  Interfaces
RZTA-1000N 0 – 1000 N 1 N USB, RS-232 and analog
alternative
RDSV-1000N 0 – 1000 N 1 N USB and RS-232
RFB-750N 0 – 750 N 7.5 N none

SPECIFICATIONS

Measuring principle: Bidirectional force sensor with strain gauge
Accuracy: ±0.2 % full scale ±1 digit
Measuring units: N, kgf (gf), lbf (ozf) selectable
Display: OLED, 4 digit
Display update rate: 16 times/sec
Sampling rate: 2000 times/sec
Overload capacity: Approx. 200 % full scale,
symbol flashes at 110 % full scale
Plug gauge: M6 male thread
Memory: Internal memory for max. 1000 values
recallable peak – compression/tension
Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
Setpoints: Programmable MIN/MAX setpoint with color-coded indicators in the LED display
Output signal setpoints: Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal: RS-232 (8, 1, N, 19200),
analog ±2 V DC,
USB
High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
Peak mode: Indication of two peak values per measurement
Temperature range: 0 – 40 °C
Air humidity: 20 – 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 h continuous use,
approx. 2 h charging time) and/or 100 – 240 V AC adapter
Housing material: Die-cast aluminium
Dimensions:
Handle:
 191 x 75 x 34 mm (LxWxH)
144 x 290 41 (LxWxH)
Weight, net (gross):
Handle:
 Approx. 490 g (2500 g)
Approx. 600 g

Specifications subject to change without notice!

STANDARD ACCESSORIES

SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22

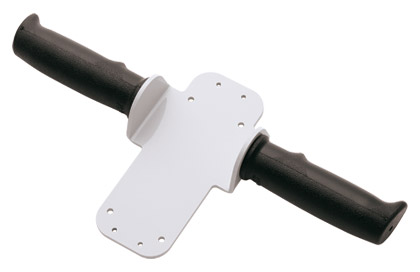

 FOH-1 – Handle

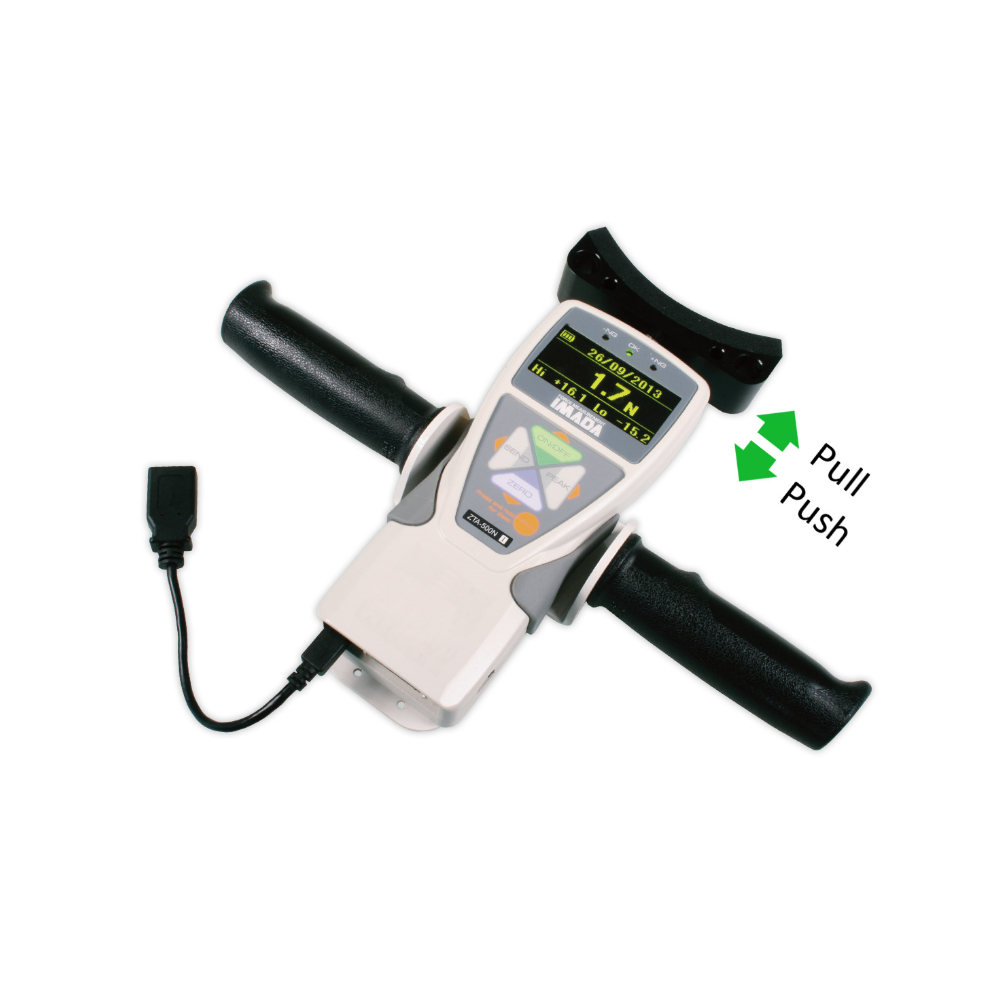

For easy use the force gauge RZTA-1000N can be equipped with a handle. Therefore especially higher forces can be measured more easily.
Order number: FOH-1

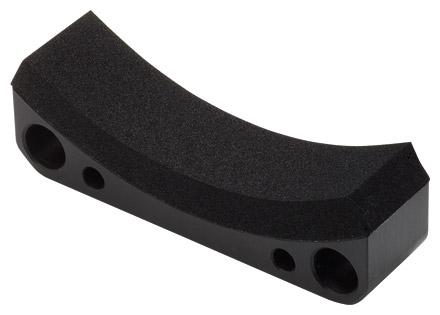

MED-R80 – Curved Pad

Applicable for measuring arms and legs.
Working face 100 x 25 mm, Radius 80 mm
Order number: MED-R80

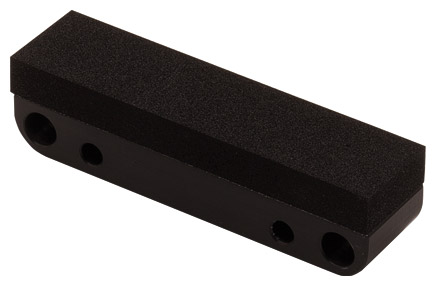

 MED-100-25 – Rectangular Pad

Applicable for measuring arms and legs.
Working face 100 x 25 mm
Order number: MED-100-25













 MED-25-25 – Square Pad

Applicable for measuring the tongue.
Working face 25 x 25 mm
Order number: MED-25-25

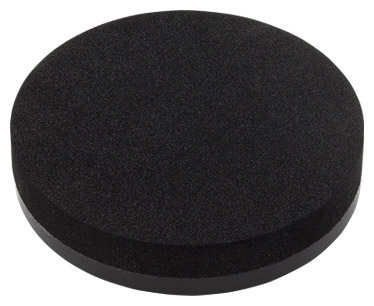

 MED-D80 – Circular Pad

Applicable for measuring the back.
Working face Ø 80 mm
Order number: MED-D80

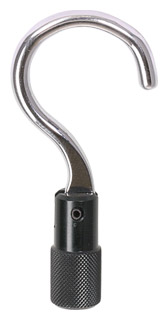

S-7 – Large Hook

Applicable for doors, carts, wagons and so on.
Order number: S-7

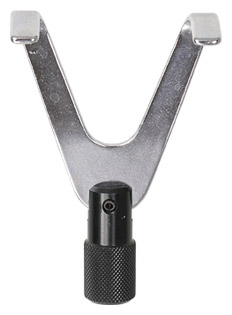

S-8 – Y-Hook

Applicable for doors, carts, wagons and so on.
Order number: S-8

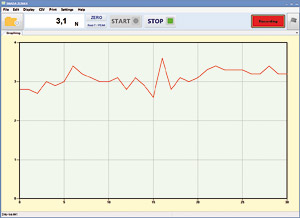

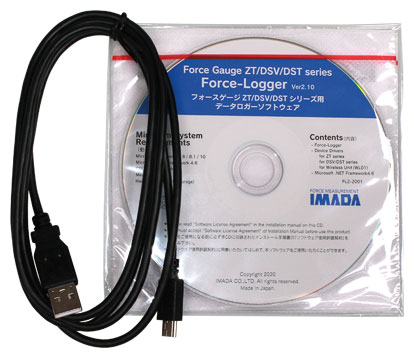

Software – Force Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “Force Logger” for data transfer

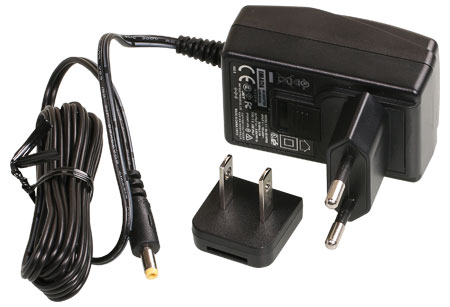

ADW-6010 – AC Adapter

AC Adapter for 100 – 240 V AC
Order number: ADW-6010

OPTIONAL ACCESSORIES

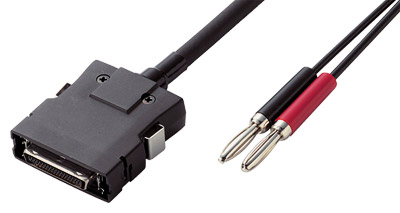

CB-108 – Connecting Cable analog

Connecting cable for analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108

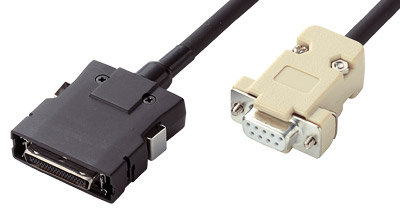

 CB-208 – Connecting Cable RS-232

Connecting cable for RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208

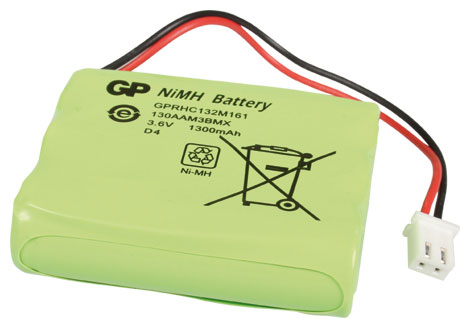

 40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I

DELIVERY INCLUDES

Force gauge RZTA-1000N with carrying case, 6 inserts, handle, AC-adapter with 2 adapters (EU/USA), USB cable, USB adapter, 1 CD-ROM with USB-driver and simple software for data transfer, 1 CD-ROM with Software “Force Recorder Standard”, manufacturers inspection certificate and operation instruction in English
