RFB-750N
Force Gauge

Measuring Range available
0 – 750 N
Analog force gauge for determination of muscle strength, useable for numerous applications in rehabilitation and physical therapy

Low cost force measuring device for a wide variety of applications accuracy ±0.3 % F.S.

The most popular force gauge

Special Features

2 operation modes:
real time – display the actual tension or compression force
peak mode – to measure the peak force during a test (memory pointer)
Highest accuracy for high forces with ±0,3 % full scale
Easy to use

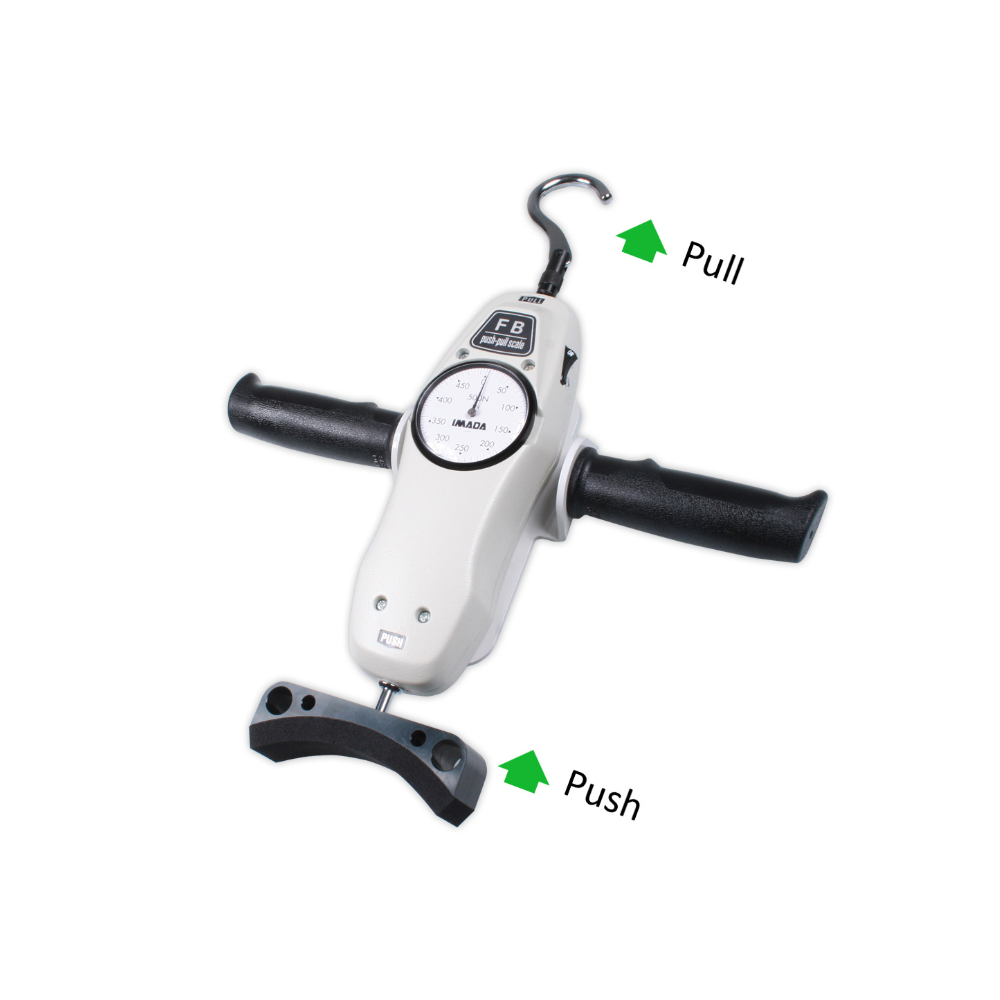

Force gauge RFB-750N with easy to read dial
Force gauge with zero tare ring to zero the gauge in each position (necessary, if heavy clamps are mounted)
Free manufacturers calibration report

Standard Features

Simple, rugged, maintenance-free force measuring device
Force gauge with rugged die-cast aluminium housing for heavy usage
Full set of accessories included
Can be used for various parts of body and items on different measurement condition, by changing the attachment

Available Models

Model	Measuring Range	Resolution	Interfaces
RFB-750N	0 – 750 N	7.5 N
	alternative
RDSV-1000N	0 – 1000 N	1 N	USB and RS-232
RZTA-1000N	0 – 1000 N	1 N	USB, RS-232, Digimatic and analog

SPECIFICATIONS

Displacement:	10 mm
Accuracy:	±0.3 % full scale
Plug gauge:	M6 male thread
Temperature range:	5 – 45 °C
Air humidity:	85 % RH, max.
Housing material:	Die-cast aluminium
Dimensions: Handle:	235 x 65 x 50 mm (LxWxH) 144 x 290 x 41 (LxWxH)
Weight, net (gross): Handle:	Approx. 530 g (2500 g) approx. 600 g

Specifications subject to change without notice!

STANDARD ACCESSORIES

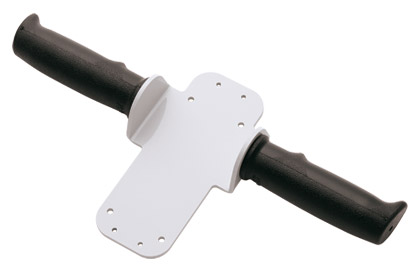

FOH-1 – Handle

For easy use the force gauge RFB-750N can be equipped with a handle. Therefore especially higher forces can be measured easily.
Order number: FOH-1
