PSH
Force Gauge

4 measuring ranges available
from 0 – 500 N up to 0 – 3000 N

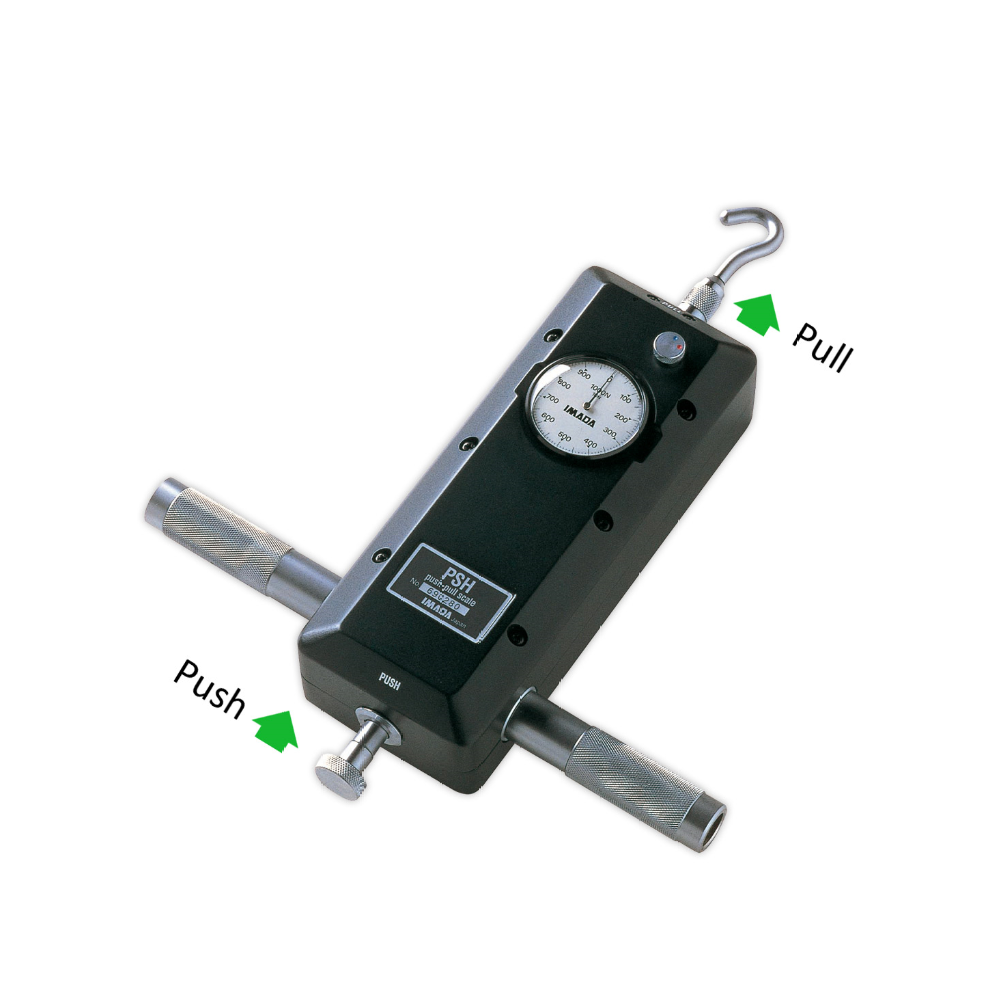

Analog force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry

Force measuring device for high forces, with high accuracy for exact measurements Accuracy ±0.1 % Full Scale

Simple, rugged, maintenace-free force measuring device

Special Features

  • 2 operation modes:
    real time – display the actual tension or compression force
    peak mode – to measure the peak force during a test (memory pointer)
  • Easy operation at high forces with additional handles
  • Highest accuracy for high forces with ±0,1 % full scale
  • Easy to use
  • Force gauge PSH with easy to read dial
  • Force gauge with zero tare ring to zero the gauge in each position (necessary, if heavy clamps are mounted)
  • Free manufacturers calibration report

Standard Features

  • Simple, rugged, maintenance-free force measuring device
  • Force gauge with rugged die-cast aluminium housing for heavy usage
  • For hand-held use or mounting on test stands (mounting thread 4 x M10 x 1 in the back)
  • Full set of accessories included

 Available Models

Model Capacity Resolution
PSH-500N 0 – 500 N 5 N
PSH-1000N 0 – 1000 N 10 N
PSH-2000N 0 – 2000 N 20 N
PSH-3000N 0 – 3000 N 25 N

SPECIFICATIONS

Displacement: 10 mm
Accuracy: ±0.1 % Full scale
Plug gauge: M10 male thread
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Mounting threads for test stand: 4 x M10 x 1
Housing material: Die-cast aluminium
Dimensions: 285 x 95 x 63 mm (LxWxH)
Weight, net (gross): Approx. 3100 g (4000 g)

Specifications subject to change without notice!

STANDARD ACCESSORIES

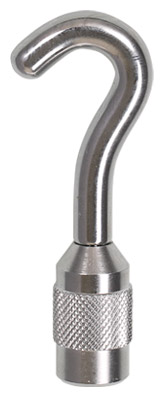

B1 – Small Hook

Steel, M10
Order number: B-1



















 B2 – Flat Tip

Steel, M10, Ø 23 mm
Order number: B-2







 B-3 – Conical Tip

Steel, M10, 85°
Order number: B-3









 B-4 – Chisel Tip

Steel, M10, 85°
Order number: B-4









 B-5 – Notched Tip

Steel, M10, 85°
Order number: B-5









 B-6 – Extension Shaft

Steel, M10, 100 mm long
Order number: B-6

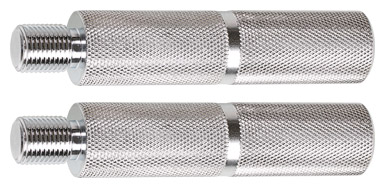

 B-7 – Handle

Steel, M10
Order number: B-7

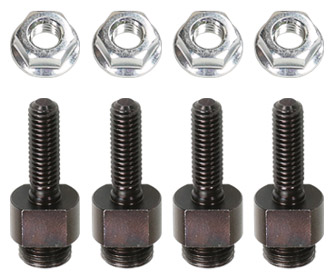

 B-8 – Mounting Screws

4 pieces, steel, M10 x 1
Order number: B-8













 Inspection Certificate

Delivery includes a manufacturers inspection certificate free of charge

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for force gauge PSH in our program.

You can find further information at clamps and testing devices









 Calibration Certificate

Calibration certificate with calibration report is optional available.

DELIVERY INCLUDES

Force gauge PSH with carrying case, strengthened design, handles, 4 pieces mounting screws, manufacturers calibration report, operating instructions in German or English as requested
