Tension
ZW1-10kN / eZW1-10kN
Capacity: 10 kN- Accuracy ZW1-10kN: ±1.0 % full scale
- Accuracy eZW1-10kN: ±1.2 % full scale
- Protection class IP 67
- Spiral cable: Approx. 0.5 – 4 m
Capacity: 10 kNMore information in the PDF:
Tension and Compression

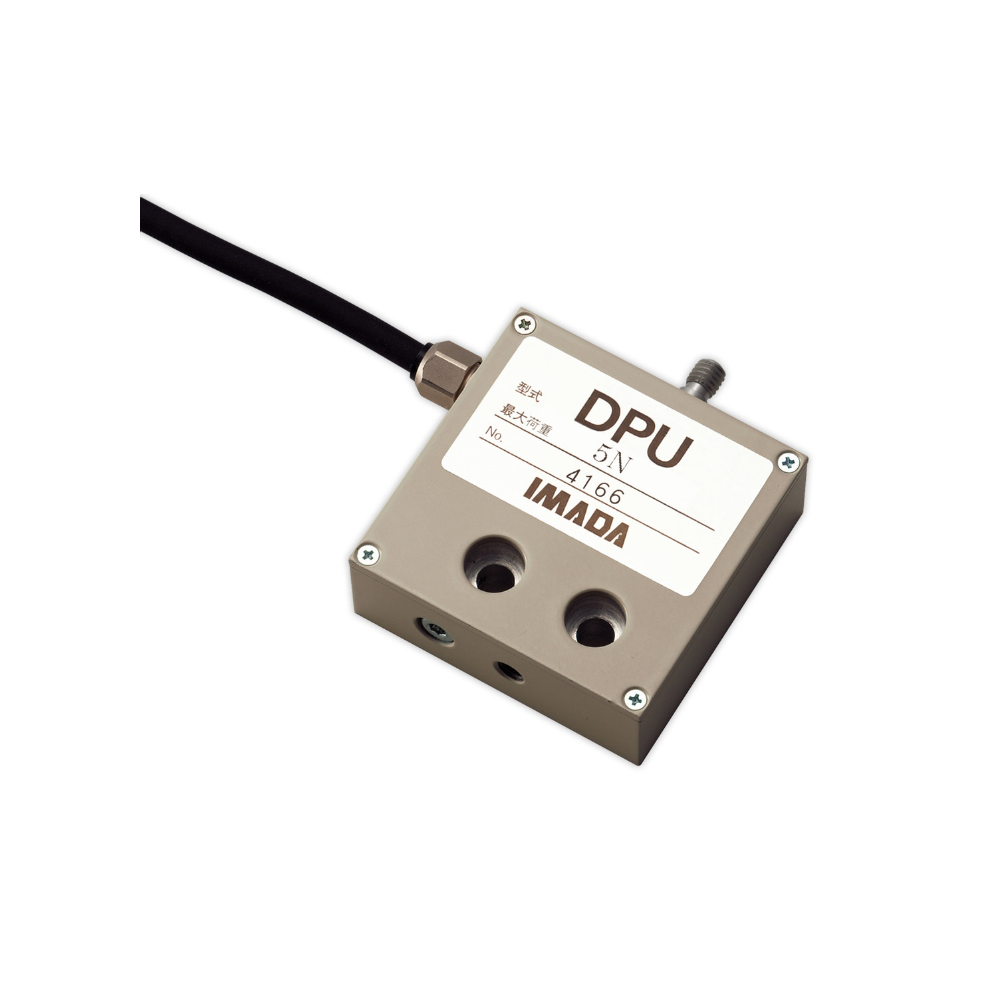

DPU / eDPU – Standard
- Measuring range: 2 N – 500 N
- Accuracy DPU: ±0.2 % Full Scale
- Accuracy eDPU: ±0.4 % Full Scale
- Cable: Approx. 2 m
Measuring range: 2 N – 500 NMore information in the PDF:
DPU / eDPU – High Capacity
- Measuring range: 1000 N – 20 kN
- Accuracy DPU: ±0.2 % full scale
- Accuracy eDPU: ±0.4 % full scale
- Cable: Approx. 3 m
Measuring range: 1000 N – 20 kNMore information in the PDF:
LMU / eLMU
- Capacity: 50 N – 500 N
- Accuracy LMU: ± 1.0 % full scale
- Accuracy eLMU: ± 1.2 % full scale
- Dimension: 18 x 25 (ØxH)
- Cable: Approx. 2 m
Capacity: 50 N – 500 NMore information in the PDF:
LU / eLU
- Capacity: 50 N – 2000 N
- Accuracy LU: ±1.0 % full scale
- Accuracy eLU: ±1.2 % full scale
- Dimension: 28 x 35 mm (ØxH)
- Cable: Approx. 3 m
Capacity: 50 N – 2000 NMore information in the PDF:
LMU / eLMU
- Capacity: 1000 N – 20 kN
- Accuracy ZD: ± 0.5 % full scale
- Accuracy eZD: ± 1.2 % full scale
- Cable: Approx. 3 m
Capacity: 1000 N – 20 kNMore information in the PDF:
SW / eSW
- Capacity: 100 N – 20 kN
- Accuracy SW: ± 0.5 % full scale
- Accuracy eSW: ± 0.7 % full scale
- Protection class IP67
Capacity: 100 N – 20 kNMore information in the PDF:
PN-50N / ePN-50N
- Capacity: 50 N
- Accuracy PN-50N: ± 2.0 % full scale
- Accuracy ePN-50N: ± 2.2 % full scale
- Protection class IP67
Capacity: 50 NMore information in the PDF:
Compression
LC / eLC
- Capacity: 500 N – 20 kN
- Accuracy LU: ±1.0 % full scale
- Accuracy eLU: ±1.2 % full scale
- Dimension: 50 x 25 mm (ØxH)
- Cable: Approx. 3 m
Capacity: 500 N – 20 kNMore information in the PDF:
LM / eLM
- Capacity: 10 N – 20 kN
- Accuracy: see PDF file
- Dimension: 12 x 4 – 21 x 10 mm (ØxH)
- Cable: Approx. 2 m
Capacity: 10 N – 20 kNMore information in the PDF:
LMT-1000N
- Capacity: 1000 N
- Accuracy LMT: ± 1.0 % full scale
- Temperature range: – 40 … + 130°C
- Dimension: 14 x 4.3 mm (ØxH)
- Cable: Approx. 2 m
Capacity: 1000 NMore information in the PDF:
DD2 / eDD2
- Capacity: 5000 N – 20 kN
- Accuracy DD2: ± 0.5 % full scale
- Accuracy eDD2: ± 0.7 % full scale
- Dimension: 94 x 48 mm (ØxH)
- Protection class IP 67
- Cable: Approx. 2 m
Capacity: 5000 N – 20 kNMore information in the PDF:
CFX / eCFX
- Capacity: 20 N – 200 N
- Accuracy CFX: ± 1.0 % full scale
- Accuracy eCFX: ± 1.2 % full scale
- Dimension: 15 x 9 mm (ØxH)
- Cable: Approx. 3 m
Capacity: 20 N – 200 NMore information in the PDF:
CLFX / eCLFX
- Capacity: 50 N – 500 N
- Accuracy CLFX: ± 2.0 % full scale
- Accuracy eCLFX: ± 2.2 % full scale
- Dimension: 20 x 6 mm (ØxH)
- Cable: Approx. 3 m
Capacity: 50 N – 500 NMore information in the PDF:
CHX / eHFX
- Capacity: 100 N – 2000 N
- Accuracy: see PDF file
- Dimension: 25 x 7 – 30 x 14 mm (ØxH)
- Cable: Approx. 3 m
Capacity: 100 N – 2000 NMore information in the PDF:
Torque
eHT
- Capacity: 50 Ncm – 10 Ncm
- Accuracy: ±0.7 % full scale
- Spiral cable: maxx. 3.50 m
Capacity: 50 Ncm – 10 NcmMore information in the PDF:
