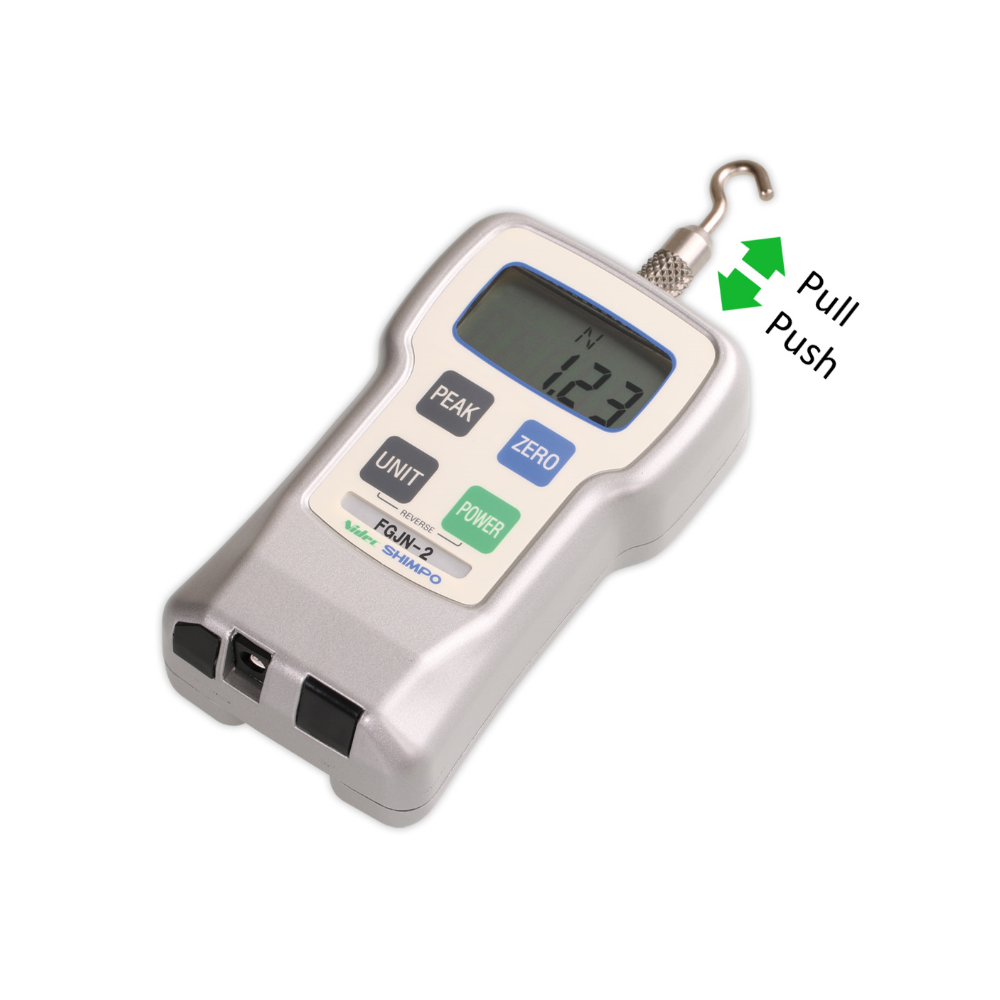

FGJN
Force Gauge

4 measuring ranges available
from 0 – 20.00 N up to 0 – 500.0 N
Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry at a good cost-performance ratio

Compact, low cost unit with high measuring frequency for exact acquire of peak values, without interface

Special Features

  • 2 operation modes:
    real time – display the actual tension or compression force
    peak mode – to measure the peak force during a test
  • Force gauge FGJN with high sampling rate of 1000 times/sec for exact acquisition of peak values
  • »Zero Set« to zero the gauge in all operating positions
  • Force gauge with user switchable units: N, kgf and lbf
  • User selectable display update time

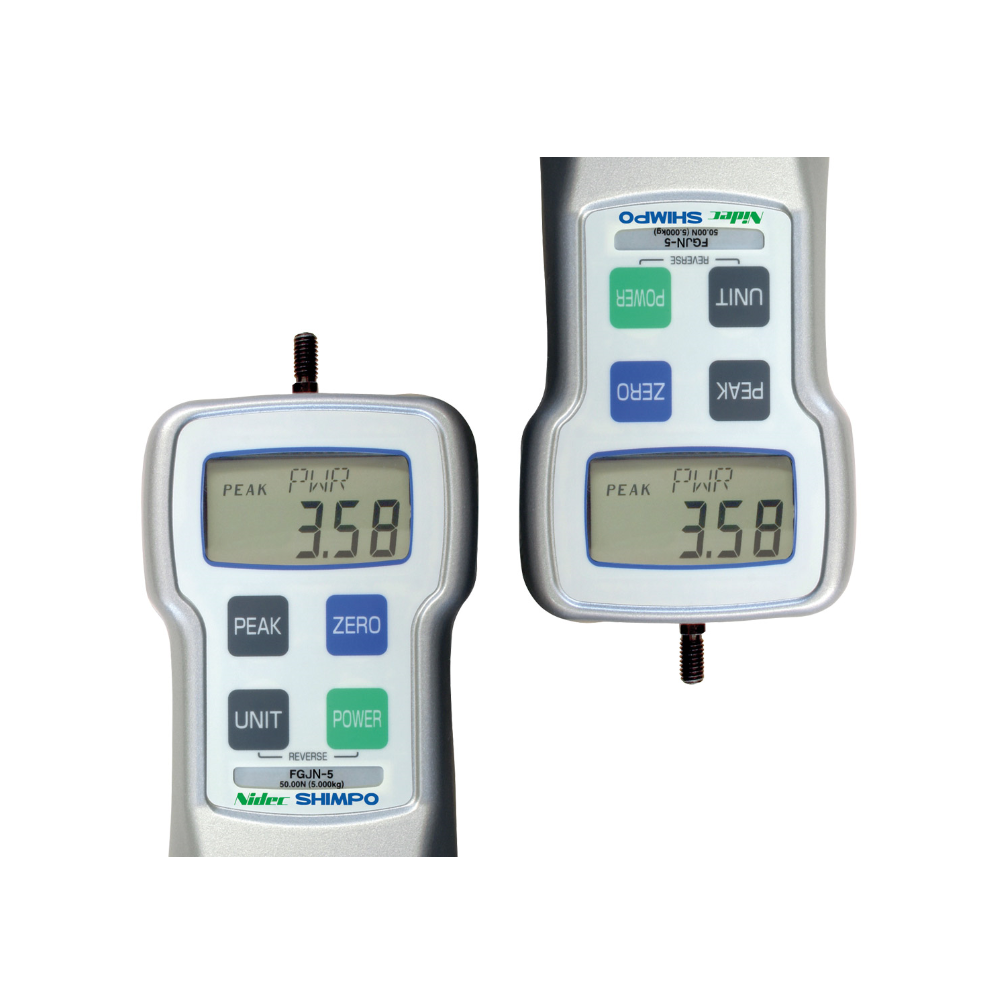

  • Display can be reversed for inverted use; e.g. on vertical test stands

Standard Features

  • Force measuring device for exact measuring with an accuracy of 0.2 %
  • 200 % overload protection
  • Force gauge with easy to read LCD display
  • For hand-held use or mounting on test stands (mounting thread 4 x M4 in the back)
  • Ergonomically-designed, rugged die-cast aluminium housing
  • Operates on rechargeable battery and/or AC adapter
  • Certificate of Compliance with the order 2.1 is included
  • Full set of accessories included

 Available Models

Model Capacity Resolution Capacity kgf Capacity lbf
FGJN-2 0 – 20.00 N 0.01 N 0 – 2.000 kgf 0 – 4.400 lbf
FGJN-5 0 – 50.00 N 0.01 N 0 – 5.000 kgf 0 – 11.00 lbf
FGJN-20 0 – 200.0 N 0.1 N 0 – 20.00 kgf 0 – 44.00 lbf
FGJN-50 0 – 500.0 N 0.1 N 0 – 50.00 kgf 0 – 110.0 lbf

SPECIFICATIONS

Measuring principle: Bidirectional force sensor with strain gauge
Plug gauge: M6 (M4) male thread
Displacement: 0.5 mm
Accuracy: ±0.3 % full scale ±1 digit
Measuring units: N, kgf, lbf
Display: 4 digit LCD, 12 mm high
User selectable update time: 1000 msec (standard), 500 msec, 333 msec, 200 msec,
100 msec, 50 msec
Overload capacity: 200 % full scale,
display is flashing at 120 % full scale
Zero adjustment: 10 % full scale
A/D converter: 12 bit
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Mounting threads for test stand: 4 x M4, Depth 6 mm
Power supply: Rechargeable NiMH batteries (approx. 8 h continuous use, approx. 8 h charging time),
and AC adapter 100 – 240 V with 4 Adapters (EU/USA/UK/AUS-NZL)
Dimensions: 147 x 75 x 38 mm (LxWxH)
Weight, net (gross): Approx. 450 g (1000 g)

Specifications subject to change without notice!

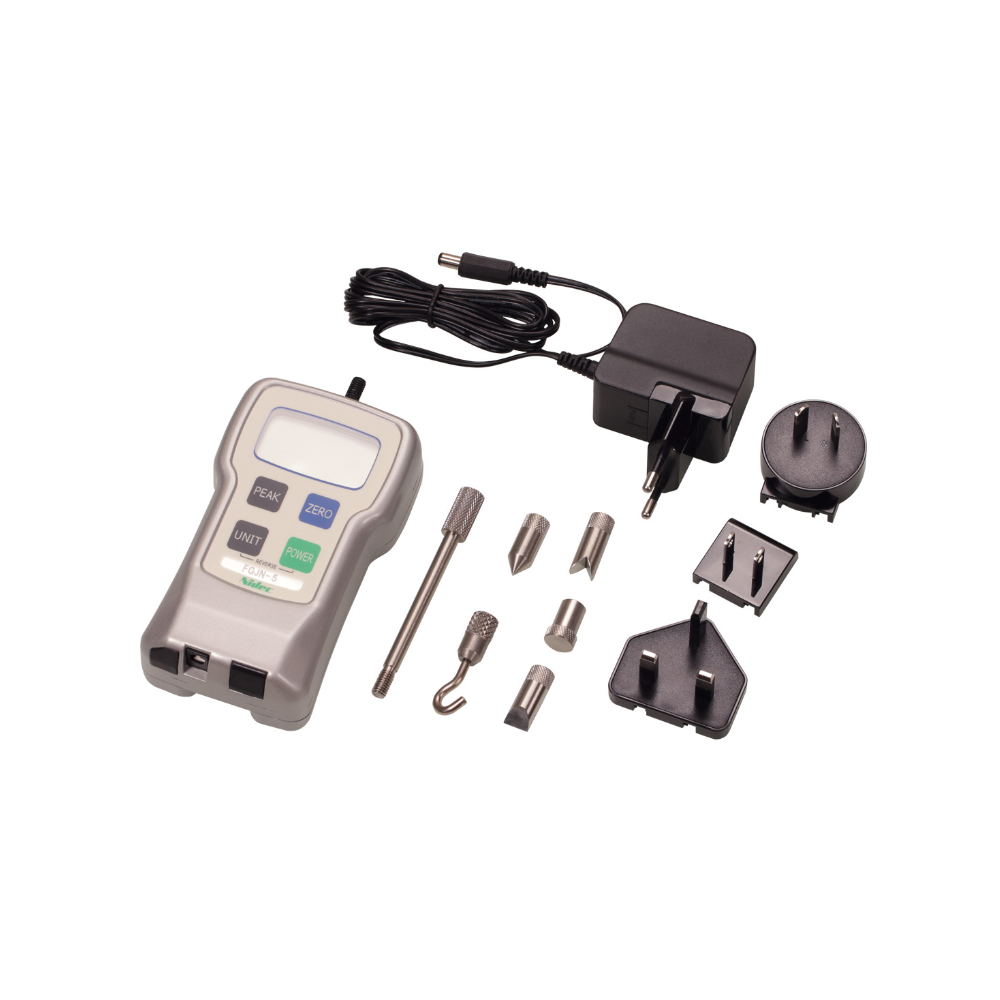

STANDARD ACCESSORIES

C-1 – Small Hook

Steel, M6,

Order number: C-1













 C-2 – Flat Tip

Steel, M6, Ø 12 mm

Order number: C-2







C-3 – Conical Tip

Steel, M6, 70°

Order number: C-3

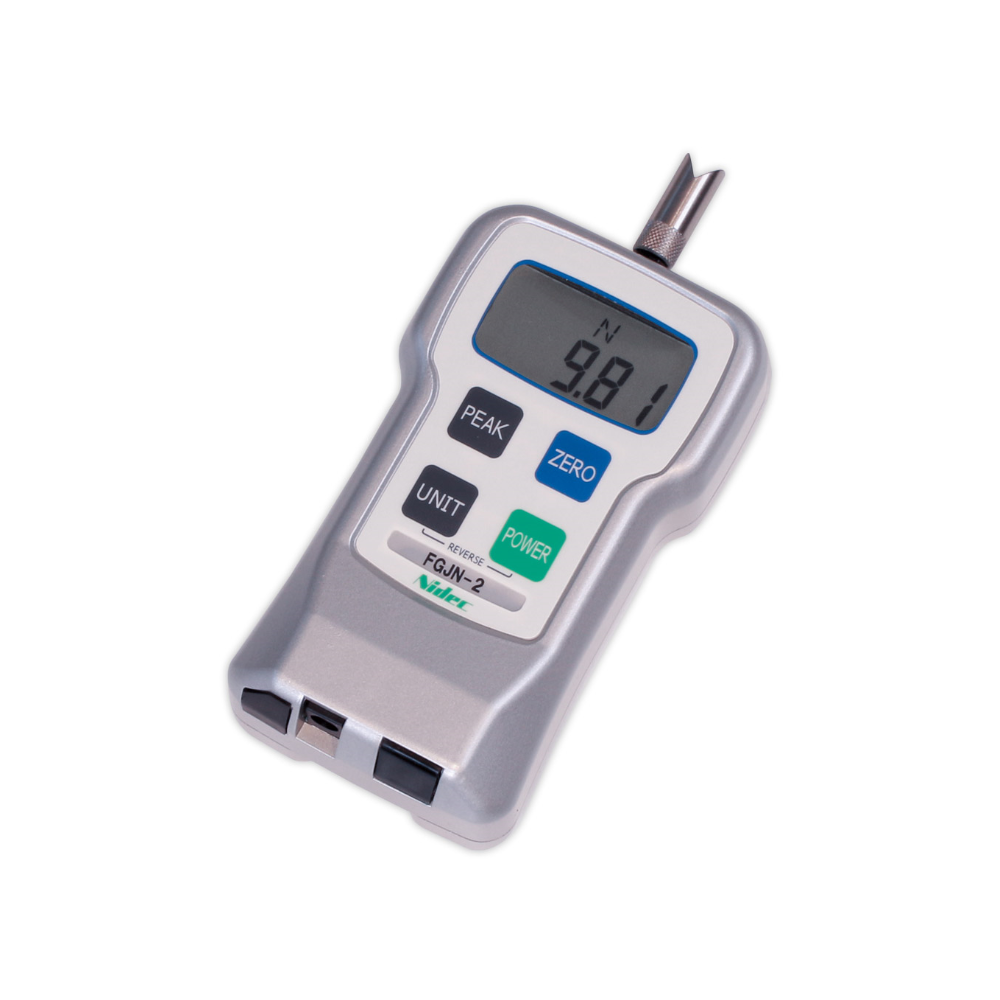

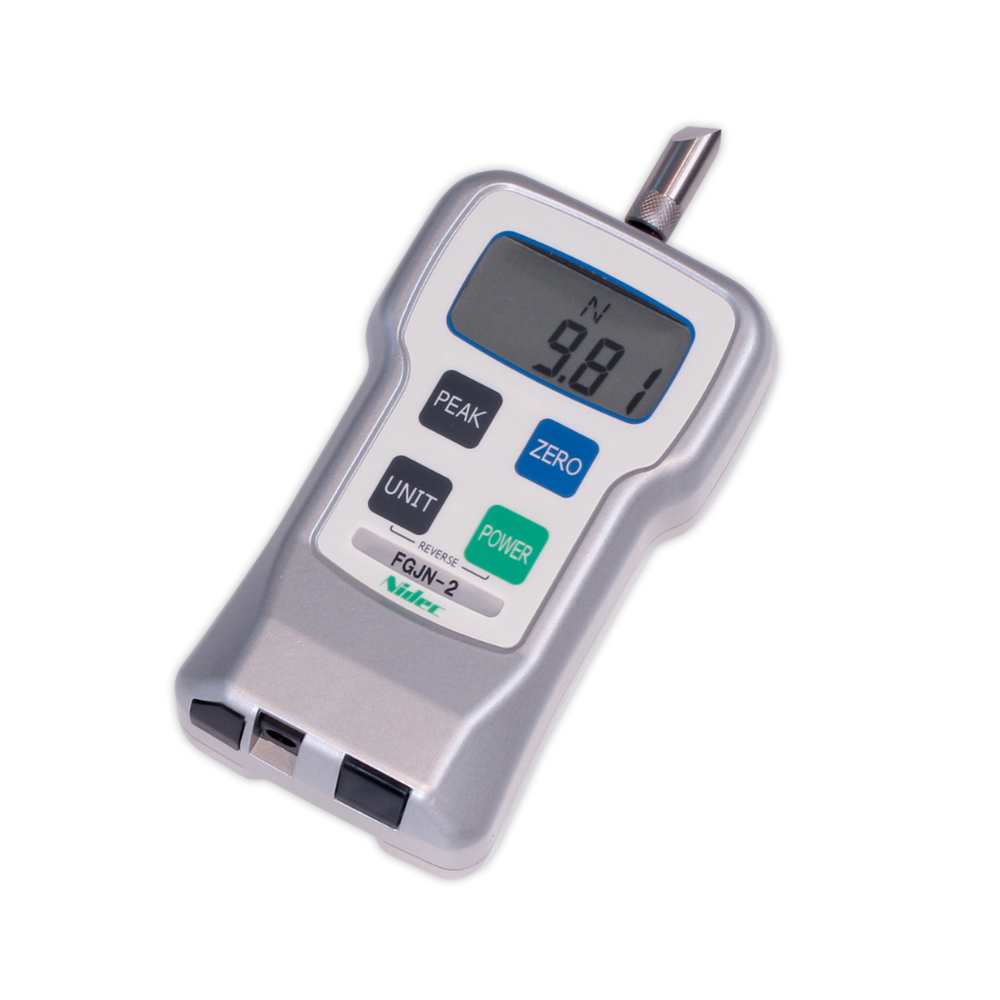

C-4 – Chisel Tip

Steel, M6, 70°

Order number: C-4









 C-5 – Notched Tip

Steel, M6, 70°

Order number: C-5









 C-6 – Extension Shaft

Steel, M6, 80 mm lang

Order number: C-6

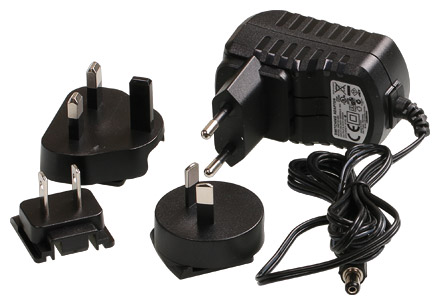

 K50300 – AC Adapter

AC adapter with 4 adapter (EU/USA/UK/AUS-NZL)
for 100 – 240 V AC
Order number: K50300













 Inspection Certificate

Delivery includes a manufacturers inspection certificate free of charge

OPTIONAL ACCESSORIES

Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for force gauge FGJN in our program.

Find further information at clamps and testing devices







 Calibration Certificate

Calibration certificate with calibration report is optional available.

DELIVERY INCLUDES

Force gauge FGJN with carrying case, standard accessories, AC adapter with 3 adapters (EU/USA/UK/AUS-NZL), Certificate of Compliance 2.1 according EN 10204, operating instruction in English
