FB
Force Gauge

9 measuring ranges available
from 0 – 10 N up to 0 – 500 N
Analog force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry

Low cost force measuring device for a wide variety of applications accuracy ±0.3 % F.S.

The most popular force gauge

Special Features

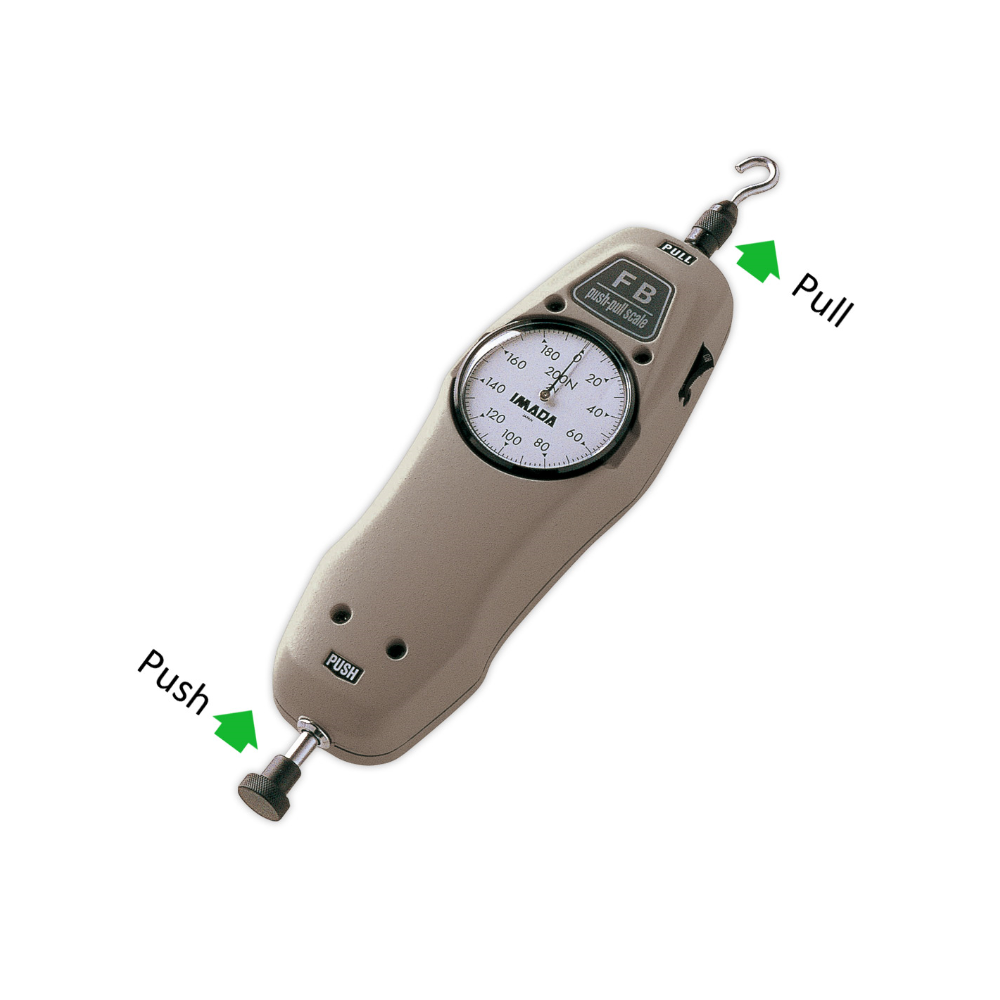

  • 2 operation modes:
    real time – display the actual tension or compression force
    peak mode – to measure the peak force during a test (memory pointer)
  • Highest accuracy for high forces with ±0,3 % full scale
  • Easy to use
  • Force gauge FB with easy to read dial
  • Force gauge with zero tare ring to zero the gauge in each position (necessary, if heavy clamps are mounted)
  • Free manufacturers calibration report
  • Standard Features
  • Simple, rugged, maintenance-free force measuring device
  • Force gauge FB with rugged die-cast aluminium housing for heavy usage
  • For hand-held use or mounting on test stands (mounting thread 4 x M4 in the back)
  • Full set of accessories included

 Available Models

Model Capacity Resolution
FB-10N 0 – 10 N 0.1 N
FB-20N 0 – 20 N 0.2 N
FB-30N 0 – 30 N 0.25 N
FB-50N 0 – 50 N 0.5 N
FB-100N 0 – 100 N 1 N
FB-200N 0 – 200 N 2 N
FB-300N 0 – 300 N 2.5 N
FB-400N 0 – 400 N 4 N
FB-500N 0 – 500 N 5 N

SPECIFICATIONS

Displacement: 10 mm
Accuracy: ±0.3 % full scale
Plug gauge: M6 male thread
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Mounting threads for test stand: 4 x M4, max. depth 6 mm
Housing material: Die-cast aluminium
Dimensions: 235 x 65 x 50 mm (LxWxH)
Weight, net (gross): Approx. 530 g (1000 g)

Specifications subject to change without notice!

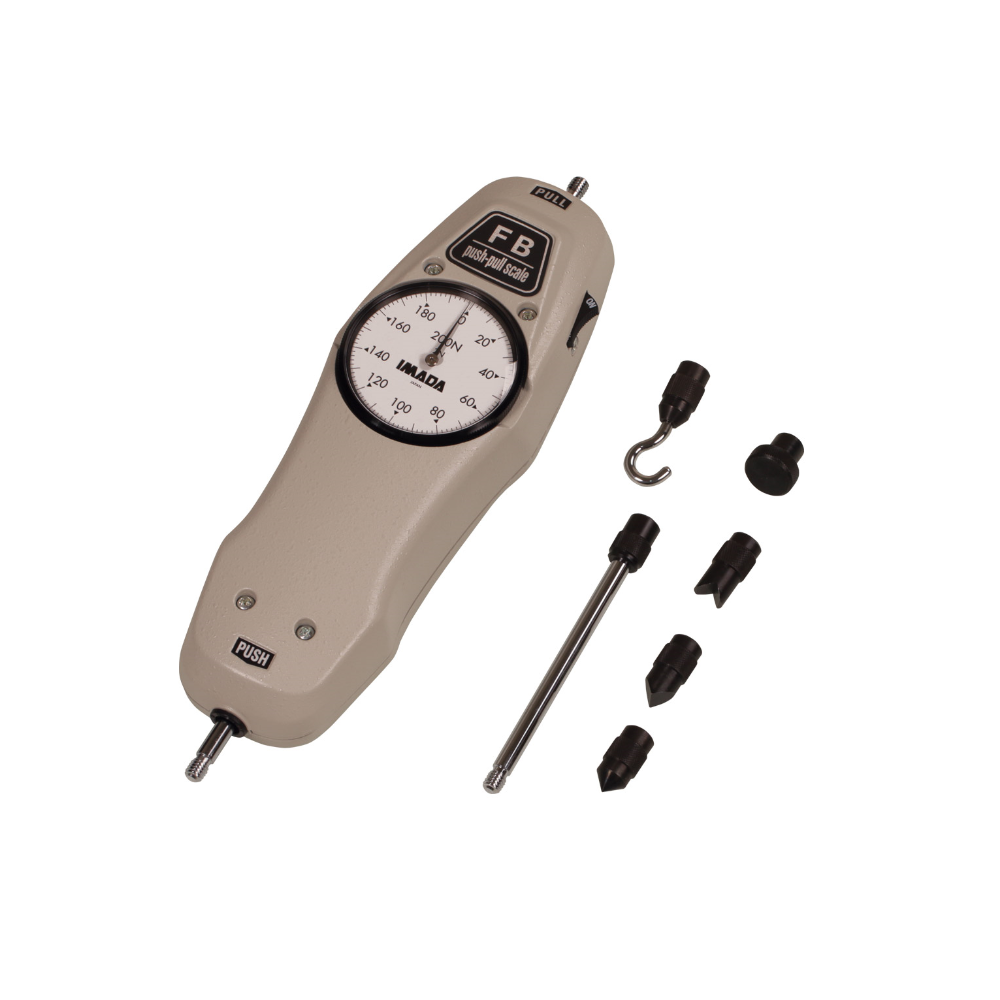

STANDARD ACCESSORIES

A-1 and S-2 – Small Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-1
Steel, M6, measuring range from 200 N to 500 N
Order number: S-1











 A-2 and S-2 – Flat Tip

Aluminium, M6, Ø 13 mm, measuring range up to 100 N
Order number: A-2
Steel, M6, Ø 16 mm, measuring range from 200 N to 500 N
Order number: S-2





 A-3 and S-3 – Conical Tip

Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-3
Steel, M6, 85°, measuring range from 200 to 500 N
Order number: S-3







A-4 and S-4 – Chisel Tip

Aluminium, M6, 85°, measuring range up to 100 N
Order number: A-4
Steel, M6, 85°, measuring range from 200 N to 500 N
Order number: S-4







 A-5 and S-5 – Notched Tip

Aluminium, M6, 90°, measuring range up to 100 N
Order number: A-5
Steel, M6, 90°, measuring range from 200 N to 500 N
Order number: S-5







 A-6 and S-6 – Extension Shaft

Aluminium, M6, 80 mm, measuring range up to 100 N
Order number: A-6
Steel, M6, 100 mm, measuring range from 200 N to 500 N
Order number: S-6

 Inspection Certificate

Delivery includes a manufacturers inspection certificate free of charge

OPTIONAL ACCESSORIES

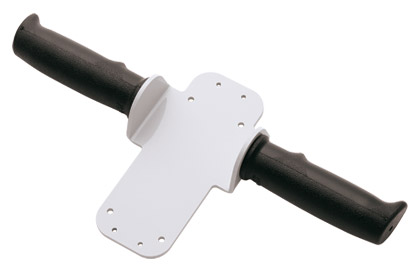

FOH-1 – Handle

For easy use the force gauge FB can be equipped with a handle. Therefore especially higher forces can be measured easily.
Order number: FOH-1

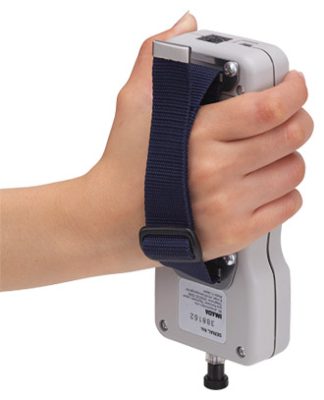

 HGB-1 – Hand Grip Belt

For easy use the force gauge FB can be equipped with a hand grip belt. For max. forces of 200 N.
Order number: HGB-1



















 Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for force gauge FB in our program.

Find further information at clamps and testing devices

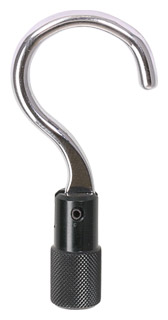

 A-7 and S-7 – Large Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-7
Steel, M6, measuring range from 100 N to 1000 N
Order numbr: S-7













 A-8 and S-8 – Y-Hook

Aluminium, M6, measuring range up to 100 N
Order number: A-8
Steel, M6, measuring range from 100 N to 1000 N
Order number: S-8













 Calibration Certificate

Calibration certificate with calibration report is optional available.

DELIVERY INCLUDES

Force gauge FB with carrying case, standard accessories, manufacturers calibration report, operating instruction in German or English as requested
