eZT

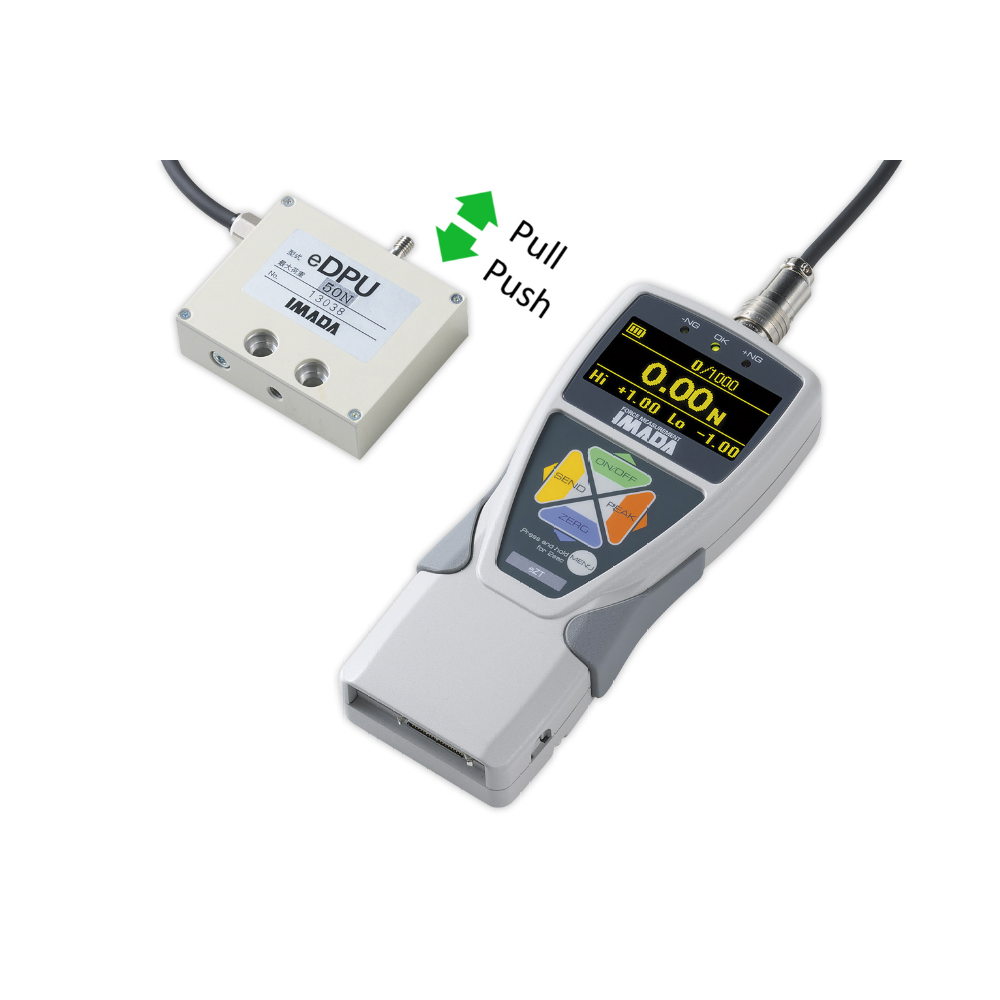

Force Gauge

Measuring range available
0 – 20 kN (tension and compression)
0.5 Nm – 10 Nm (torque)
Digital force gauge for determination of compression, tension and torque forces, usable for numerous applications in a lot of sectors of industry, which need a fast measuring frequency

High quality force measuring unit with interface (RS-232, USB and analog) and memory This device has a fast measuring frequency for exact acquisition of peak values

Different load cells, calibrated to the force gauge, can be connected

Special Features

  • Different load cells of series e, calibrated to force gauge eZT, can be used.
  • 2 operation modes:
    real time – display the actual tension or compression force
    peak force – peak force – to measure the peak force during a test
  • Force gauge eZT with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values
  • Display update time 16 times/sec

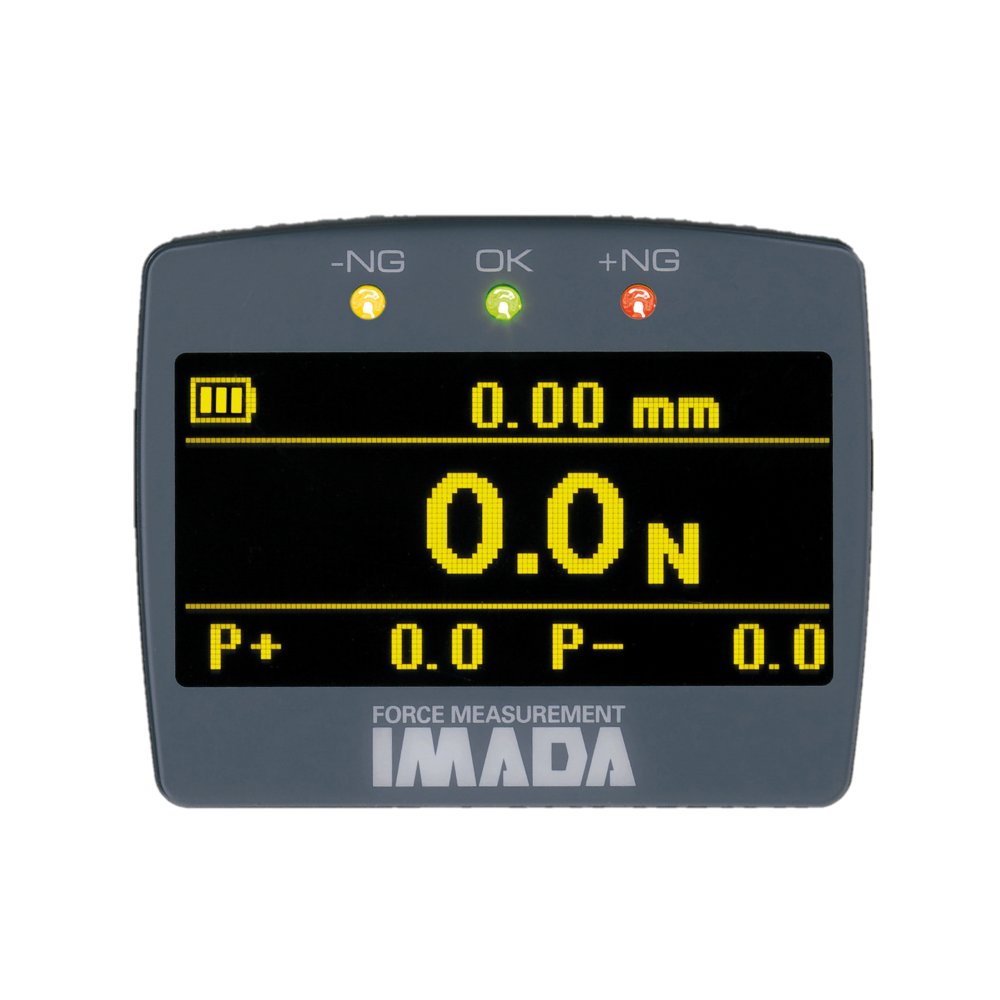

  • Easy to read display (OLED)
  • The header and footer of the display can be customized, as well as switched on and off
  • Programmable high/low set-points for go/no-go testing:
    with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs
  • Storage of 1000 values, which can be recalled:
    – on the display
    – data transfer to a PC
    – for printing with report
  • Output signal:
    – RS-232 for connecting to a PC
    – USB
    – analog ±2 V DC

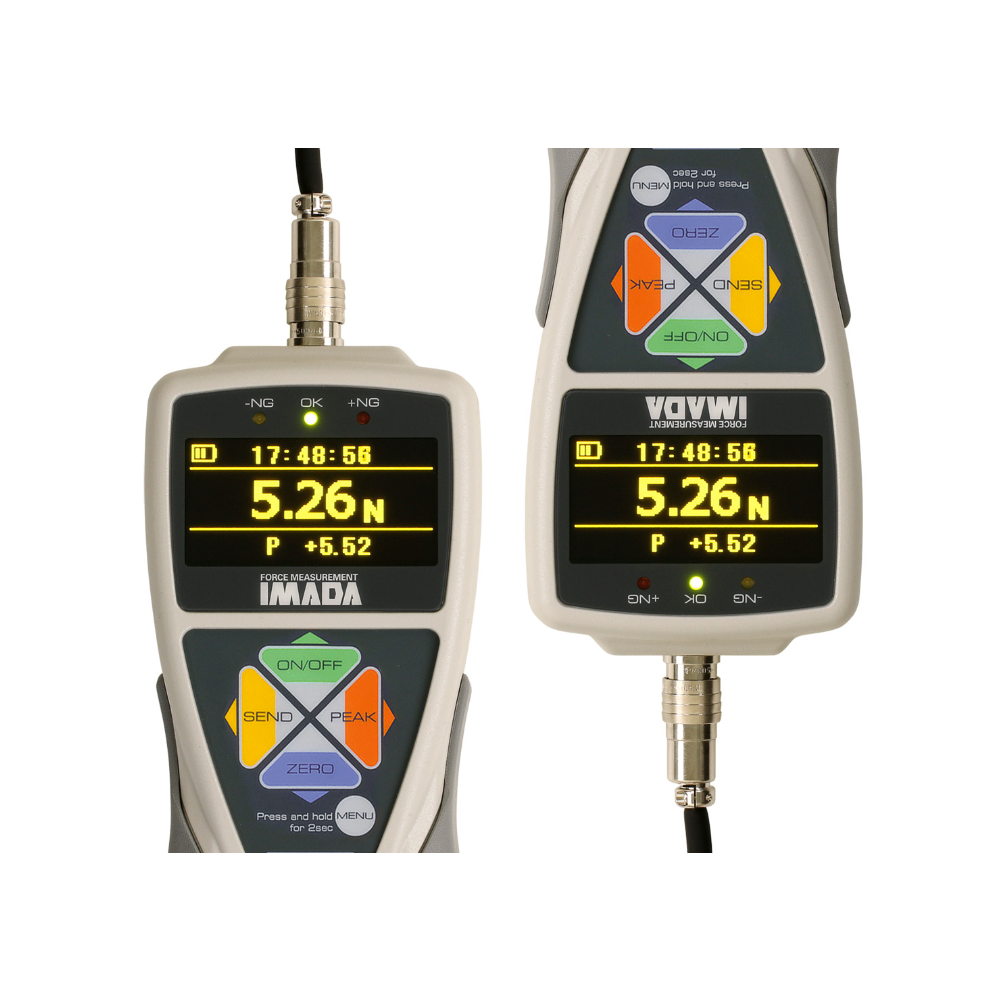

  • Display of Force gauge eZT can be reversed for inverted use; e. g. on vertical test stand
  • »Zero Set« to zero the gauge in all operating positions
  • Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX
  • Force gauge eZT with user switchable units: N, kgf (gf) and lbf (ozf)
  • Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)
  • In combination with a test stand with linear scale, force-displacement measurements are possible with force gauge eZT.
  • Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
  • 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording
  • Indication of two peak values per measurement.

Standard Features

  • The accuracy is depending on the connected load cell
  • Approx. 200 % overload protection
  • For hand-held use or mounting on test stand
  • Ergonomically-designed, rugged die-cast aluminium housing
  • Non-slip rubber grip
  • Operates on rechargeable battery and/or AC adapter

SPECIFICATIONS

Measuring principle: Bidirectional force sensor with strain gauge
Accuracy: ±0.2 % – 3.5 % full scale depending on the used load cell
Measuring units: N, kgf (gf), lbf (ozf) selectable
Display: OLED, 4 digit
Sampling rate: 2000 times/sec
Overload capacity: Approx. 200 % full scale,
symbol flashes at 110 % full scale
Display update time: 16 times/sec
Memory: Internal memory for max. 1000 values
recallable peak – compression/tension
Setpoints: Programmable Max/Min setpoint with color-coded indicators in the LED display
Output signal setpoints: Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal: RS-232 (8, 1, N, 19200),
analog ±2 V DC,
USB
Temperature range: 0 – 40 °C
Air humidity: 20 – 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 h continuous use,
approx. 2 h charging time) and/or 100 – 240 V AC adapter
and two adapters (EU/USA)
Housing material: Die-cast aluminium
Housing dimensions: 191 x 75 x 34 mm (LxWxH)
Weight, net (gross): Approx. 450 g
Force-displacement measurement: In combination with a test stand with linear scale force-displacement measurements are possible
Memory: Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording

Specifications subject to change without notice!

STANDARD ACCESSORIES

Force Logger

USB cable approx. 1.5 m long, CD-ROM with USB-driver and software “Force Logger” for data transfer



















ADW-6010 – AC Adapter

AC adapter for 100 – 240 V AC
Order number: ADW-6010













OPTIONAL ACCESSORIES

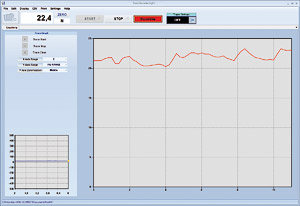

SW-21 – Force Recorder Light


Software for data acquisition by USB output
– Force-time graph
– Force gauge function setting
– Data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-21





SW-22 – Force Recorder Standard

Additional functions in comparison to Force Recorder Light:
5 graphs at maximum can be displayed in a table
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-22

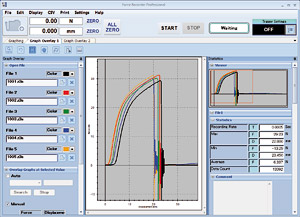

 SW-23 – Force Recorder Professional

Additional function in comparison to Force Recorder Light
– 5 graphs at maximum can be displayed in a table
– Force-displacement graphing (possible only in combination with a test stand with linear
scale)
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-23

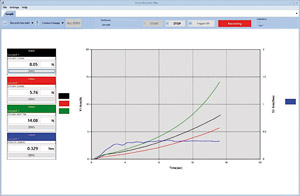

SW-26 – Force Recorder Plus

Software for Data acquisition by USB output:
– 10 graphs at maximum can be displayed in a table
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 8/8.1/10
Order number: SW-26

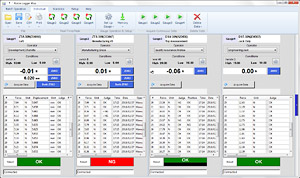

SW-13 – Force Logger Plus

Software for Data acquisition by USB output:
– data acquisition of 4 force gauges simultaneously
– force gauge function setting
– data storage as CSV file
Requirements: Microsoft Win 7/8/8.1/10
Order number: SW-13

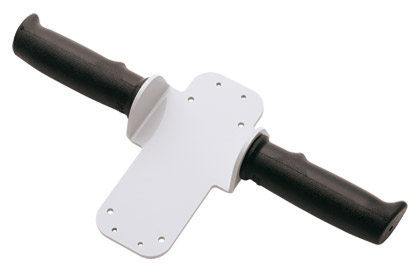

FOH-1 – Handle

For easy use the force gauge ZTA up to 1000 N can be equipped with a handle. Therefore especially higher forces can be measured more easily.
Order number: FOH-1













 Clamping Tools

Depending on the application we have a lot of clamping tools and clamps for force gauge ZTA in our programm.

Find further information at clamps and testing devices

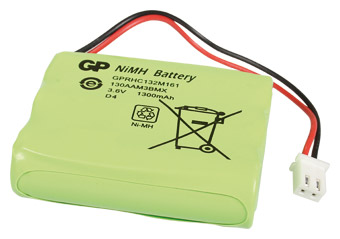

40018I – Accumulator

Nickel metal hydride accumulator, 2-pole connector
3.6 V, 1300 mAh
Order number: 40018I











 Calibration Certificate

Calibration certificate with calibration report is optional available.

CONNECTION CABLES

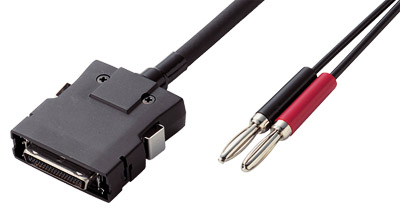

CB-108 – Connecting Cable analog

Connecting cable for analog output, for connection to a line recorder.
Length approx. 3 m
Order number: CB-108

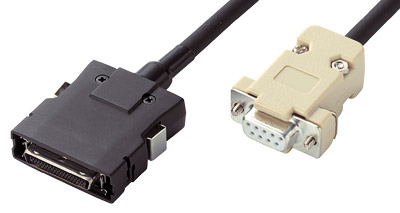

 CB-208 – Connecting Cable RS-232

Connecting cable for RS-232 output with sub D 9 female, for connection to PC.
Length approx. 3 m
Order number: CB-208

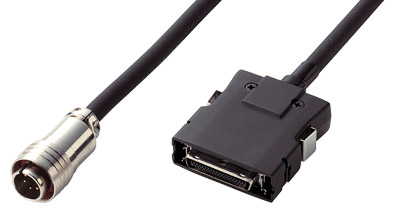

 CB-508 – Connecting Cable MX

Connecting cable for force gauge with test stand (Series MX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order number: CB-508









CB-528 – Connecting Cable MX2, EMX

Connecting cable for force gauge ZTA-DPU with test stand (Series MX2 and EMX) to stop feed at Fmax or overload (force control).
Length approx. 1.5 m
Order Number: CB-528

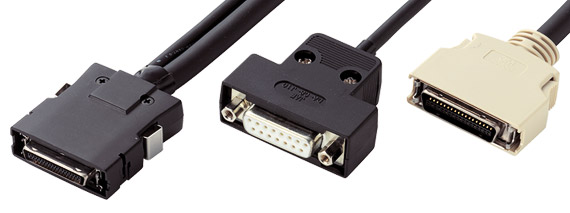

CB-718 – Connecting Cable EMX (firmware 2.0 or later), MX2-FA

Connecting cable for force gauge ZTA-DPU with test stand (series EMX-FA and MX2-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-718

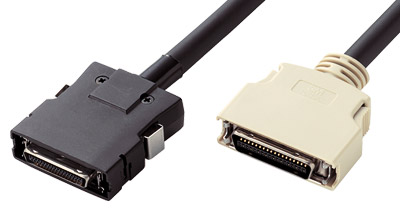

CB-728 – Connecting Cable EMX-FA (firmware earlier than 2.0)

Connecting cable for force gauge ZTA-DPU with test stand (EMX-FA) to enable force-displacement measurement.
Length approx. 1.5 m
Order number: CB-728

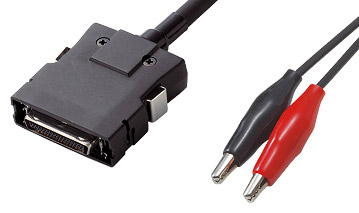

CB-808 – Connecting Cable trigger input

Connecting cable for trigger input (input signal from an external device e. g. electronic switch to stop the measurement)
Order number: CB-808

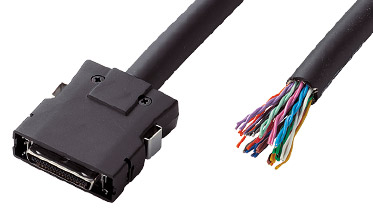

 CB-908 – Connecting Cable with open ends

Connecting cable with open ends (37-pin) for all available output signals to connect an unique device to force gauge ZTA-DPU.
Order number: CB-908

DELIVERY INCLUDES

Indicator and separate force sensor with carrying case, AC adapter, USB connecting cable, 1 CD-ROM with USB-driver and simple software for data transfer, USB-adapter, operating instruction in English
