Uni-T UTP1000 SERIES DC Power Supplies - EgeRate Elektronik https://www.egerate.com Tue, 18 Jul 2023 16:18:31 +0000 tr hourly 1 https://wordpress.org/?v=6.9.4 https://www.egerate.com/wp-content/uploads/2022/03/cropped-logo-2-32x32.png Uni-T UTP1000 SERIES DC Power Supplies - EgeRate Elektronik https://www.egerate.com 32 32 UTP1000 SERIES DC Power Supplies https://www.egerate.com/urun/test-ve-olcu/elektriksel-olcum/dc-guc-kaynagi/utp1000-series-dc-power-supplies/ Tue, 18 Jul 2023 16:09:02 +0000 https://www.egerate.com/?post_type=product&p=18429 The UTP1000 Series power supply is an economical switching type

DC regulated power supply with single output. It has a pure output,

excellent performance indicators, and can meet diverse testing needs.

Used in product debugging and maintenance, quality control and testing,

production automation testing, teaching experiments, etc.

TYPE
CHANNELS
Switching power supply
1



TOTAL POWER
OUTPUT VOLTAGE
320W
32V



OUTPUT CURRENT
RESOLUTION
10A
10mV/1mA



SETTING ACCURACY
Voltage :≤(0.01% + 5mV) ,Current:≤(0.2% + 3mA)

The post UTP1000 SERIES
DC Power Supplies first appeared on EgeRate Elektronik.

]]>

32V/10A,High resolution display

Maximum output voltage 32V, output current 10A,

resolution 10mV, 1mA

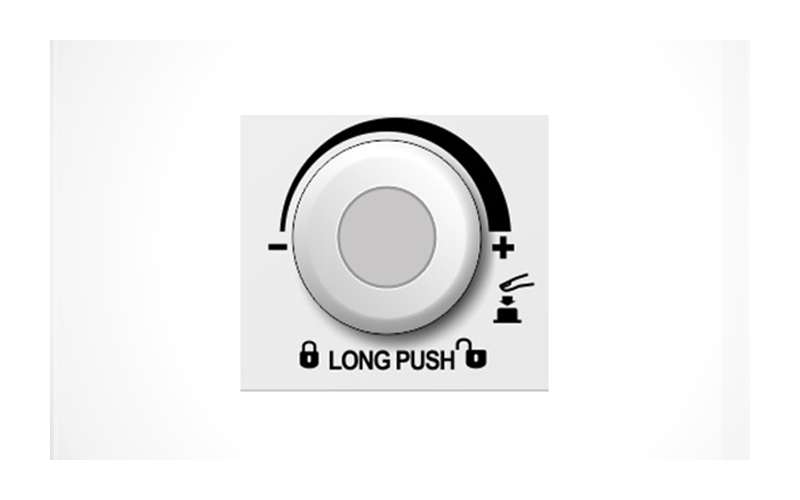

Panel lock function and Three sets of data storage calls

Long press to lock the panel to prevent misoperation

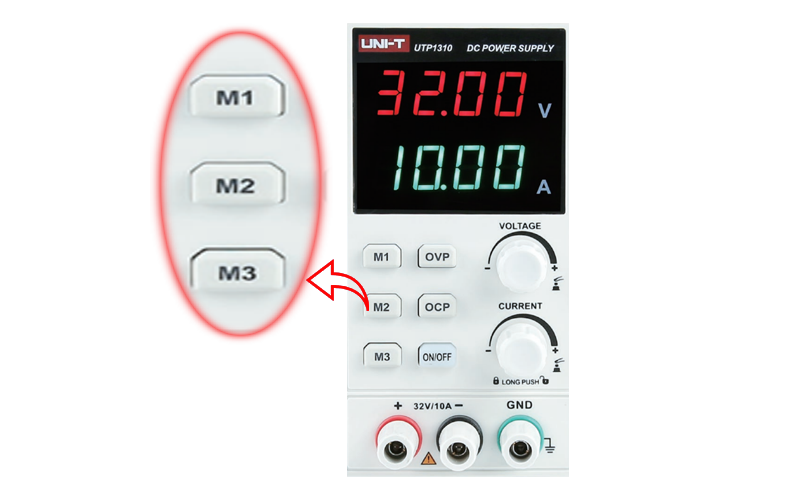

Three sets of data storage calls，Long press to save, short press to call

Over current protection, over voltage protection

When the actual output voltage is higher than the set value,

the protection function is triggered and the screen displays “-ER OVP-“

When the actual output current is higher than the set value,

the protection function is triggered and the screen displays “-ER OCP-“


Model Type Channels Total Power Output Voltage Output Current Resolutıon Settıng Accuracy Connectıvıty
UTP1310 Switching DC power supply 1 320W 32V 10A 10mV/1mA Voltage:＜0.01%＋5mV
Current:≤0.2%+3mA
UTP1306 Switching DC power supply 1 192W 32V 6A 10mV/1mA Voltage:＜0.01%＋5mV
Current:≤0.2%+3mA
