Video / Sync Generators - EgeRate Elektronik https://www.egerate.com Wed, 13 Sep 2023 14:52:36 +0000 tr hourly 1 https://wordpress.org/?v=6.9.4 https://www.egerate.com/wp-content/uploads/2022/03/cropped-logo-2-32x32.png Video / Sync Generators - EgeRate Elektronik https://www.egerate.com 32 32 LT 4610SYNC GENERATOR https://www.egerate.com/urun/pro-av/others/broadcast/video-sync-generators/lt-4611sync-generator-2/ Mon, 31 Jul 2023 08:31:29 +0000 https://www.egerate.com/?post_type=product&p=20061 The LT4610 is a 1U full rack size sync generator that can operate in synchronization with GPS, PTP, CW, and internal reference signals, as well as Genlock that supports external analog video synchronization signals.
It supports analog video sync signals, AES / EBU digital audio output, word clock, and time code, and also supports 3G / HD / SD-SDI output and 12G-SDI output compatible with 4K and 8K.
In addition, it supports the PTP grand master function and PTP slave function, and can manage the optimum synchronization system according to the system.
The genlock function is equipped with a STAY IN SYNC function that retains the phase when an abnormality occurs in the input analog video synchronization signal, and the power supply unit performs redundant operation, enabling highly reliable system construction.

The post LT 4610
SYNC GENERATOR first appeared on EgeRate Elektronik.

]]> The LT4610 is a 1U full rack size sync generator that can operate in synchronization with GPS, PTP, CW, and internal reference signals, as well as Genlock that supports external analog video synchronization signals.
It supports analog video sync signals, AES / EBU digital audio output, word clock, and time code, and also supports 3G / HD / SD-SDI output and 12G-SDI output compatible with 4K and 8K.
In addition, it supports the PTP grand master function and PTP slave function, and can manage the optimum synchronization system according to the system.
The genlock function is equipped with a STAY IN SYNC function that retains the phase when an abnormality occurs in the input analog video synchronization signal, and the power supply unit performs redundant operation, enabling highly reliable system construction.

The post LT 4610
SYNC GENERATOR first appeared on EgeRate Elektronik.

]]> LT 4611SYNC GENERATOR https://www.egerate.com/urun/pro-av/others/broadcast/video-sync-generators/lt-4611sync-generator/ Mon, 31 Jul 2023 08:03:22 +0000 https://www.egerate.com/?post_type=product&p=20043 The LT4611 is a 1U full rack size sync generator that can operate in synchronization with GPS, BDS, PTP, CW, and internal reference signals, as well as Genlock that supports external analog video synchronization signals.
It supports analog video sync signals, AES / EBU digital audio output, word clock, and time code, and also supports 3G / HD / SD-SDI output and 12G-SDI output compatible with 4K and 8K.
In addition, it supports the PTP grand master function and PTP slave function, and can manage the optimum synchronization system according to the system.
The genlock function is equipped with a STAY IN SYNC function that retains the phase when an abnormality occurs in the input analog video synchronization signal, and the power supply unit performs redundant operation, enabling highly reliable system construction.
LT4611 has slimmed down the standard functions from the standard specifications of the LT4610, the SDI output function, audio output function, and three of the six analog sync signal output systems to be prepared as optional product. Functions can be added as needed, allowing you to configure the system with specifications that meet your objectives.

The post LT 4611
SYNC GENERATOR first appeared on EgeRate Elektronik.

]]> The LT4611 is a 1U full rack size sync generator that can operate in synchronization with GPS, BDS, PTP, CW, and internal reference signals, as well as Genlock that supports external analog video synchronization signals.
It supports analog video sync signals, AES / EBU digital audio output, word clock, and time code, and also supports 3G / HD / SD-SDI output and 12G-SDI output compatible with 4K and 8K.
In addition, it supports the PTP grand master function and PTP slave function, and can manage the optimum synchronization system according to the system.
The genlock function is equipped with a STAY IN SYNC function that retains the phase when an abnormality occurs in the input analog video synchronization signal, and the power supply unit performs redundant operation, enabling highly reliable system construction.
LT4611 has slimmed down the standard functions from the standard specifications of the LT4610, the SDI output function, audio output function, and three of the six analog sync signal output systems to be prepared as optional product. Functions can be added as needed, allowing you to configure the system with specifications that meet your objectives.

The post LT 4611
SYNC GENERATOR first appeared on EgeRate Elektronik.

]]> AT-4820/AR-4821 Camera Adapter / Base Station https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/at-4820-ar-4821-camera-adapter-base-station/ Fri, 23 Jun 2023 13:32:53 +0000 https://www.egerate.com/?post_type=product&p=16406

Outline of product

The signal of various devices such as the signal of the shoulder type and the handy type camera recorder is transmitted by the optical fiber cable.
A single optical fiber cable enables long-distance transmission of camera video signals, microphone audio, AES/EBU, return signals, tally signals, intercams, camera remote controls, genlock signals, and LANs required for system cameras (studios).

The post AT-4820/AR-4821
Camera Adapter / Base Station first appeared on EgeRate Elektronik.

]]> Configuration of 8K camera optical fiber transmission system

The post AT-4820/AR-4821
Camera Adapter / Base Station first appeared on EgeRate Elektronik.

]]> RB-4816-2 8K Camera Remote Controller https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/rb-4816-2-8k-camera-remote-controller/ Fri, 23 Jun 2023 13:25:31 +0000 https://www.egerate.com/?post_type=product&p=16405

Outline of product

A camera remote controller compatible with ASTRODESIGN’s 8K camera such as AA-4814-B and AB-4815.
MENU screen can be called up from the remote control to HD OUT of the 8K camera.
Basic operation of the 8K camera can be carried out by hand.

The post RB-4816-2
8K Camera Remote Controller first appeared on EgeRate Elektronik.

]]>

Features

  • Compatible with lens remote
    Iris, focus, and zoom can be adjusted with separate dial.
    The most frequently used iris is large and located close to hand.
    Compatible lenses: Fujifilm ZK series, Canon CN7
  • Adjust Gain, Shutter, CC filter, and ND filter
    Parameters related to brightness, such as gain, shutter, and ND filter are adjustable.
  • Adjust White, Black R-gain, and B-gain
    White and black R gain and B gain to adjust the color balance are adjustable by independent dial.
  • Three assignable buttons and four scene buttons
    Implemented three assignable buttons that correspond to the buttons 1-3 of 8K camera.
    Assigned functions can be operated from the remote control unit.
    It also has four scene buttons, so you can save and recall settings that have been changed by lighting or shooting environment from the remote control.

* Need to select the cable depending on the camera or device to be connected.

Type of the camera remote controller cable

Connecting the camera directly to the remote controller.



Connecting the camera to remote controller through the optical transmitter device.

The post RB-4816-2
8K Camera Remote Controller first appeared on EgeRate Elektronik.

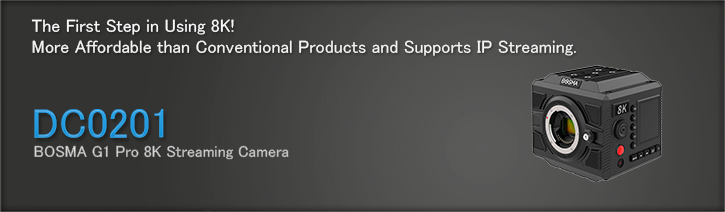

]]> DC0201 BOSMA G1 Pro 8K Streaming Camera https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/dc0201-bosma-g1-pro-8k-streaming-camera/ Fri, 23 Jun 2023 13:06:45 +0000 https://www.egerate.com/?post_type=product&p=16396

Outline of product

The First Step in Using 8K!
More Affordable than Conventional Products and Supports IP Streaming.

The post DC0201
BOSMA G1 Pro 8K Streaming Camera first appeared on EgeRate Elektronik.

]]>

Features

● Supports 8K 30p shooting with a 33 million pixel CMOS image sensor
● Supports BK 30p real-time streaming via IP
● Supports Timecode in/out
● Supports video transmission protocols RTSP, RTMP, RTP, HLS, NDI and SRT
● Remote control of lens with Micro Four Thirds lens mount
● Compact size that can be carried on a drone

Use Cases

The post DC0201
BOSMA G1 Pro 8K Streaming Camera first appeared on EgeRate Elektronik.

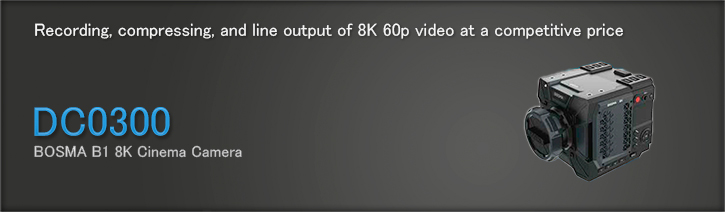

]]> DC0300 BOSMA B1 8K Cinema Camera https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/dc0300-bosma-b1-8k-cinema-camera/ Fri, 23 Jun 2023 12:54:37 +0000 https://www.egerate.com/?post_type=product&p=16394

Outline of product

Recording, compressing, and line output of 8K 60p video at a competitive price

The post DC0300
BOSMA B1 8K Cinema Camera first appeared on EgeRate Elektronik.

]]> Features
  • Supports 8K 60p shooting with a 47.94 million pixel full-frame CMOS image sensor with PL lens mount
  • Bosma B1 enables high picture quality imaging with low motion distortion. We suggest it be used for BK transmission of live events such as stage and music

Multiple Resolutions and Framerates

○ : To record images to be played back as slow motion images at high frame rate which is up to 120P or 240P, only crop modes are available in 4k and 2k resolution.

The post DC0300
BOSMA B1 8K Cinema Camera first appeared on EgeRate Elektronik.

]]> AB-4831 8K 60Hz Portable Camera https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/ab-48318k-60hz-portable-camera/ Thu, 22 Jun 2023 11:23:28 +0000 https://www.egerate.com/?post_type=product&p=16351

Outline of product

An 8K 60Hz portable camera equipped with a camera sensor featuring a global shutter function and image processing function.
8K video can be output in real-time with 4 lines of 12G-SDI for use in live events such as stage performances and sports matches.
The camera can be controlled externally by connecting a remote controller (RB-4816-2).





The post AB-4831
8K 60Hz Portable Camera first appeared on EgeRate Elektronik.

]]> Features

The post AB-4831
8K 60Hz Portable Camera first appeared on EgeRate Elektronik.

]]> AB-4830/AC-4829 Multi-Purpose Camera System A... https://www.egerate.com/urun/pro-av/others/broadcast/professional-cameras/ab-4830-ac-4829multi-purpose-camera-system-ac-4829-ab-4830/ Thu, 22 Jun 2023 11:12:42 +0000 https://www.egerate.com/?post_type=product&p=16347

Outline of product

A fanless, lightweight (weight: 340g) and compact 8K camera system equipped with a camera sensor featuring a global shutter function. The size of camera head enclosure is 65mm×65mm. The system consists of a camera head and a CCU. The captured video is output from the CCU in 8K in real-time with 4 lines of 12G-SDI. The camera and CCU can be separated by up to 100 meters, making it possible to shoot from a remote location.





The post AB-4830/AC-4829
Multi-Purpose Camera System A... first appeared on EgeRate Elektronik.

]]> Features

The post AB-4830/AC-4829
Multi-Purpose Camera System A... first appeared on EgeRate Elektronik.

]]> OT-5902/OR-5903 Optical transmission device f... https://www.egerate.com/urun/pro-av/others/broadcast/test-equipments/ab-4838-ac-48378k8k-multi-purpose-camera/ Thu, 22 Jun 2023 10:54:29 +0000 https://www.egerate.com/?post_type=product&p=16342

Optical fiber connection between  8K compact camera head and CCU

Outline of product

This device enables optical fiber connection between the 8K compact camera head (AB-4830) and CCU(AC-4829).
The range of use of 8K video such as weather camera, surveillance system, wired drone shooting, wire camera, orchestra shooting, etc. is greatly expanded.





The post OT-5902/OR-5903
Optical transmission device f... first appeared on EgeRate Elektronik.

]]>

Features

  • Optical conversion between AB-4830 and AC-4829 can transmit up to 2km
  • Like the AB-4830, it has a fan less design, making it ideal for operation in quiet environments such as orchestras and theater stages.
  • Using the Camera Remote Controller (RB-4816-2) it supports Micro Four Thirds lenses and control of lenses compatible with ARIB TR-B37 digital commands.

Connection Diagram

8K Shooting system diagram using OT-5902/OR-5903

The post OT-5902/OR-5903
Optical transmission device f... first appeared on EgeRate Elektronik.

]]> ez-DSK Live CG Generator https://www.egerate.com/urun/pro-av/others/broadcast/video-sync-generators/ez-dsk-live-cg-generator/ Mon, 19 Jun 2023 11:23:26 +0000 https://www.egerate.com/?post_type=product&p=15929 Features that ez-DSK has are what power this CG generator. The ez-DSK gives you Zero Delay through its internal Fill & Key overlay application. It also has a Fail Safe mechanism to prevent catastrophic broadcasting disasters. At the same time, your video signals will be re-clocked with ez-DSK.

The post ez-DSK
Live CG Generator first appeared on EgeRate Elektronik.

]]> ez-DSK Live CG Generator
ez-DSK allows easy application of subtitles, images, sequences, videos, and widgets over your video program.
Connect the ez-DSK to your PC (Windows OS) through USB 3.0 and send all your graphics created with our dedicated CG software “ez-CGER.”

Key features of ez-DSK

Features that ez-DSK has are what power this CG generator. The ez-DSK gives you Zero Delay through its internal Fill & Key overlay application. It also has a Fail Safe mechanism to prevent catastrophic broadcasting disasters. At the same time, your video signals will be re-clocked with ez-DSK.

Fail Safe

Feel safe with ez-DSK’s Fail Safe. Even when powered off, your broadcasting will continue (1 SDI output port), so do not worry about it malfunctioning during your live show.

Zero Delay

The ez-DSK overlays the CG over your video stream by internally processing the Key & Fill. It gives you Zero Delay to your broadcasting. On top of that, there is no need to spend an extra port of your switcher.

Distributor and Converter

There are 4 SDI output ports, 1 HDMI output port, and 1 SDI loop out port. You can add multiple monitors to the ez-DSK without the need of a distributor. (Or a SDI to HDMI converter for that matter).

Complimentary CG software

All Lumantek CG products come with their dedicated CG software, the “ez-CGER.” This software has an easy user interface to learn. You will be a pro in no time.
ez-DSK

Input Ports

Video:
1 x SDI

Computer Graphics:
1 x USB 3.0

ez-DSK

Output Ports

Video:
1 x SDI (Loop Out)
4 x SDI (1 port has ‘Fail Safe’ mechanism)
1 x HDMI

Apply details to your CG

It is not easy to insert CG to your video unless of course you are a professional in the field using often expensive and sophisticated applications. ez-DSK and ez-CGER (the software) will make you able to apply details into your video easily. The user interface of the ez-CGER has the most commonly used program interfaces, and you will be able to learn its functions quite quickly. Unique function of ez-DSK is that you do not need Fill & Key as conventional CG devices. All you need is a PC with USB 3.0, and you video in SDI format.

*System requirements must be met.

The post ez-DSK
Live CG Generator first appeared on EgeRate Elektronik.

]]>
