Can record standalone

* Option B-568 is required for wireless LAN operation

Mount or embed in a system

Real time remote monitoring and control via Ethernet, Wireless LAN * and USB (Software is standard accessory)

Modbus/TCP for for PLC I/O channels

Bidirectional comminucation between PLC and GLT400 via Modbus /TCP, Start or stop command can be sent from PLC.

Enable to use as PC hosted data logger

Connection to PC via USB ,LAN and Wireless LAN. Standalone or PC hosted data logger for R&D, Quality and Production.

Connect as a remote terminal unit of GL840

Expand up to 200 ch (incl.GLT400) per GL840 or Up to 5 units of GLT400 can be connected to GL840 host.
Setup and control GLT400 with GL840. Captured GLT400 data can be viewed and stored on GL840.

* Option B-568 is required for wireless LAN operation

Wireless LAN Connection

Direct connection by Wireless LAN
(When using multiple devices, use Router by WPS)

Ethernet Connection

Connect directly by Ethernet
(When connecting multiple devices, use network hub)

Wireless LAN & Ethernet Connection

Data recorded by GLT400 and GL840 set up on the 1st and 2nd floors of a building can be set, controlled and confirmed on the 3rd floor PC.

How to embed into the system

Optional DIN rail kit, part B-540. One B-540 required for GLT400 and one B-540 for B-566 base terminal.

Automatically switches to AC to USB PD

Expandable and various input terminals depending on applications

Combinations of input terminal / terminal base can make suitable machine configurations depending on measurement conditions.

Reliable channel-to-channel isolated input
Analog input terminal capable of multi-input (common analog input terminal)

Voltage, temperature, and humidity can be selected for each input channel.
Use EU scaling for other measurement parameters.

Measure current (4 -20 mA)

Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range

Shunt resistance 250Ω (B-551)
* Cannot use B-551 resistor with B-564SL input terminal

Measure humidity

A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity range

Humidity sensor (B-530)

Digital I/O port available

Digital I / O can be used by connecting an optional I / O cable.

* Input/Output cable (B-513)
* When connected as a remote terminal unit of GL840, this function cannot be used.

Logic/Pulse inputs (4 channels)

Logic

No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (H.L decision)

Pulse

3 types of selections (Rotation / Quantity count / Instantaneous) per channel

Alarm output (4Channels) & Signal input for external trigger (1Channel)

Start/Stop recording with external trigger.
Alarm output port (1 to 4) are set for each analog input channel.

Various terminals for different applications

Various terminals for different applications. Choose based on connector type, accuracy or isolation differences.
Configure for application requirements.

Temperature accuracy is the value when 100 °C is measured when using a K-type thermocouple (including reference contact compensation accuracy).

Terminal Base Cover (B-588)

Compatible with all input terminals
* Except using with shunt resistor (B-551)

Expandable up to 200 channels

By adding an analog input terminal and an terminal base, it can be expanded in 20ch increments from a min of 20ch to a max of 200ch.

(*2)

Input terminal price is means of standard terminal price.
Terminals (B-564,B-564SL,B-565) can be mixed. However, if you mix B-565 with B-564 or B-564-SL, the specification of B-565 will be equivalent as B-564 or B-564-SL.
When connected as a remote unit of the GL840 series, 180ch is the maximum. (GL840: 20ch + GLT400: 180ch) (sytem max. 200ch)

Expansion method (2 types)

The measurement data is safely stored in the flash memory of the main unit

Standard 4GB Built-in Flash memory and available SD card slot.

Internal memory : 4GB
SD card slot : Support SDHC and Max 32 GB
* SD card cannot be used when the wireless LAN unit is used.
* Max single file size is 2GB. (use Relay mode to extend recording)

Ring capture function

The old data is deleted, and most recent data is saved. When stop the recording, selected data point is saved.
(Number of capturing data is 1000 to 2000000 points)

Relay capture function

Save data to multiple files with specified capturing time or file size until recording data is stopped.

Hot-swapping the SD memory card

SD card can be replaced during data capture when the sampling interval is 100ms or slower.

*SD card cannot be used in the slot while the wireless LAN unit (B-568) is used.

Back up recording data

The recorded data can be automatically backed up to other storage media at regular intervals. FTP backup has a function to delete files in the main unit when the backup is successful.
Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: Built-In Flash memory, SD memory card, FTP server
Data file format: GBD (binary) or CSV (text)

*Available sampling speed is 100 ms or slower when recording in CSV format.

*When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.

*The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.

*When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

USB drive mode

Connect the GLT400 to PC with a USB cable and boot in USB drive mode, it will be recognized as an external drive for your PC. The measurement data in GLT400 can be transferred to PC by drag and drop.

Standard Accessory for 2 types of PC software and web browser function

Simple Operation Software “GLT400 SETTING APP”

Easily enter settings and monitor measured data from a PC. GLT400 is ideal for use with single unit. GLT400 inherited the setting screen menus from GL series.

Advanced Function Software “GL-Connection”

Max 20 units of GLT400 can be connected.
Display modes come standard with a Y-T View, Digital View, XY View and FFT View.
Contains direct Excel functions and a file connection function. Can convert GBD files to CSV format.

Direct Excel function installed

A function that transfers recorded data directly to specified Excel template file with recording start.
Creates a measured data file when stop recording by utilizing a computational expression and macro in combination.

Settings, control, data confirmation/transfer are possible from a PC without using dedicated software

Equipped with a WEB browser function that allows settings, control, and real-time measurement values with a WEB browser without using dedicated software, and an FTP client function that transfers files to a PC.
Supported browser : Google Chrome (Recommended), Microsoft Edge, Firefox

Available functions on 2 software and web browser

*

GL7000 / GL2000 / GL980 / GL840 series / GL240 / GLT400 (Currently-used models only)

SDK (Software Development Kit) is offered for free

Please select the OS that may be used to develop for your software

• USB Driver
• Manual (Product-releated, Communication interface-releated,Data files-releated, ModbusTCP specification)
• LabVIEW VI
• Sample Program (C# / VisualC++ / VisualBasic)
• Digital certificate installation tool

The post GLT400
Multi-Use Data Logger first appeared on EgeRate Elektronik.

Flexible input module allows wide range of measurements

The GL100 series announces support for additional sensors in volatile wireless and non-wireless environments with ability to exchange input module.

GL100 are using the Wireless LAN (WLAN) of the IEEEE802 standards. Area that can use it is limited by the Wireless Telegraphy Act in the region.

The post GL100
Compact Data Logger first appeared on EgeRate Elektronik.

The most recent data is saved when the memory is configured in ring memory mode. (Number of capturing data is 1000 to 2000000 points)

Data is continuously saved to multiple files up to 2GB without losing any data until capturing is stopped when the memory is configured in the relay mode.

Hot-swapping the SD memory card

SD card can be replaced during data capturing when the sampling interval is 100ms or slower.

Back up recording data

The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.

Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: SD memory card or FTP server
Data file format: GBD (binary) or CSV (text)
* The CSV format is available with firmware version 1.43 or rater.
• Available sampling speed is the 100 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.

• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Data file verification

It is a function to check the integrity of the data file when replaying the data file. It compares check-sum generated from the data file and recorded check-sum. When two check-sums do not match, the data file may be corrupted or has been changed by someone. The check-sum code is recorded into the file when data file is created by the GL unit.
* Check-sum code is added to normal data recording file and also file created for backup, ring or relay recording. Adding check-sum is available for data files created in GBD format.When the recorded data file is converted and saved using GL100_240_840-APS or GL-Connection software, the check-sum code will not match.
* This function is available with firmware version 1.43 or rater.

Useful functions

Displays the data by a bar chart (in firmware ver.1.10 or later)

The integrated data that is measured by the digital sensors can be displayed by a bar chart in the GL240 series.

Available GS sensors	Measurement	Unit
GS-TH (Temp/Humidity) sensor	Integrated temperature	℃h
GS-DPA-AC adapter with GS-Acxxx sensor (AC current/power)	Integrated power	kWh
GS-LXUV (Illuminance/UV) sensor	Integrated illuminance	lxh or klxh
GS-LXUV (Illuminance/UV) sensor	Integrated UV	mW/cm2h

Alarm signals can be placed using the four channel alarm output ports based on set conditions for each channel.
* Optional cable (B-513) is required.

USB drive mode function enables data to be transferred to the PC from GL240 by drag&drop feature.

Carries a clear 4.3-inch wide TFT color LCD screen （WQVGA：480×272 dot）for the GL240. Monitoring data are displayed in waveform or digital form option. Parameter settings can be displayed on the screen.

Choose from AC power supply, DC supply* or the rechargeable battery pack.*
* Optional accessories (B-514 or B-569) are required.

Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Protect the main body from cosmetic damages and minor impacts.
* The cover is not to protect from hard impact.

Storage case (B-581)

Portable case to store GL240 and signal input cables for easy handling.
* The case is not to protect from hard impact.

The post GL240
midi Logger first appeared on EgeRate Elektronik.

* Accuracy rating for K-type thermocouple at 100ºC includes reference junction compensation. Accuracy varies by temperature levels and thermocouple types.

The following shows how a standard configuration is expanded to more than 40 channels

Configuration for additional channels

Offers longer cable for the input terminals

Input terminal blocks can be connected directly (in daisy chain), or using the B-567 cable(s). This allows the input terminals to be placed in separate locations according to the need of the application.

The input terminal unit and the GL840 main body can be extended by using an extended connections cable.

* If the signal is affected by noise, it may be required to use a slower sampling.

Optional terminal lineup

Standard terminal : B-564

This standard terminal is mounted on the standard model GL840-M of the main unit.
It is a multi-standard terminal in the terminal line-up.

Specifications: Same as the above specifications.

Withstand high-voltage high-precision terminal : B-565

This withstand high-voltage high-precision modelthe terminal is mounted on the GL840-WV of the main unit.
It is a withstand high-voltage and high-precision terminals in the terminal lineup.

Specifications: Same as the above specifications.

Screwless terminal : B-564SL

The performance of this newly added terminal is equivalent to that of the standard terminal B-564.
The push-button shape of the terminals makes it easy to connect signal input lines, greatly reducing wiring time when using multiple channels.
* This terminal is only available as an option item. It is not sold in combination with the main unit.

Terminal Base Cover : B-588

This is a newly added optional terminal cover.
It can be mounted on each terminal of the B-564/565/564SL.
It is ideal as a safety measure to prevent accidental touching of the wire connections.
* This is not compatible with shunt resistor (B-551)

Input system 2 : Support digital sensors

Digital sensors and input terminal/adapters for the GL100 connects to the GL840 directly

Input system 3 : 4 channels of Logic/Pulse inputs

Supports 4-channels logic or pulse signal inputs. Pulse mode allows cumulative, instant, or rotational values for industrial measurement capability with speed and flow.

The most recent data is saved when the memory is configured in ring memory mode. (Number of capturing data is 1000 to 2000000 points)

Data is continuously saved to multiple files up to 2GB without losing any data until capturing is stopped when the memory is configured in the relay mode.

SD card can be replaced during data capturing when the sampling interval is 100ms or slower.

Back up recording data

The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.

Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: SD memory card or FTP server
Data file format: GBD (binary) or CSV (text)

• Available sampling speed is the 100 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Data file verification

It is a function to check the integrity of the data file when replaying the data file. It compares check-sum generated from the data file and recorded check-sum. When two check-sums do not match, the data file may be corrupted or has been changed by someone. The check-sum code is recorded into the file when data file is created by the GL unit.

* Check-sum code is added to normal data recording file and also file created for backup, ring or relay recording. Adding check-sum is available for data files created in GBD format.When the recorded data file is converted and saved using GL100_240_840-APS or GL-Connection software, the check-sum code will not match.
* This function is available with firmware version 1.43 or rater.

Useful functions

Displays the data by a bar chart (in firmware ver.1.10 or later)

The integrated data that is measured by the digital sensors can be displayed by a bar chart in the GL840 series.

Available GS sensors	Measurement	Unit
GS-TH (Temp/Humidity) sensor	Integrated temperature	℃h
GS-DPA-AC adapter with GS-Acxxx sensor (AC current/power)	Integrated power	kWh
GS-LXUV (Illuminance/UV) sensor	Integrated illuminance	lxh or klxh
	Integrated UV	mW/cm2h

Alarm signals can be placed using the four channel alarm output ports based on set conditions for each channel.
* Optional cable (B-513) is required.

USB drive mode function enables data to be transferred to the PC from GL840 by drag & drop feature.

Simple to use navigation screen allows setting operation for measurement and wireless LAN adapter.

Monitoring data can be displayed in waveform or digital form. Parameter settings can be displayed on the screen.

Choose from AC power supply, DC supply* or the rechargeable battery pack.*
* Optional accessories (B-514 or B-569) are required.

Various functions are available using a network.
Web & FTP server function, FTP client function, NTP client function

Protect the main body from cosmetic damages and minor impacts.
* The cover is not to protect from hard impact.

Portable case to store GL840 and signal input cables for easy handling.
* The case is not to protect from hard impact.

The post GL840
midi Logger first appeared on EgeRate Elektronik.

Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.

CAT III 600 V is compatible with measuring power supply circuit in an equipment that captures power directly from the distribution panel.

Measures abnormalities in a repeated waveform by effectively measuring the corresponding RMS value

• In 1000 Vrms range, Crest Factor is up to 1.41
  * Maximum rated safety voltage: 600 V rms, Peak voltage: 850V
• In other range, Crest Factor is up to 2.0

Scaling (Engineering unit) function

Measured voltage value can be converted to a specified engineering unit. The value can be displayed with the physical measurement value of the sensor and be saved into the data file with the converted values.

Calculation function between channels

Four arithmetic operations (Addition, subtraction, multiplication and division) are available using two analog input channels.
* Data can be saved only in GBD file format.

 Example

CH2 = CH3 * CH1
(CH2 is a value obtained by multiplying the values of CH3 and CH1)
* Value of calculated results are displayed and saved into data file.

Large Easy-to-read 7-inch LCD

Monitor data in multiple methods in addition to digital value display and full waveform display screen.

Y-T waveform monitor screen

Displays data with analog waveform and digital value. Screen can also be split into 1, 2, 4 or 8 zones to display the channels in different zones.

Digital monitor screen

Displays current data in digital value and results of real time statistical calculation. (Function: Maximum, Minimum, Peak-to-peak, and Average)When displays only current data, it can be shown in 1, 2, 4 or 8 zones.

Past waveform monitor screen

Display the past part of the data while capturing data. Execute without stopping measurement and also scroll past data. Data screen can be switched with past and current.

XY graph monitor screen

Emulates the classic XY chart recorder. Also supports features for pen up/down and position movement.

Quick and Easy Set Up Process

Simple operation with cursor and enter keys, and menu-driven operation with six pre-set menu screens: AMP, DATA, DISP, TRIG, I/F (Interface) and OTHER.

Other helpful functions

Delivers reliable measurements out at a location with unstable power supply.

Equipped with three types of options for power source, AC adapter, DC input, and battery pack. With a battery pack, GL2000 runs continuously for approximately 3 hours. If an AC power failure occurs, it will automatically switch from the AC adapter to the battery pack. Additionally, when the voltage of the battery pack reaches low, measurement is automatically stopped after saving the data file preserving the accumulated data. (Requires two battery packs (B-569 option) installed.)

Instrument is in compliance with JIS Vibration Test Method for Automobile Type 1 Class A.
(Vibration durability test: 5 m/s²)

Portable case to store GL2000 and signal

input cables for easy handling.
* The case is not to protect from hard impact.

Protect the main body from cosmetic

damages and minor impacts. GL2000 is shipped with cover attached.
* The cover is not to protect from hard impact.

Supports large built-in RAM (4MS/ch) and built-in Flash (4 GB)

Long term recording is made possible with 4 M samples/ch built-in

RAM and 4 GB built-in Flash memory. It supports both USB Flash memory and SD Card memory to be used as external storage devices for recorded data for certain sampling intervals.

Approximate recording time
■ 4 channels of analog input. ■ Data is saved as a GBD file.

■ 4 channels of analog input with 4 channels of Pulse input. ■ Data is saved as a GBD file.

* When using 8 GB or larger memory, the size of data file will be up to 4 GB. The Relay mode enables extended recording time.

Memory division function

Ring mode

Built-in RAM can be divided into 1, 2, 4, or 8 blocks with multiple high-speed recording measurement using the trigger function.

 Single block
When multiple measurements are executed, the captured data is overwritten in memory block 1.

 Divided into 8 blocks
When multiple measurements are executed, recorded data is stored in the next memory block.

Saves most recent data of specified number after recording stops.

Number of capturing data  1000 to 10000000 data
* When using built-in RAM, 10 to 4000000 data

Relay mode

Save & replay data in CSV format

Save data to multiple files with specified capturing time or file size (up to 4 GB) until recording data is stopped.

Captured data can be saved with GBD (binary) and CSV (text) format. CSV format file can be played on GL2000 and opened with spreadsheet software.

Data backup and hot swaps

The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.

Backup interval: 1, 2, 6, 12, 24 hour(s)

Backup file destination: Built-In Flash memory, SD memory card, USB memory device, FTP server
Data file format: GBD (binary) or CSV (text)
* The CSV format and FTP server are available with firmware version 1.14 or rater.
• Available sampling speed is the 100 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Auto save function

Search function

Equipped with Ethernet (LAN) and USB interface to communicate with PC

Convenient function with LAN (Ethernet interface) capability

When GL2000 is connected to LAN using the Ethernet interface, networked computer can monitor real-time measured value, transfer files, and change set ups without using application software (GL980_2000-APS software).

Web server function

GL2000 can be controlled externally via a network on the WEB browser, which also supports real-time monitoring and ability to use the menu buttons.

FTP server function

File in available storage device on GL2000 except built-in RAM can be transferred or deleted from the PC.

NTP client function

The clock on the GL2000 is periodically synchronized with the NTP server.

Email sending function

Send information when alarm occurs, or when battery is low, or when communication speed drops, or to notify when the space becomes limited on the storage device by an e-mail to specified address. Information can also be sent periodically by settings.

The post GL2000
midi Logger first appeared on EgeRate Elektronik.

The measurement signal can be displayed in various types of screens adapted to applications.

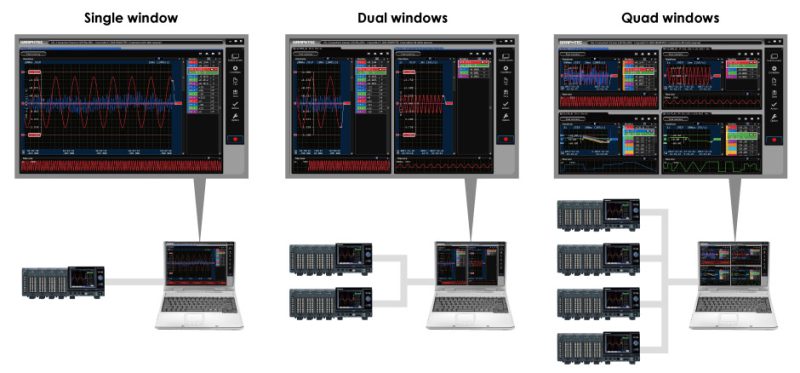

Multi-window function, measured signal can be displayed in various forms

Multi-window function

The GL-Connection software supports up to 2000 channels and up to 20 units of the GL series. It splits up to 4 windows and each window can display different format for easy monitoring signal in large channels.

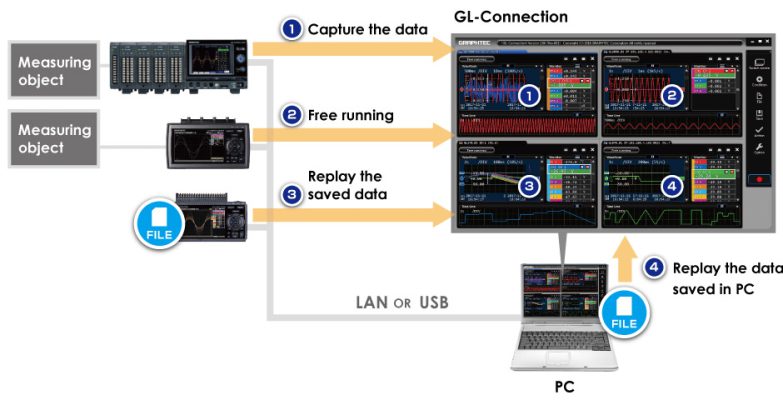

When the unit of GL series is connected to the PC via Ethernet or USB, the GL-Connection software can manage a various information such as the data in capturing, data in the free running – displaying data without saving – and data in saved file. The GL-Connection software can also display the data saved on the PC.

Tab function

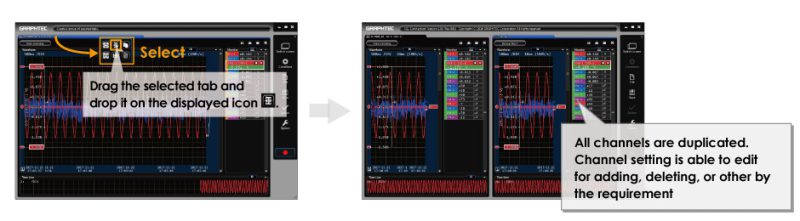

The tab function allows you to manage the screen so that it can be intuitive and easy monitoring. Screen displayed in multi-window can split using the tab and selected items can be displayed. Items to be displayed can be set in detail, such as the GL body level, individual input module level, the specified channel, and other settings.

Copy of the entire tab

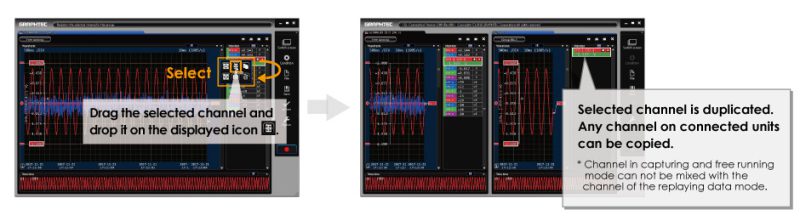

Copy of the channel

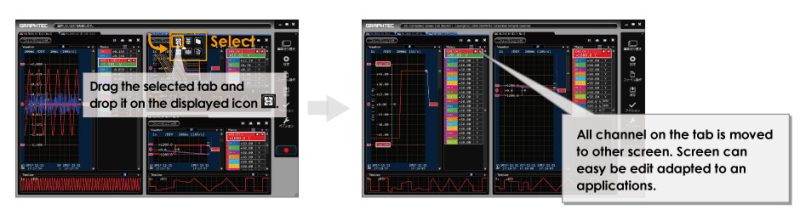

Move of the tab

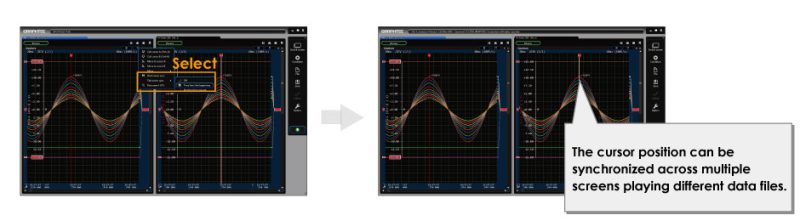

Cursor synchronization

Release of remote lock of GL7000

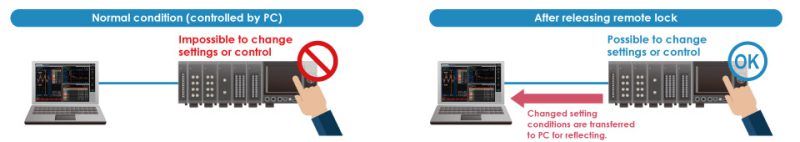

When controlling GL7000 from PC, it is impossible to operate on the main unit to prevent conflict of setting conditions.
It allows to operate the main unit even when GL7000 is under controlling from PC.

Integrated application software for the GL series

GL-Connection software is an integrated application software for GL series including GL7000, GL2000, GL980, GL900, GL840, GL820, GL240, and GL220. When the software is used with the GL7000, it can be controlled and displayed the data including the FFT measurement. When other GL series is used, the software has mainly the waveform viewing function and have also the function to control basic items. Data captured by other GL series is compatible with the GL-Connection and APS software.

Connection of multiple units and the integrating function of the saved data

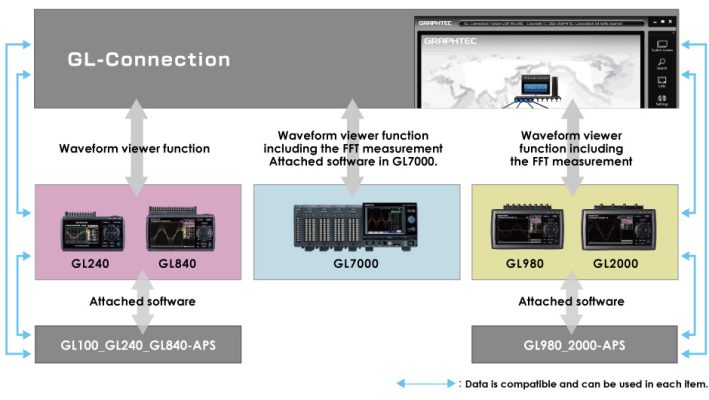

GL-connection software will be able to manage multiple units in a mixed condition of the GL series. Data integration function allows you to understand the overall situation immediately by creating single file at the same time axis from multiple data file saved by each unit.

Connection method	Model	Model mixed	Control of Start/Stop	Data integration
1.Multiple unit connection	GL7000 GL2000 GL980 GL900 GL840 GL820 GL240 GL220	Yes	It make operation for each unit.	It makes manually after completing the data capture.
2.Link connection (simultaneous)	GL7000 GL2000 GL980 GL900 GL840 GL820 GL240 GL220	Yes	All units make the action in a single operation. * The timing of the action is maybe synchronized.	It makes automatically after completing the data capture. It can also make manually.
3.Link connection (synchronous) * Sync cable is used to connect each unit.	GL7000	No	All units make the action with full synchronization in a single operation.	It makes automatically after completing the data capture. It can also make manually.
4.Mixed connection, mixing of No.1 to No.3	GL7000 GL2000 GL980 GL900 GL840 GL820 GL240 GL220	Way of operation or action vary by type of connection that is the No.1 to No.3. * Full synchronization can be made when the sync cable is used in the GL7000.

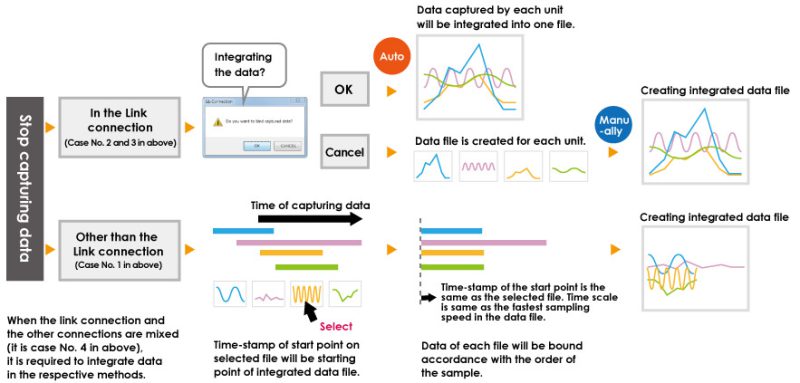

Work flow of data integration

(*1)The integrated file cannot be created when it exceeds 100 units or 100 channels (analog channel + logic channel).

(*2)Data will be integrated with using fastest sampling speed when the sampling speed in each file is different.

(*3)The data format in integrated data file is the GL7000 format even if GL series is included to capture the data.

Main function of software

The post GL Series
Connection Software Ver.2.20 first appeared on EgeRate Elektronik.

GL7-L/P Specification

(*1)Input prove (RIC-10A) is required to connect signals.

(*2)The measuring mode is set in each module (16 channels). In Logic mode, up to 7 modules (Up to 112ch.) can be attached to one main module. In Pulse mode, up to 2 modules (Up to 32ch.) can be attached to one main modules. The maximum number of module and channels are limited to up to 10 units with a mixed condition and 112 channels.

The post GL7-L/P
Logic / Pulse Module first appeared on EgeRate Elektronik.

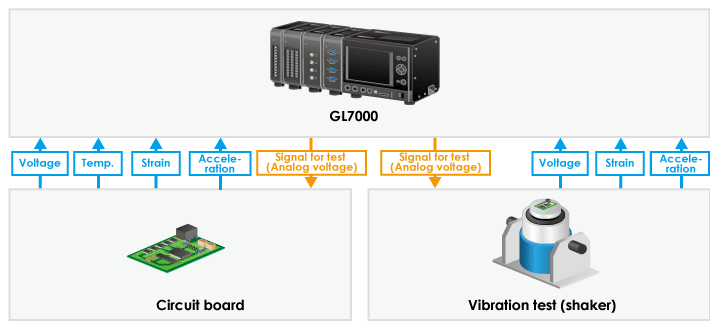

Outputting an analog voltage as a source of the saved data is able to reproduce symptoms or to make the simulation test.

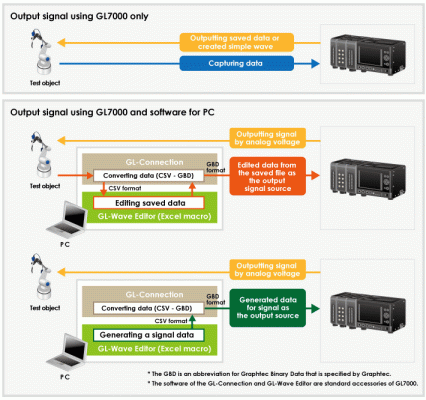

The reference signal can be created using the GL-Wave Editor (Excel macro) software, it is able to output by an analog voltage from this module

It can output the signal using the saved data as a source. The output signal is able to be created by editing the saved data file using the software. The software can also create simple waveform.

Both of signal capture and analog voltage output simultaneously

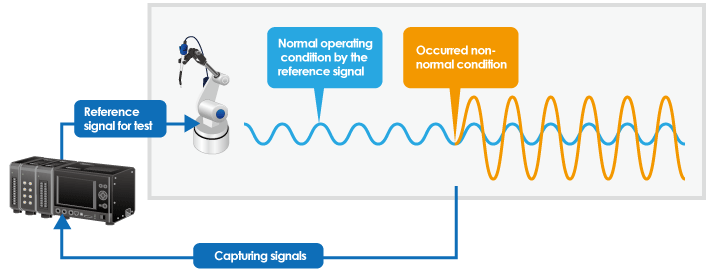

A reference signal of the test is output from this module, and signal applies to the object to be measured. Then, signal on the test object is captured at the same time by other modules. It allows to check operating condition of the object or to make a simulation test.

Application examples

GL7-DCO Specification

(*1)

It is required to create the CSV file that is the source for the arbitrary data using the GL-Wave Editor (EXCEL macro). The Microsoft EXCEL 2003 (Office 2003) or later edition is required to use the GL-Wave Editor.

(*2)

Subject to the conditions:

● Room temperature is 23oC ±5oC.

● When 30 minutes or more have elapsed after power was turned on.

The post GL7-DCO
Analog Voltage Output Module first appeared on EgeRate Elektronik.

Added a menu for sound input by piezo-based microphones on the Charge/Acceleration Module (GL7-CHA).

Sound or vibration analysis can be performed by third party software using recorded sound data.

High-precision measurement using various filters

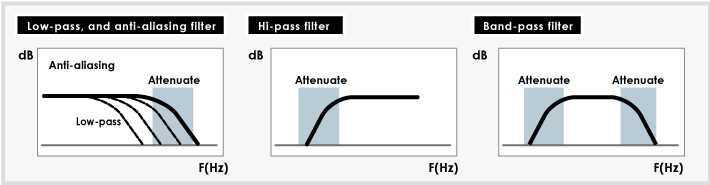

High-precision signal is able to be captured by the high-pass, low-pass, and anti-aliasing filter.

Supports a variety piezoelectric type sensors

This module supports a variety type of piezoelectric sensors including an acceleration sensor, and supports direct connection of the sensor.

The charge output type and voltage output (IEPE) type are available in the piezoelectric type sensor for measuring a wide variety phenomena. Variety type of sensors are able to use by setting the sensitivity and the unit of measurement.

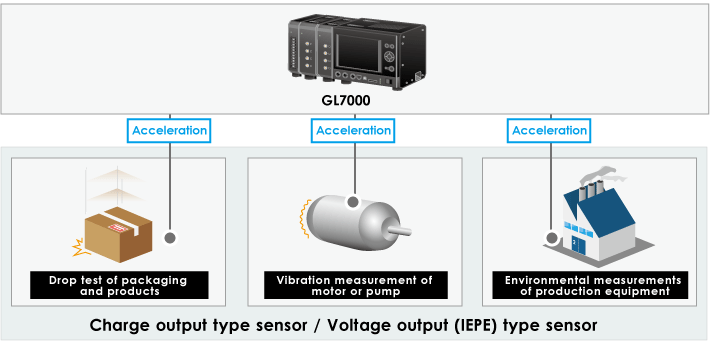

Application examples

GL7-CHA Specification

(*1)

It is required firmware version 2.0 or later.

(*2)

Subject to the conditions:
● Room temperature is 23℃ ±5℃.

● When 30 minutes or more have elapsed after power was turned on.

● Filter is set to 10 or Line.

● GND terminal is connected to ground.
Measurement accuracy of RMS is effective for input voltage of 5 to 100% in each measurement range.

Settings of the range and charge sensitivity (○:Available)

<IEPE/IEPE-RMS Input>

Settings of the range and voltage sensitivity (○:Available)

<Microphone input>

Range and voltage sensitivity settings

The post GL7-CHA
Charge Module first appeared on EgeRate Elektronik.

It is able to have high-precision measurement using various filters as low-pass, and anti-aliasing filter.

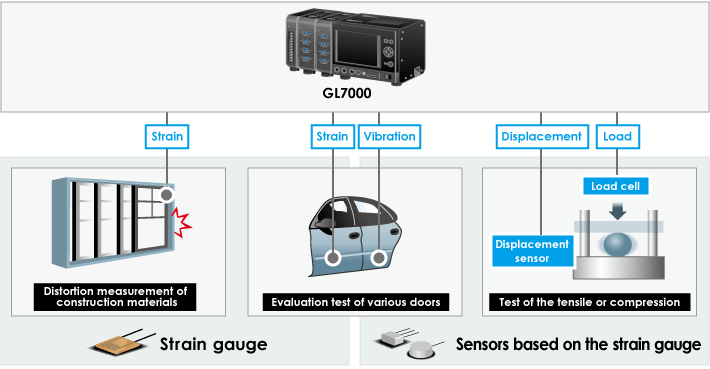

Application examples

GL7-DCB specification

(*1)

Subject to the conditions:
● Room temperature is 23℃ ±5℃.

● When 30 minutes or more have elapsed after power was turned on.

● Filter is set to 10 or Line.

● GND terminal is connected to ground.

(*2)

● Remote sensing is not available when a NDIS connector is used.

● When a bridge box is used, the connection needs to be 4-wire or 6-wire full bridge. When connecting with a Half bridge (Opposite side), an additional bridge box is required.

● Bridge excitation: Constant current drives a strain gauge type sensor or a 4-wire full bridge.

● The shunt calibration is available only when the connection is using a 3-wire, 4-wire quarter bridge, 5-wire full bridge, or 6-wire full bridge.

The post GL7-DCB
DC Strain Module first appeared on EgeRate Elektronik.
