FSA
Force-Displacement Measuring System

capacity max. 5000 N
Measuring unit for force-displacement measurement and force-time measurement, as well as generating force-displacement and force-time graphs with software Force Recorder Professional

For compression and tension measurement

Combination of different test stands and force gauges for measuring system FSA is possible

Special Features

Force gauge with high sampling rate of 2000 measurement/s for fast data acquisition of peak values.
Free combination of force gauge with different measuring ranges and test stands depending on purpose.
Force-displacement and force-time graphs can be displayed in real time by USB interface and software Force Recorder Professional.
With the force-displacement measuring system FSA is data Comparison possible by displaying five graphs.

REQUIRED MODULS

Motorized vertical test stand

Motorized test stands MX2-500N, MX2-1000N, MX2-2500N, MX2-5000N, EMX-500N and EMX-1000N and with Code FA are applicable for force-displacement measuring system FSA.

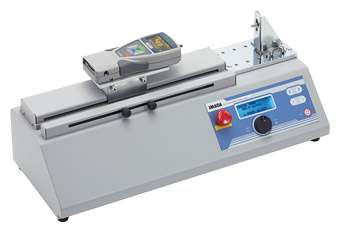

Motorized horizontal test stand

Motorized test stands MH2-500N and MH2-2500N with Code FA are applicable for force-displacement measuring system FSA.

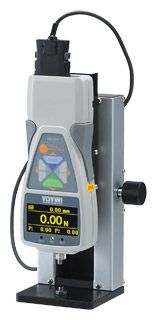

Manual vertical test stand

The Manual test stand MSL-50N is a low-cost alternative for the motorized test stands.

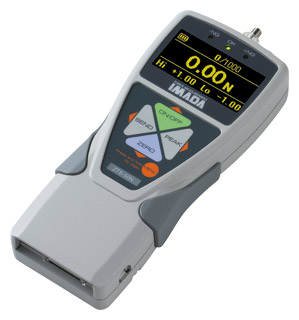

Force Gauge ZTA series

Force gauge ZTA series for compression and tension forces with measuring range 2 N up to 2500 N is required.

Force Recorder Professional

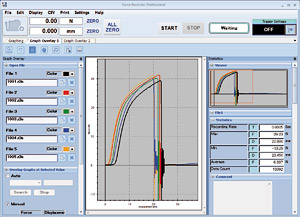

Software for data acquisition by USB output to generate force-displacement or force-time graphs.

OTHER MODELS

Test Stand	MSL-50N	MX2-500N	MX2-1000N	MX2-2500N	MX2-5000N	EMX-500N	EMX-1000N	MH2-500N	MH2-2500N
Capacity	50 N	500 N	1000 N	2500 N	5000 N	500 N	1000 N	500 N	1000 N
Model as FSA	MSL	0.5K2	1K2	2.5K2	5K2	0.5KE	1KE	0.5HK2	2.5HK2
Travel distance	80 mm	235 mm	300 mm	320 mm	380 mm	295 mm	320mm	245mm	340mm

Test Stand
MSL-50N MX2-500N MX2-1000N MX2-2500N MX2-5000N EMX-500N EMX-1000N MH2-500N MH2-2500N
Capacity 50 N 500 N 1000 N 2500 N 5000 N 500 N 1000 N 500 N 1000 N
Model as FSA MSL 0.5K2 1K2 2.5K2 5K2 0.5KE 1KE 0.5HK2 2.5HK2
Travel distance
80 mm 235 mm 300 mm 320 mm 380 mm 295 mm 320mm 245mm 340mm

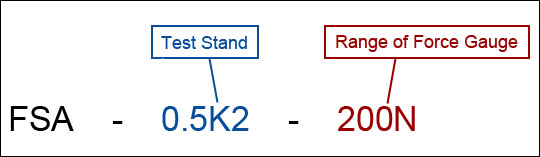

The correct order number for force-displacement measuring system FSA must be specified in this way:

DELIVERY INCLUDES

Test stand, force gauge, software force recorder professional, connecting cables and operating instruction in English only
